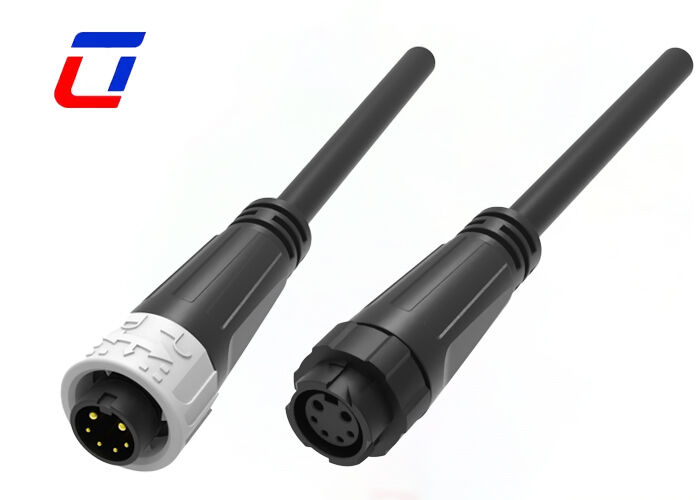

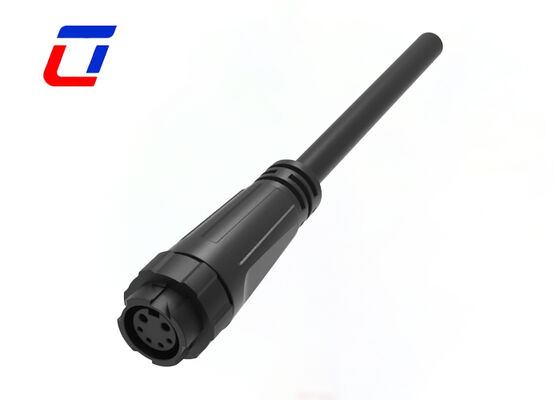

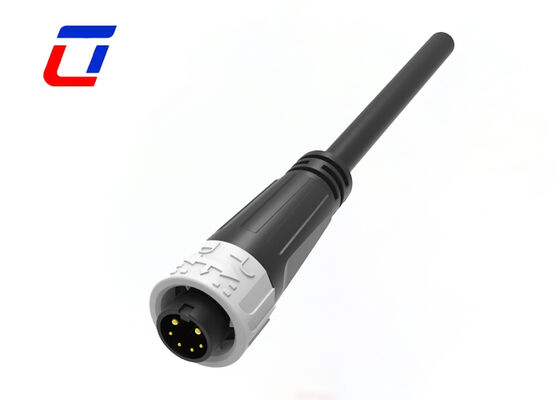

Name: 2+4 Pin Waterproof LED Connectors M16 300V IP67 Cable To Cable Connectors Quick Lock
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof LED Connector

2+4 Pin Waterproof LED Connectors M16 300V IP67 Cable To Cable Connectors Quick Lock

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Type:	Waterproof Connector	Pin:	2+4pin
Material:	PA66,UL94-V0	Waterproof Level:	IP67
Operating Temperature:	-40℃-+105℃	Contact Material:	Brass Gold-Plated
Highlight:	waterproof LED connector M16 , IP67 cable to cable connector , quick lock LED connector 300V

2+4 Pin Waterproof LED Connectors M16 300V IP67 Cable To Cable Connectors

Product Overview

M16 2+4 Pin Wire To Wire Connector ODM For Industrial Power And Signal

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Features

2+4 Pin Hybrid Power & Signal Design
Supports both power and signal transmission, ideal for LED strips and lighting projects with one connector solution.
M16 Compact Waterproof Structure
Standard M16 size with small body, perfect for dense LED lighting installation, saving space and improving appearance.
IP67 High Protection Rating
Fully sealed waterproof and dustproof, reliable in outdoor, rainy and humid environments to prevent short circuits.
Quick Lock & Self-Locking Design
Thread-free quick locking, tool-free plug-and-play, vibration-resistant and secure connection for faster installation.
300V Safe Voltage Rating
Suitable for LED drivers and lighting equipment with excellent insulation, stable for long-term use.

Technical Specifications

Electrical Parameters
Number of Poles	2+4 pin waterproof connector
Current Rating	15+5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q1: Who is responsible for customs clearance? Do you provide necessary documents?

A: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q3: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
