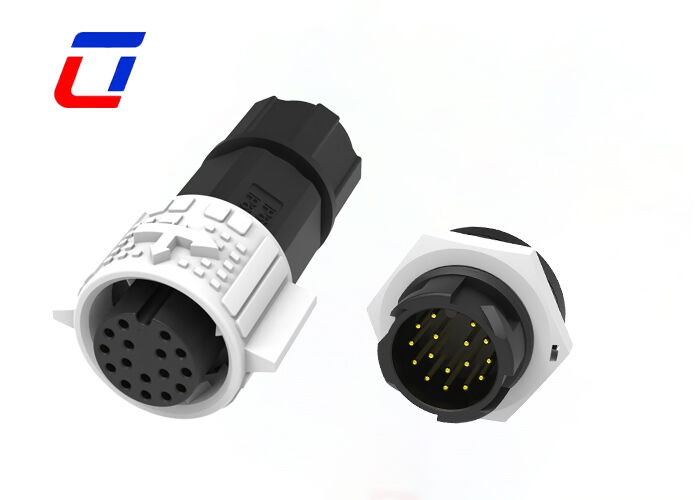

Name: M19 300V 16 Pin Male Female Connector Waterproof Quick Connect Board Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

M19 300V 16 Pin Male Female Connector Waterproof Quick Connect Board Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Pin:	16Pin
Material:	Nylon	Operating Temperature:	-40℃-+105℃
Type:	Wire To Wire Connector	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof board connector , 300V quick connect plug , 16 pin male female connector

M19 300V 16 Pin Waterproof Quick Connect Board Connectors

M19 16 Pin Outdoor Waterproof Cable Connector with IP67 rating and 300V capacity. Professional male-female quick connect design for efficient board-mounted applications.

Product Overview

16 Pin Multi-Channel Design: Provides sufficient channels for power and signal transmission, perfectly adapting to board connection wiring requirements
300V Rated Voltage: Ensures safe and stable power supply for various industrial board-mounted electrical equipment
Male & Female Quick Connect: Standard butt-joint design with quick connection structure for easy plug and unplug operation
IP67 Waterproof Performance: Effective protection against moisture, dust, and rain for stable operation in harsh environments
Board Connector Specialization: Compact board-mounted design for easy assembly with circuit boards and strong compatibility

Key Features

Excellent waterproof and dustproof performance with IP67 protection level
Quick lock connection method for efficient installation and disassembly
Wide adaptability to outdoor application scenarios
Push lock quick release system
Multiple pin configurations available: 2Pin-18Pin for power and signal applications
Field assembly version with wire to wire and wire to board options
Cable assembly service supported
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

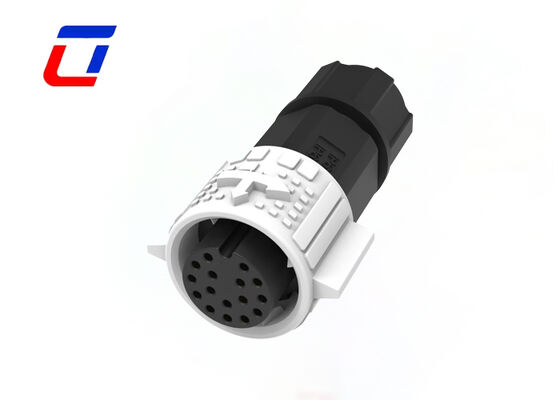

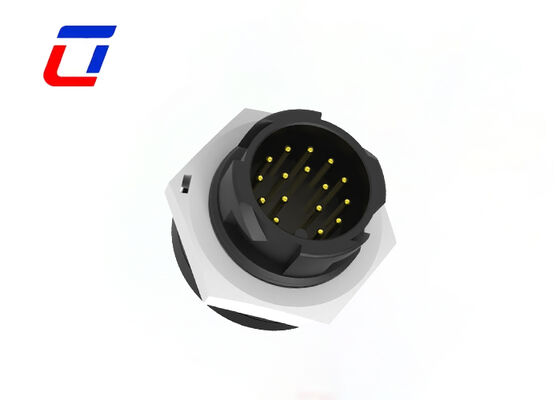

Product Images

Frequently Asked Questions

Are you a factory or trading company?

We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

How can I get samples?

It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
