M19 20A Good Quality Multi Pin Connectors Waterproof 2+20 Pin For Automotive

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Material:	PA66&Copper Alloy	Rated Voltage:	300V
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Color:	White Blue Red Black Yellow	Connecting Mode:	Push Lock
Highlight:	M19 waterproof multi pin connector , 20A automotive electrical connector , 2+20 pin waterproof socket

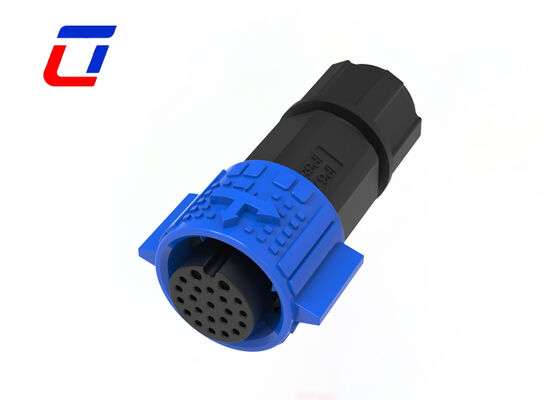

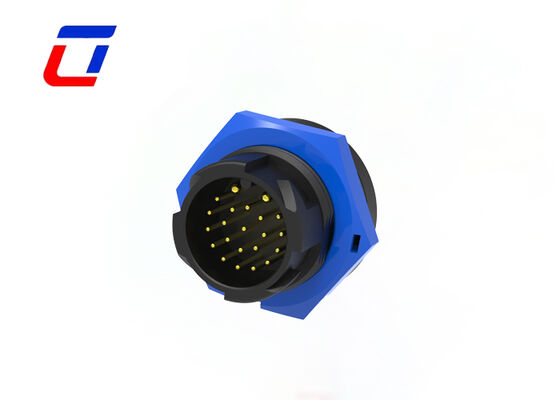

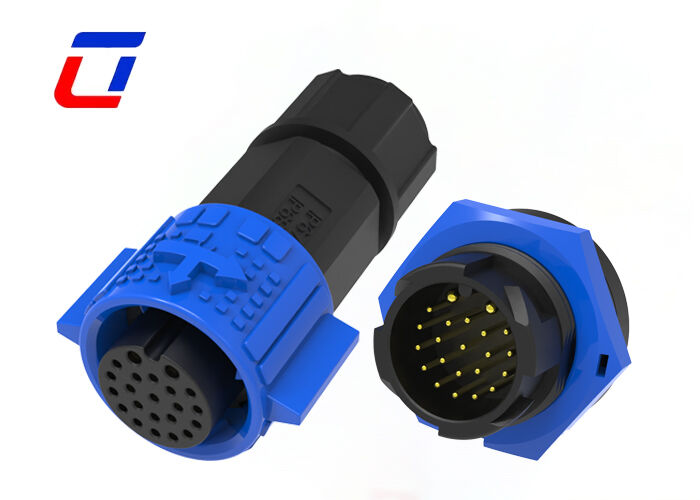

M19 20A Multi-Pin Waterproof Connectors - 2+20 Pin for Automotive Applications

Waterproof multi-pin connectors featuring 2+20 pin configuration with separate power and signal channels. M19 circular connectors provide reliable connectivity for demanding automotive and industrial environments.

Key Features

Dual Current Design: 15A+5A configuration supports both high-power supply and low-power signal transmission with stable contact and efficient docking
IP67 Waterproof Protection: Integrated sealed housing and rubber ring provide complete protection against rain, splash, dust, and temporary immersion
Secure Connection System: Precise snap-in locking structure ensures firm, vibration-resistant connection that's easy to unlock without tools
Broad Compatibility: Ideal for dual-current and multi-channel applications across various industrial sectors

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines & Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery
Inventory Product Coding

Electrical Parameters

Parameter	Specification
Number of Poles	2+20 pin waterproof connector
Current Rating	15A+5A
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How can I get samples?

A: We are pleased to offer samples, with freight costs covered by the customer. Please provide your courier account number and detailed address for immediate shipment.

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
