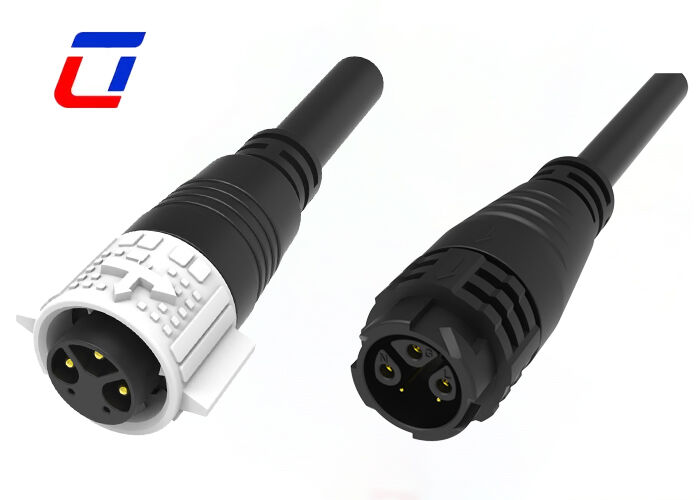

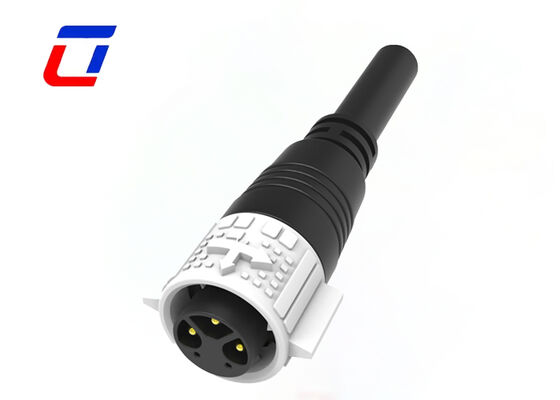

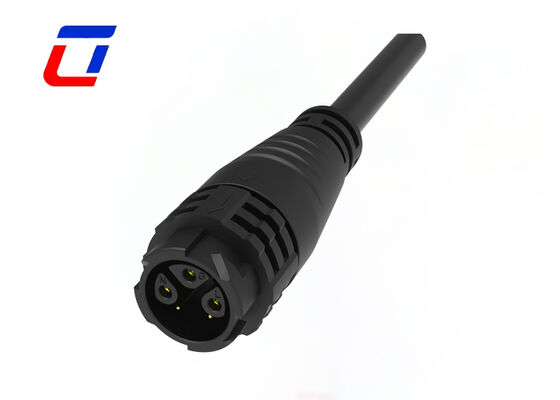

M19 Plastic Male Female Connectors 3+2 Pin Cable Power And Signal Connector
Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector
Product Overview
3+2 Pin Mixed Structure
Combines 3 power pins and 2 signal pins, supports power and signal transmission at the same time.
15+5A Dual Current Rating
Supports 15A for power supply and 5A for signal transmission, suitable for mixed transmission scenarios.
IP67 Waterproof Grade
IP67 waterproof and dustproof, stable and reliable in humid, outdoor and harsh industrial environments.
M19 Standard Size
Standard M19 circular design, good compatibility, easy installation and replacement.
Push Lock Mechanism
Push-lock quick connection structure, no tools needed, fast and stable connection.
Wire-to-Wire Connector
Professional wire-to-wire connection design, widely used in power and signal transmission equipment.
Main Features
Push lock quick release systemMultiple core options: 2Pin, 3Pin, 4Pin, 5Pin for PowerPower signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20PinSignal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18PinField assembly version with wire-to-wire and wire-to-board options20A current rating for continuous operationCable assembly service and OEM/ODM support available
Technical Specifications
| Specification Category |
Details |
| Connector System |
Cable-to-Cable |
| Sealable |
Yes |
| Connector & Contact Terminates To |
Wire & Cable |
| Circular Connector Type |
Plug, Receptacle |
| Shell Type |
Plastic Shell |
| Product Type |
Connector Kit |
| Number of Poles |
3+2 |
| Current Rating |
15A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
2500VAC @ 60 s |
| Shell Material |
PA66 |
| Insulation Material |
Low Fire Hazard Thermoplastic |
| Hermetically Sealed |
Yes |
| Environmental Protection |
IP67 (Dust Level 6) |
| Operating Temperature |
-40°C to 105°C |
| Durability Rating |
250-251 Cycles |
| UL Flammability Rating |
UL 94V-0 |
Application Industries
Communications EquipmentProduct Coding MachinesInventory Product Coding SystemsInkjet SystemsSolar SystemsIndustrial Inkjet EquipmentElectric Power EquipmentLaboratory Forensic & Pathology EquipmentHeavy Machinery
Production Dimension
Technical Details
