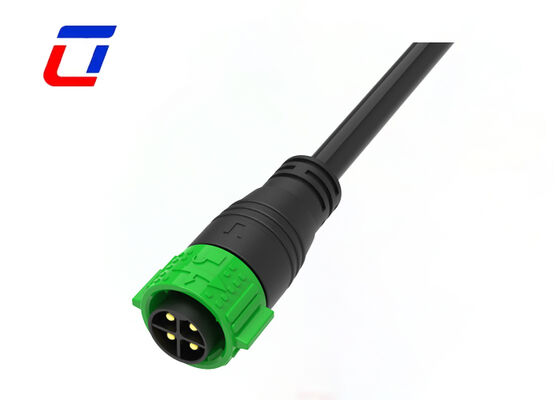

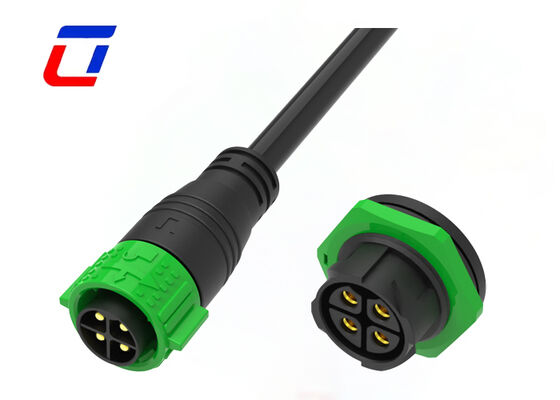

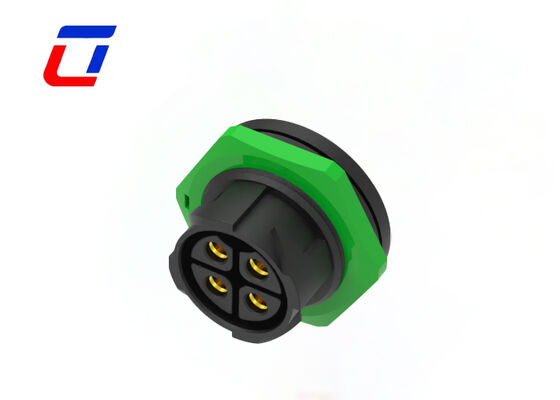

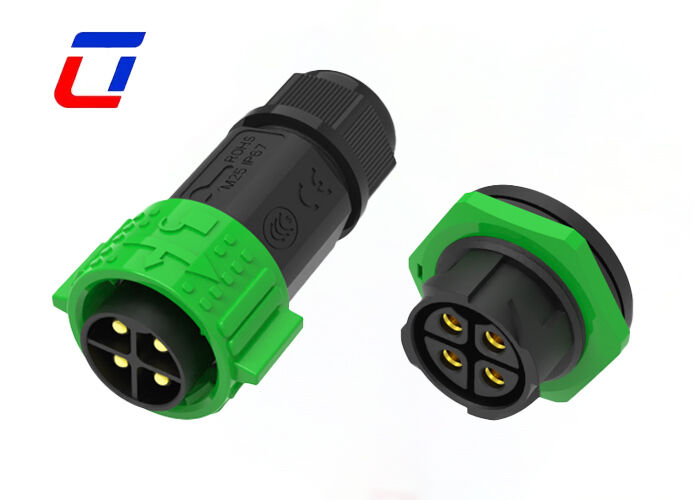

Name: 50A M25 Power Waterproof Connector 4 Pin Reliable Waterproof Male Female Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Cable Connector

50A M25 Power Waterproof Connector 4 Pin Reliable Waterproof Male Female Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	4Pin	Current:	50A
Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring
Highlight:	50A M25 waterproof connector , 4 pin waterproof cable connector , male female waterproof power connector

50A Waterproof Wire Connectors M25 4 Pin Wire To Board Power Connector

Waterproof Electrical 600V M25 4 Pin Push Lock Connectors

Quick Details of IP67 Waterproof Connector

High Voltage Bearing Capacity (600V): Designed for 600V electrical applications, with excellent electrical insulation performance and voltage resistance, which can stably bear the working voltage of 500V, effectively avoiding short circuit, leakage and other safety hazards caused by voltage overload, and suitable for medium and high voltage electrical connection scenarios.
PA66 High-Strength Material: Made of high-quality PA66 engineering plastic, which has outstanding mechanical strength, impact resistance and wear resistance. It also features good corrosion resistance, high temperature resistance (operating temperature range: -40℃~105℃) and flame retardancy, ensuring long-term stable operation in harsh industrial and outdoor environments.
4 Pin Precise Connection Design: Equipped with 4-pin core configuration, with precise pin spacing and tight contact, ensuring low contact resistance and stable electrical transmission. The 4-pin design is compact and reasonable, which can meet the basic needs of medium and high voltage electrical signal and power transmission, and is compatible with most 4-pin matching plug sockets.
Push Lock Connection Mechanism: Adopts push-type locking design, which is different from traditional quick lock. It can realize firm connection with a light push, and disassembly only needs a simple pull, no additional tools required. The locking structure is stable, anti-loosening and anti-vibration, suitable for occasions that require frequent plugging and unplugging.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector suitable for up to 50A continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

How can I get samples?

It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
