300V M25 3+9 Pin Waterproof Connector Push Pull Multi Pin ODM Connector Types

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	15A	Number Of Pins:	3+9 PIN
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Material:	Nylon	Flame-resistant Rating:	UL94-V0
Highlight:	300V waterproof push pull connector , M25 multi pin connector , 3+9 pin waterproof socket

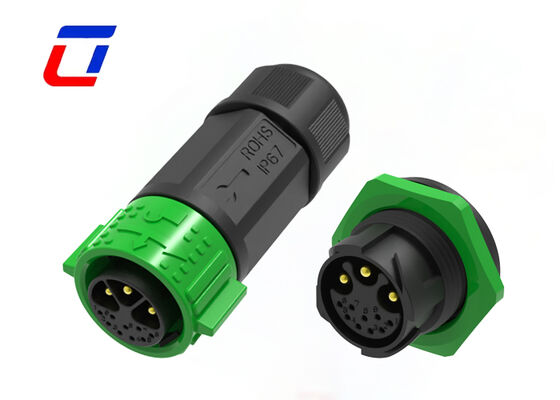

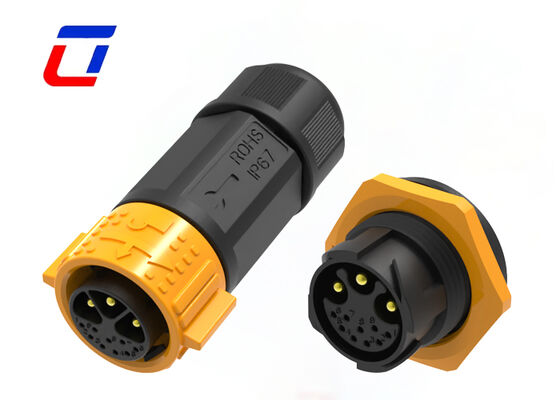

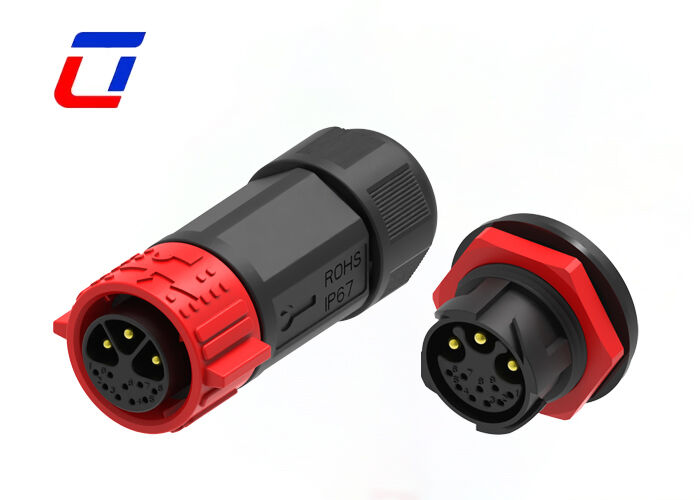

300V M25 3+9 Pin Waterproof Connector

Push Pull Multi Pin ODM Connector Types

Product Overview

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Features

Wire-To-Board Connection Design

Tailored to core application requirements with secure connection and minimal signal transmission loss, providing reliable signal and power interaction between wires and boards both inside and outside equipment.

Versatile Application Scenarios

Suitable for equipment across multiple fields including industrial automation control equipment, outdoor lighting systems, security monitoring devices, medical instruments, and communication terminals.

IP67 Protection Rating

Compatible with complex and severe environments with full dustproof and short-term water submersion protection capabilities, ensuring stable operation in outdoor and industrial workshop conditions.

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+9
Number of Signal Positions	9
Contacts Preloaded	Yes
Operating Voltage (VAC)	300V max.
Operating Voltage (VDC)	300V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Contact Current Rating (Max)	15A max.
Circular Connector Contact Type	Pin-Socket
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range	-40°C to 105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components may not function properly below their rated voltage.

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; Air freight: 7-15 working days; Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
