Name: Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Plug Socket

Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	50A	Rated Voltage:	600V
Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Highlight:	M25 waterproof 4 pin connector , 600V dustproof plug socket , plastic waterproof connector with warranty

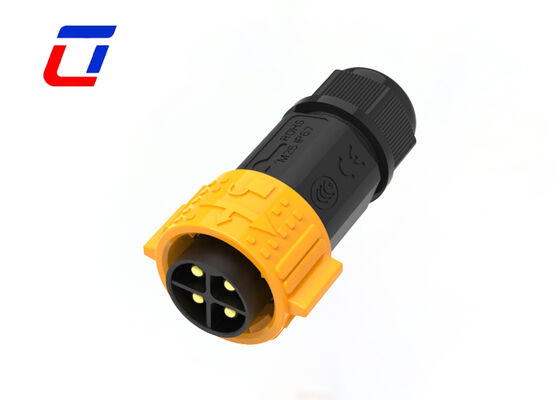

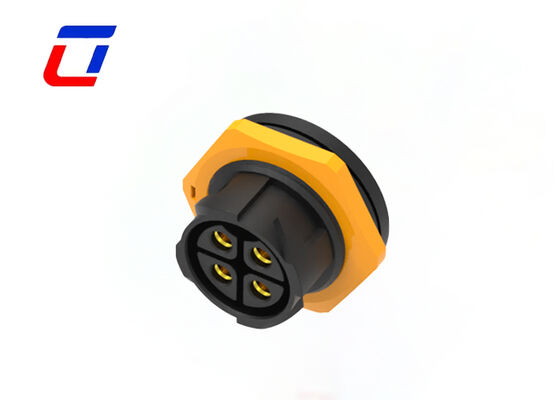

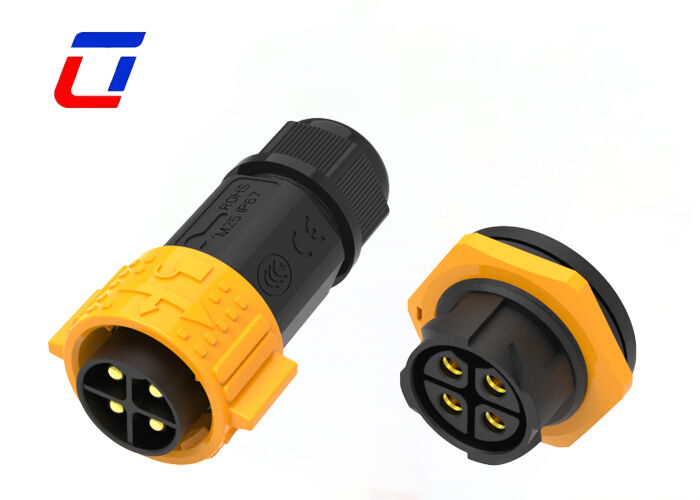

Plastic M25 Waterproof 600V Connector Dustproof 4 Pin Plug And Socket Connector

PA66 M25 4 Pin Power Connector - OEM Push Pull Cable To Board Connectors with IP67 Waterproof Rating

Product Overview

This plastic M25 power connector is specifically designed for power transmission applications. Featuring a 4-pin plug-and-socket structure with a rated current of 50A and voltage of 600V, it delivers exceptional waterproof and dustproof performance. The connector effectively resists rainwater, dust, and other contaminants, ensuring stable and safe power supply in demanding environments.

Compliant with M25 standard interface specifications, the connector utilizes high-quality PA66 plastic housing with excellent insulation properties and durability for long-term reliability. The precise 4-pin layout ensures efficient, low-loss power transmission, making it ideal for industrial equipment, outdoor high-power devices, and applications requiring high-current, high-voltage power connections.

Key Features

Push lock quick release system for easy connection and disconnection
Multiple core configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin
Field assembly versions with both wire-to-wire and wire-to-board options
High current rated waterproof connector suitable for up to 50A continuous operation
Cable assembly service supported with custom configuration options
OEM/ODM customization services available

Electrical Specifications

Number of Poles	4Pin waterproof connector
Current Rating	50A maximum
Voltage Rating	600VAC maximum
Durability Voltage	2500VAC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	600VAC maximum
Current Rating	30A maximum
Minimum Wire Size OD	6.5mm ~ 10mm
Maximum Wire Size OD	10.5mm ~ 18mm
Maximum Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.
