Name: M25 3+13 Pin Waterproof Connectors For Landscape Lighting Outdoor Cable Connector Wholesalers
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Plug Socket

M25 3+13 Pin Waterproof Connectors For Landscape Lighting Outdoor Cable Connector Wholesalers

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+13PIN	Current:	15A+5A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Connection:	Wire To Board	Sealing Material:	Sealing Gasket
Highlight:	M25 waterproof lighting connectors , 3+13 pin outdoor cable connector , waterproof plug socket for landscape lighting

M25 3+13 Pin Waterproof Connectors For Landscape Lighting Outdoor Cable Connector

Product Overview

M25 3+13 Pin IP67 Waterproof Connector Quick Release - Professional 3+13 Pin Plug Socket Waterproof M25 Data and Power Connector with IP67 rating and quick locking mechanism.

Key Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Description

Our M25 3+13 Pin Waterproof Connectors are professional accessories for outdoor landscape lighting, tailored to wholesalers' needs. Integrating reliable waterproof performance, stable transmission and easy installation, they are ideal for garden, pathway, and architectural landscape lighting projects.

Featuring a standard M25 interface and 3+13 pin design, the connector separates power (3 pins) and signal (13 pins) transmission to avoid interference, suitable for dimmable, color-changing and smart landscape lighting systems. Its versatility makes it widely applicable for various project scenarios, favored by wholesalers.

With IP67+ waterproof rating, high-quality nylon PA66 shell and silicone O-rings, it effectively resists rain, dust and harsh outdoor environments, extending lighting service life and reducing after-sales costs.

Adopting gold-plated copper contacts, it supports 20A rated current and 300V rated voltage, compatible with 0.5-2.5mm² cables. Equipped with quick-lock structure for easy installation, it has a mechanical life of ≥5000 mating cycles.

For wholesalers, we offer CE/ROHS certified products, flexible wholesale policies (negotiable MOQ, bulk discounts), customization services, standard export packaging and efficient after-sales support to boost your market competitiveness.

Application Industries

Communications Application, product coding machines, inventory product coding, inkjet systems, Solar System, industrial inkjet equipment, Electric power equipment, Laboratory forensic & pathology equipment, Communications equipment, Heavy machinery

Technical Specifications

Specification	Details
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+13
Number of Signal Positions	13
Contacts Preloaded	Yes
Operating Voltage (VAC)	300V max.
Operating Voltage (VDC)	300V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

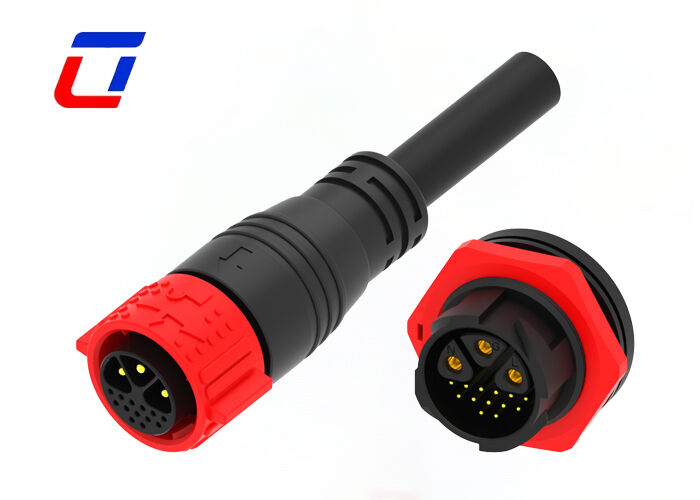

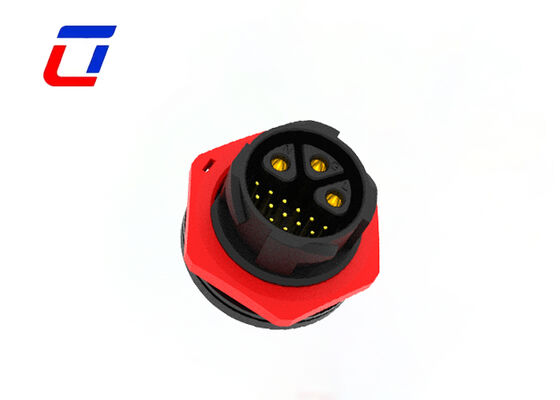

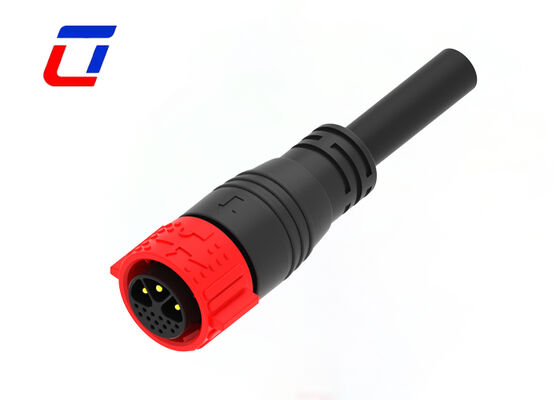

Product Images

Frequently Asked Questions

Q1: How can I get samples?

A1: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q2: Who is responsible for customs clearance? Do you provide necessary documents?

A2: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q3: Can I have custom label?

A3: Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
