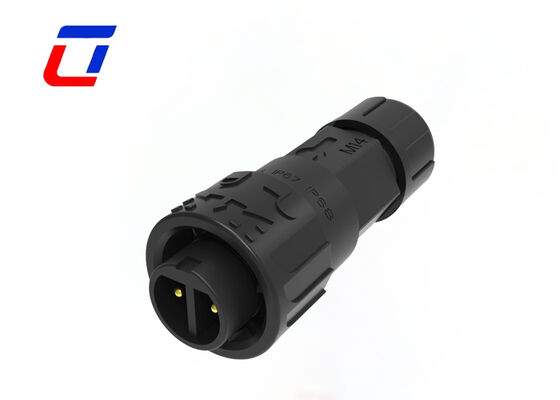

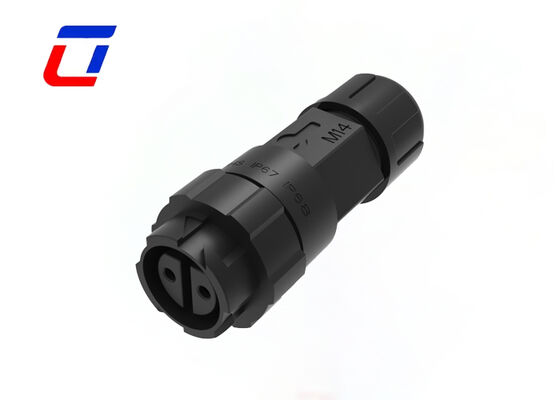

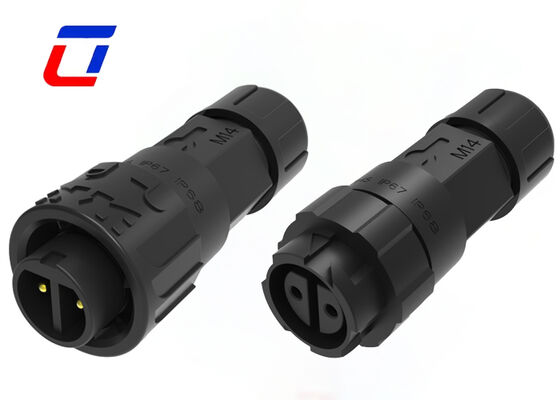

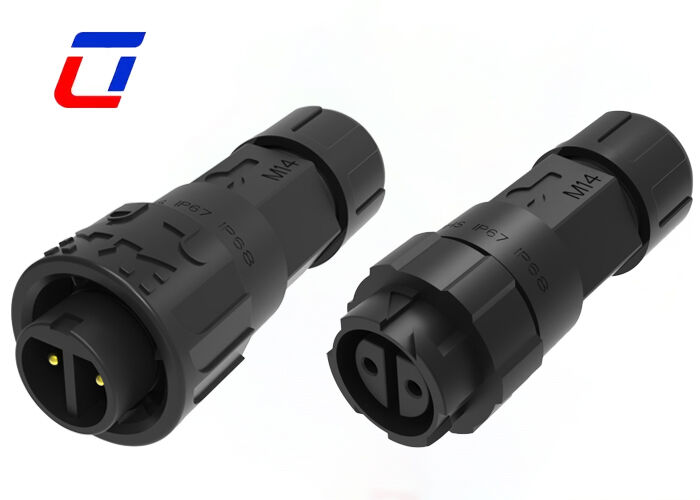

2 Pin Circular Power Cable Connector M16 Waterproof Quick Disconnect IP67 Connectors
Industrial Waterproof Circular Connector
This 2-pin circular power connector features a male-to-female plug-in design optimized for wire-to-wire connections. With a 300V rated voltage, it provides stable power supply for small to medium-power equipment. The M16 interface standard ensures precise pin alignment, smooth plugging, and reliable power transmission.
Professional Waterproof Performance
Equipped with high-standard waterproof construction, the integrated shell and cable sealing with custom waterproof rubber ring effectively resist rain, sand, oil, and humidity. Ideal for outdoor or challenging environments, it reduces faults caused by environmental factors.
Wire-to-Wire Connection Advantages
Designed specifically for wire-to-wire applications, the male and female plugs securely fix to cables, resisting pulling and vibration. The tool-free design enables convenient on-site plugging for high-frequency operations including temporary docking, maintenance, and cable extensions.
300V Adaptive Materials & Safety
Constructed with high-conductivity oxygen-free copper conductors featuring anti-oxidation tinning to reduce heat and loss during 300V transmission. The high-insulation engineering plastic shell offers excellent aging and impact resistance while isolating electromagnetic interference and preventing leakage risks.
Application Scenarios
Widely used in industrial control, security monitoring, smart home systems, new energy auxiliary equipment, and instrumentation. Particularly suitable for small to medium-power devices requiring convenience and waterproofing, such as outdoor sensors and portable instruments.
Main Features
- Push lock quick easy release system
- Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
- Field-installable variants for wire-to-wire and wire-to-board configurations
- High-current-rated waterproof connector suitable for prolonged operation up to 10A
- Cable assembly services provided with customization options
- OEM/ODM partnerships available
Electrical Parameters
| Number of Poles |
2Pin waterproof connector |
| Current Rating |
10A max |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application Industries
- Communications Applications
- Product Coding Machines
- Inventory Product Coding
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Production Dimension
More Technical Details
Frequently Asked Questions
How can I get samples?
We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.
Who is responsible for customs clearance? Do you provide necessary documents?
We provide complete customs clearance documents including commercial invoice, packing list, bill of lading, and certification reports. Customs clearance fees and duties are the buyer's responsibility under EXW/FOB terms. We can assist with document preparation as needed.
What shipping methods do you offer? How long is the delivery time?
We provide multiple shipping options: Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; Air freight: 7-15 working days; Sea freight: 20-45 working days. Delivery times vary by destination and shipping method.
