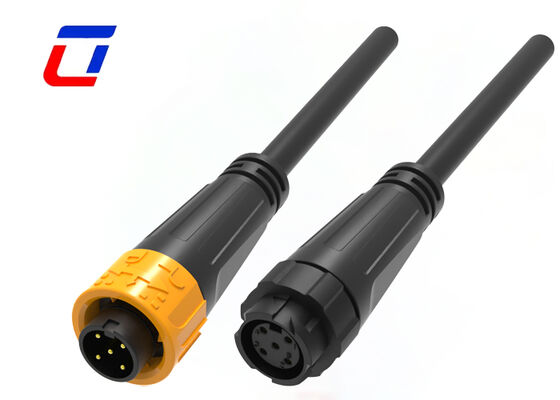

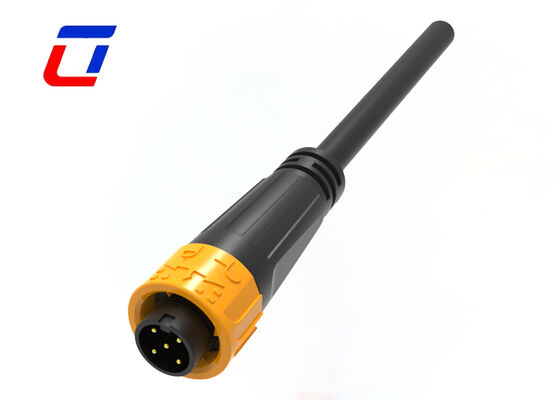

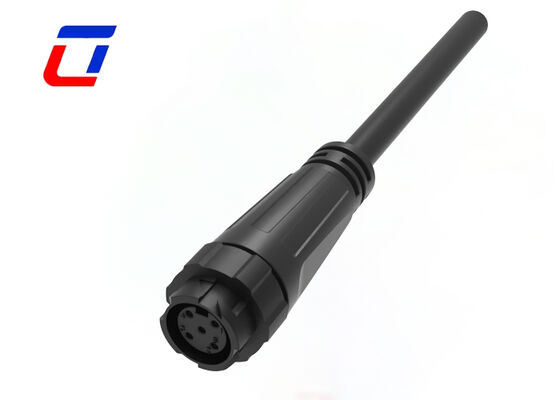

Name: M16 Waterproof 300V Connector 5 Pin Quick Automotive Low Power Connector Solutions
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Cable Connector

M16 Waterproof 300V Connector 5 Pin Quick Automotive Low Power Connector Solutions

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	5Pin	Current:	8A Max. For Power
Rated Voltage:	125V	Waterproof Rating:	IP67
Operating Temperature:	-40℃~+105℃	Contact Material:	Brass Gold-Plated
Highlight:	M16 waterproof 5 pin connector , 300V automotive low power connector , quick waterproof cable connector

M16 Waterproof 300V Connector 5 Pin Quick Automotive Low Power Connector Solutions

M16 DC Waterproof Connector ODM Wire To Wire 5 Pin Power Quick Lock Connector. M16 5 Pin 300V Push Lock Waterproof Circular Connector IP67 For Heavy-Duty Applications. 8A 5Pin Waterproof Circular Connector, quick-release male-female plug-in design, suitable for DC power supply scenarios. The product complies with M16 standard interface, 5-pin layout adapts to DC power transmission, wire-to-wire direct connection, easy installation and stable power supply. It has a tool-free quick-release locking function, firm connection and excellent waterproof performance, and can work stably in complex environments. The main body is made of high-quality materials with good conductivity, strong insulation and aging resistance, supporting ODM customization. It is widely used in outdoor and industrial DC equipment, and is a practical and reliable DC connection accessory.

Key Features

Push-lock quick release system
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version supports both wire-to-wire and wire-to-board connections
High current rating up to 8A for continuous operation
Cable assembly service available for custom requirements
OEM/ODM services supported

Electrical Parameters

Number of Poles	5Pin waterproof connector
Current Rating	8A max
Voltage Rating	125VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

Professional Manufacturer

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q2: How many materials you can provide?

A2: There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors, and PVC/Rubber/Silicone materials for cables. We can also select materials according to your specific requirements.

Q3: What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
