Name: M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Plug Socket

M25 3+13 Pin Waterproof Cable Connector Best Push Lock Multi Pin Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+13PIN	Current:	15A+5A
Waterproof Rating:	IP67	Temperature Range:	-40℃~+105℃
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Highlight:	M25 waterproof cable connector , 3+13 pin push lock connector , multi pin waterproof plug socket

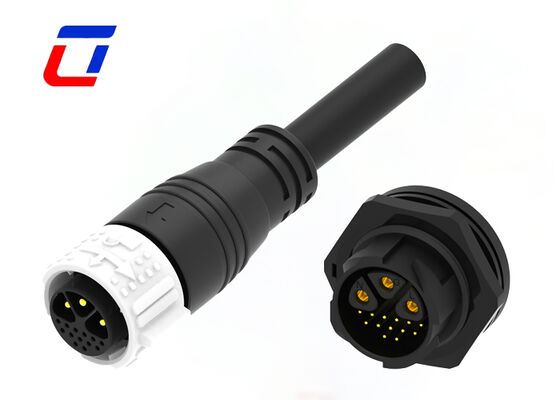

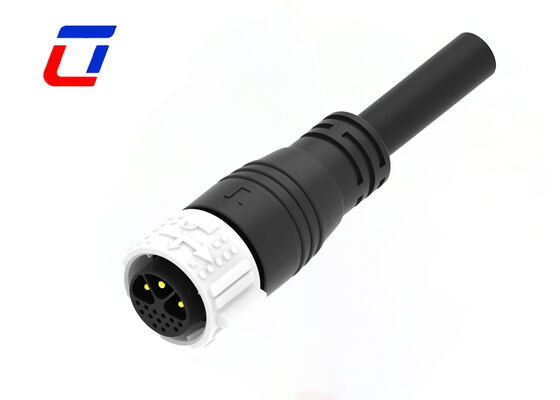

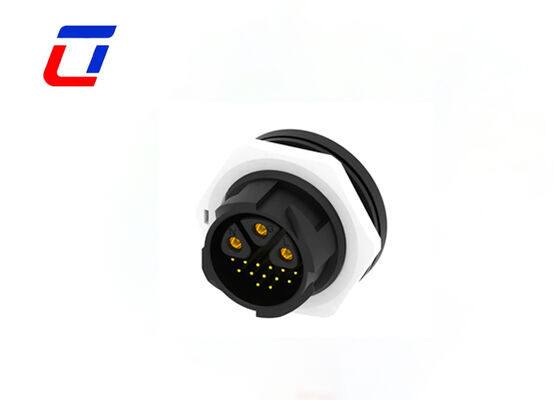

M25 3+13 Pin Waterproof Cable Connector

Advanced push lock multi-pin connectors featuring quick locking mechanism and IP67 waterproof rating for reliable data and power transmission.

Key Features

Push lock quick release system for easy connection
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, and 2+20Pin
Field assembly versions available for wire-to-wire and wire-to-board applications
Rated for 20A continuous operation
Custom cable assembly services available
OEM/ODM customization welcome

Product Overview

This M25 3+13 pin multi-pin connector features advanced gold-plated terminal technology that significantly enhances conductivity while providing superior oxidation and corrosion resistance for extended outdoor service life. Designed to meet dual power supply and signal transmission requirements for medium-power devices with electrical parameters of 30A/300V, the connector utilizes a male-female mating design compatible with panel mount configurations for flexible installation across diverse assembly scenarios.

The integrated sealed waterproof structure effectively resists rain, moisture, and dust erosion, ensuring stable operation in harsh outdoor environments. The 3+13 pin independent circuit design enables simultaneous "power + multi-signal" transmission, while the highly integrated design simplifies equipment interfaces, making it ideal for space-constrained applications.

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+13
Number of Signal Positions	13
Contacts Preloaded	Yes
Operating Voltage (VAC/VDC)	300V max.
Shell Material	PA66
Insulation Material	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Environmental Protection	Elastomer Sealed, Hermetically Sealed
Contact Current Rating	15A max.
Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment	Keyed
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature	-40°C to 105°C
IP Rating	IP67 (Water and Dust)
UL Flammability Rating	UL 94V-0

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Power Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Images

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends primarily on the connector's insulation material and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage specifications.

How do I place an order? What is the process?

The order process is simple: 1) Confirm product details and receive a proforma invoice (PI); 2) Make the down payment as agreed; 3) We begin production and provide progress updates; 4) Pay the balance before shipment; 5) We arrange delivery and provide tracking information.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (such as FCC, UL) can be provided upon request based on your target market requirements.
