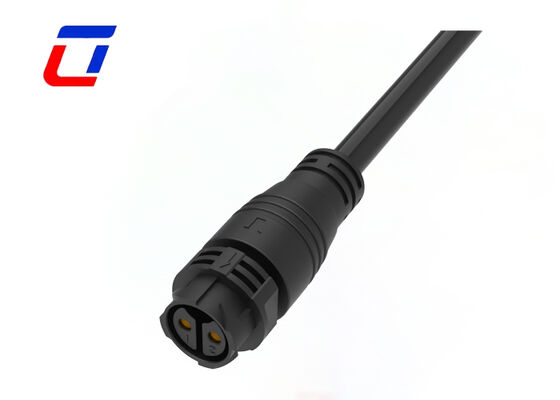

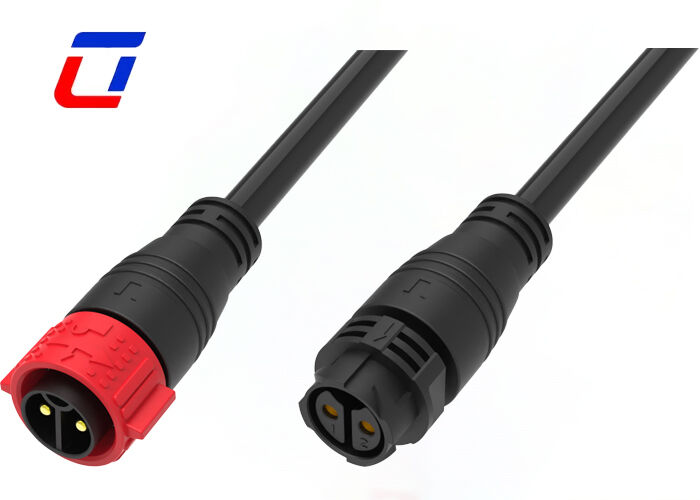

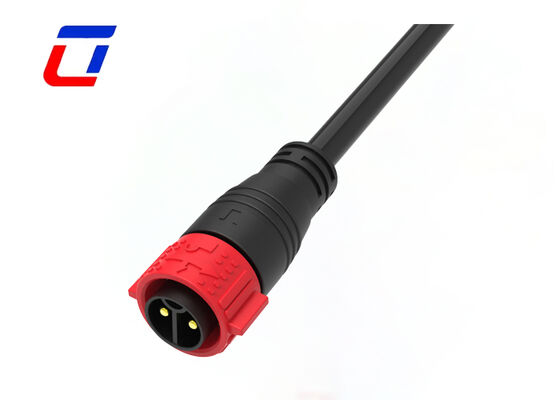

M25 IP67 Waterproof 2 Pin Connector Push Lock 50A Power Cable Connectors
M25 2 Pin Waterproof DC Power Connector 50A Male To Female Connectors designed for reliable power transmission in demanding environments.
Main Features
- Push lock quick release system for easy operation
- Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
- Field assembly options: wire to wire and wire to board configurations
- High current rating up to 50A for continuous operation
- Cable assembly service and customization available
- OEM/ODM services welcome
Application Industries
Communications equipment, product coding machines, inventory product coding systems, inkjet systems, solar power systems, industrial inkjet equipment, electric power equipment, laboratory forensic & pathology equipment, and heavy machinery.
Product Overview
Designed specifically for high-current DC power supply scenarios, the M25 2 Pin Waterproof DC Power Connector 50A (Male to Female) adapts to DC power supply systems with powerful performance. Featuring excellent waterproof capability and stable conductivity, it serves as a reliable power supply connection solution for outdoor and harsh environment equipment.
Complying with standard M25 thread specification, the 2-pin core accurately docks with circuit interfaces. The male-female quick-connect design balances operational convenience and connection firmness, enabling easy and fast plugging. The 50A high rated current covers power supply needs for medium and high-power equipment including new energy vehicle charging, outdoor communication base stations, industrial automation equipment, marine equipment and solar photovoltaic systems.
The shell is constructed from high-quality weather-resistant PVC material with excellent aging resistance and corrosion resistance, capable of withstanding long-term outdoor exposure and moisture erosion. The internal pin core utilizes high-purity brass gold-plating technology, reducing contact resistance and heat loss during current transmission while enhancing oxidation resistance for extended product service life.
With a waterproof grade of IP67 or above and threaded locking structure, it provides comprehensive protection against harsh environments including rainwater, dust and oil stains. The connector maintains stable operation in humid, dusty or short-term water immersion scenarios, ensuring continuous equipment performance in complex environments.
Electrical Parameters
| Number of Poles |
2Pin waterproof connector |
| Current Rating |
50A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
2500VAC @ 60 s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max Cable Cross Section Area |
0.5mm² ~ 6.0mm² |
Production Dimension
Additional Technical Details
Frequently Asked Questions
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Do you support product customization?
Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.
How do I place an order? What is the process?
The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
