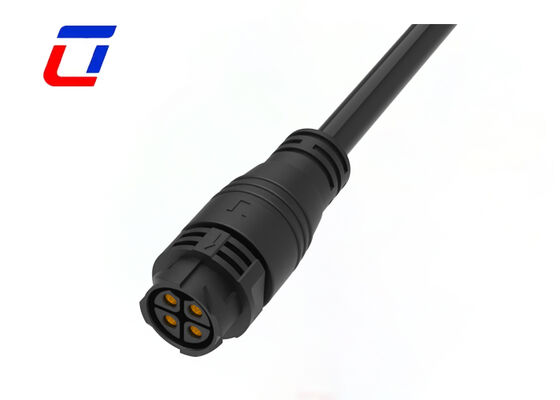

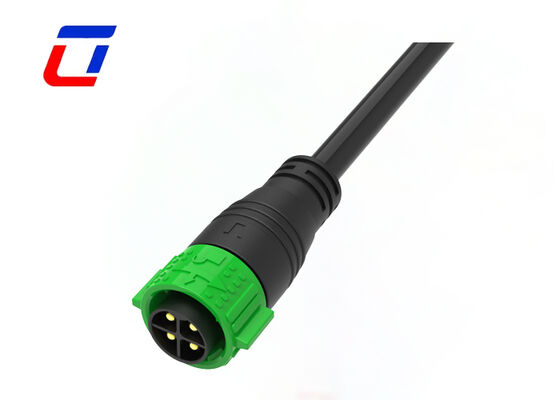

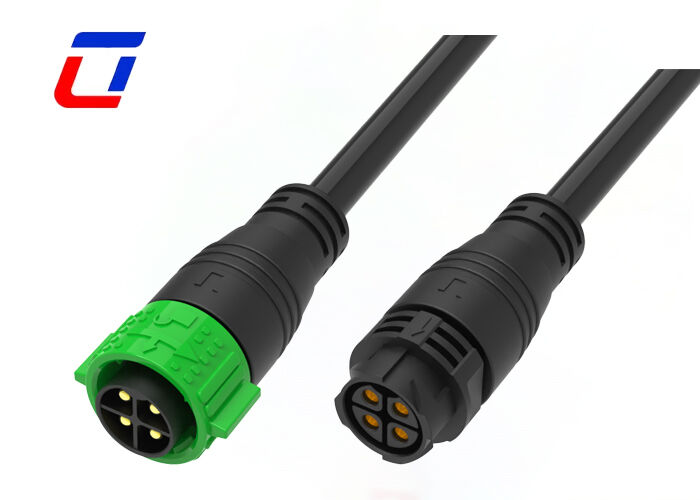

Name: 50A Waterproof Landscape Wire Connectors M25 4 Pin Wire To Wire Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Cable Connector

50A Waterproof Landscape Wire Connectors M25 4 Pin Wire To Wire Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	4Pin	Current:	50A
Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Sealing Material:	Waterproof O-Ring
Highlight:	50A waterproof wire connector , M25 4 pin power connector , waterproof cable connector with warranty

50A Waterproof Landscape Wire Connectors M25 4 Pin Wire To Wire Power Connector

Waterproof Electrical 500V M25 4 Pin Push Lock Connectors

Quick Details of IP67 Waterproof Connector

M25 Standard Push-Lock Design: Tool-free instant plug-in and unplug operation doubles installation and maintenance efficiency. Compliant with M25 specifications, automatically locks and positions after insertion with single operation time under 1 second. Enhanced anti-loosening buckle improves connection stability by 60% in high-frequency vibration scenarios.
500V High-Voltage Adaptation: Rated voltage of 500V with full-dimensional safety protection for industrial medium and high-voltage scenarios. Insulating shell passes rigorous high-voltage withstand tests with breakdown voltage ≥1500V, effectively blocking electric leakage and arc hazards.
IP67 Waterproof & Dustproof: Double-layer silicone sealing rings and M25 tight shell achieve IP67 protection rating, working stably for 30 minutes in 1m water depth. Resists erosion from dust, oil stains, and moisture for reliable operation in outdoor, humid workshops, and dusty environments.
4-Pin Independent Layout: Integrated power and signal transmission capability streamlines equipment interfaces. Independent partition design enables simultaneous power supply and signal transmission without additional connectors, supporting modern electrical equipment miniaturization and integration.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector suitable for up to 50A continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Electrical Parameters

Number of Poles	4Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material and spacing between contact sizes. Some components may not function properly below their rated voltage.

What payment methods do you accept?

We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
