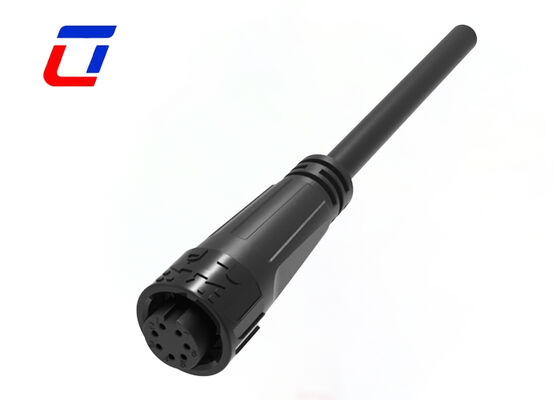

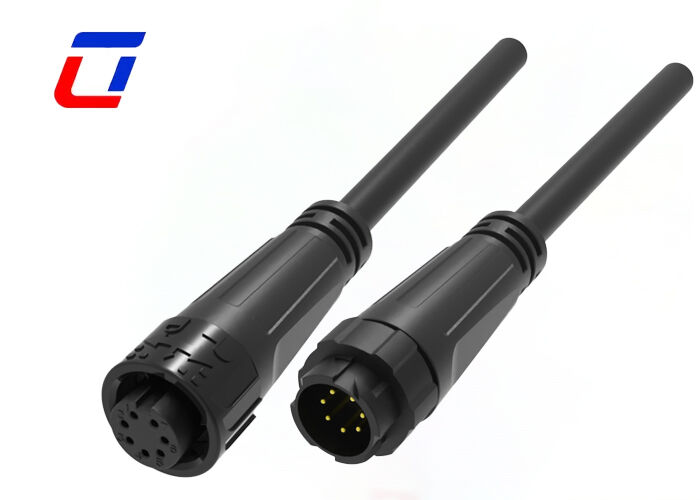

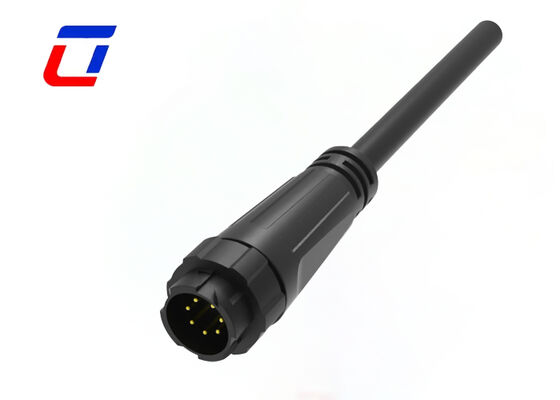

M16 7-Pin Waterproof Industrial Data Connector
Product Overview
M16 Male Female 7-Pin Waterproof Automotive Connectors designed for low power signal transmission with reliable performance in demanding industrial environments.
Main Features
- Push lock quick release system for easy installation
- Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
- Field assembly versions: wire to wire and wire to board
- Cable assembly service supported with custom options available
- OEM/ODM services welcome
Product Description
Engineered for various data transmission applications, this M16-sized 7-pin waterproof connector is constructed from durable PA66 engineering plastic. CE certified with 60V low-voltage compatibility, it serves as a reliable connection solution for low-voltage data cables. The precision 7-pin layout enables independent and synchronous transmission of multi-channel data, while the male-female quick-plug design ensures efficient wiring and maintenance convenience.
With excellent waterproof performance and anti-interference capabilities, this connector maintains stable data transmission in complex environments. The 7-pin contacts feature high-purity copper alloy with gold-plated technology, maintaining contact resistance within ≤10mΩ to minimize transmission loss and ensure complete signal integrity for sensor data and control commands.
The connector meets IP67 waterproof and dustproof standards through a dual protection system combining professional sealing rubber rings and thread locking structures. This effectively blocks rainwater, humid vapor, and environmental dust, making it suitable for outdoor and high-humidity applications. CE certified with a rated working voltage of 60V and rated current of 5A, it provides strong anti-electromagnetic interference capabilities for reliable low-voltage data transmission.
Electrical Parameters
| Number of Poles |
7Pin |
| Current Rating |
5A max. |
| Voltage Rating |
60VAC max |
| Durability Voltage |
500VAC @ 60 s. |
Application Industries
- Growth Lights
- Communications Equipment
- Product Coding Machines
- Inventory Product Coding Systems
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Specifications
