Name: PA66 M19 5 Pin Water Tight Electrical Connectors OEM Waterproof Solder Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Cable Connector

PA66 M19 5 Pin Water Tight Electrical Connectors OEM Waterproof Solder Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	5Pin	Current:	8A Max. For Power
Rated Voltage:	125V	Waterproof Rating:	IP67
Operating Temperature:	-40℃~+105℃	Flame-resistant Rating:	UL94-V0
Highlight:	PA66 M19 waterproof electrical connectors , 5 pin solder waterproof connectors , OEM M19 waterproof cable connector

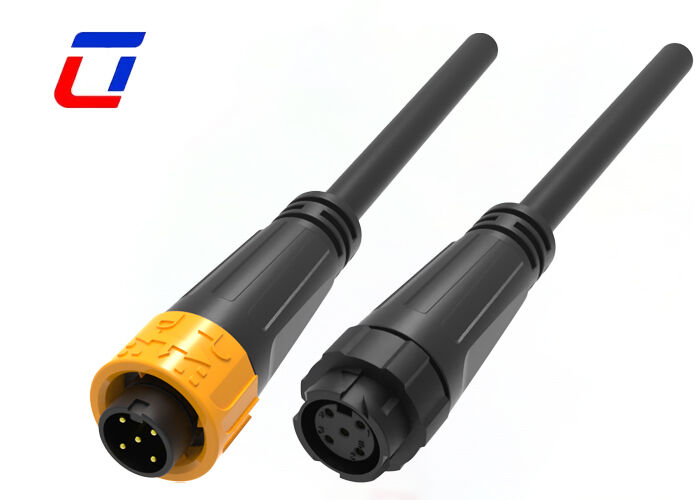

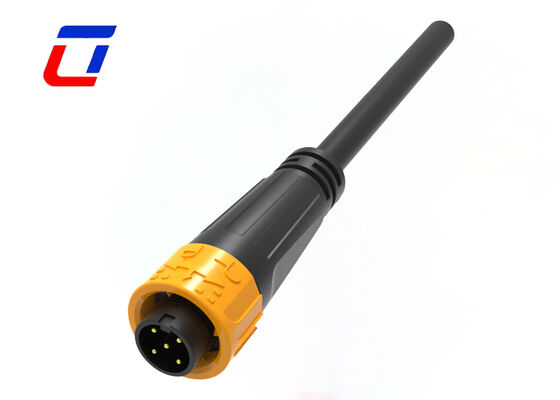

PA66 M19 5 Pin Water Tight Electrical Connectors

Professional Waterproof Solder Connectors for Heavy-Duty Applications

The M16 5-Pin 125V Push-Lock Waterproof Connector (IP67) is custom-engineered for heavy-duty applications. With its robust structural design and reliable operational performance, it serves as an optimal choice for power transmission and signal connection in harsh environments. Strictly complying with the M16 interface standard, this 5-pin connector precisely meets 125V rated voltage requirements, ensuring stable current transmission and lossless signal interaction for heavy-duty equipment.

The innovative push-type locking mechanism enables precise docking and secure locking with a simple press, effectively preventing connection loosening under vibration and impact conditions. This mechanism facilitates quick plug-and-pull operations without additional tools, significantly improving installation and maintenance efficiency. With an IP67 protection rating, it provides comprehensive waterproof and dustproof capabilities, remaining fully functional even when immersed in 1 meter of water for 30 minutes.

Key Features

Push-lock quick release system for easy operation
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field assembly version supports both wire-to-wire and wire-to-board connections
High current rating up to 8A for continuous operation
Cable assembly service available for custom requirements
OEM/ODM services supported

Electrical Parameters

Parameter	Specification
Number of Poles	5Pin waterproof connector
Current Rating	8A max
Voltage Rating	125VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar power systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

Professional Manufacturer

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q2: What is your Minimum Order Quantity (MOQ)?

A2: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.

Q3: How to track my shipment?

A3: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.
