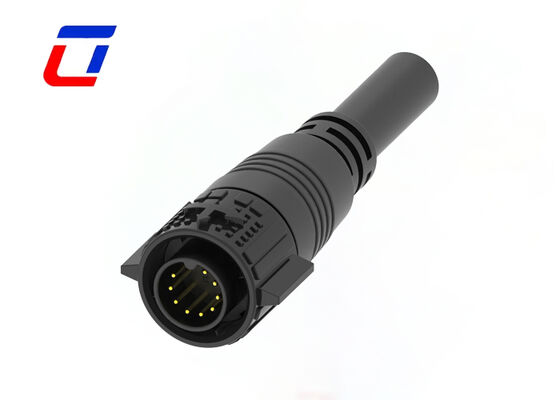

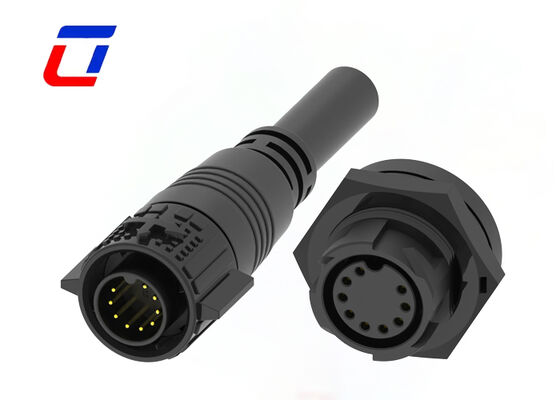

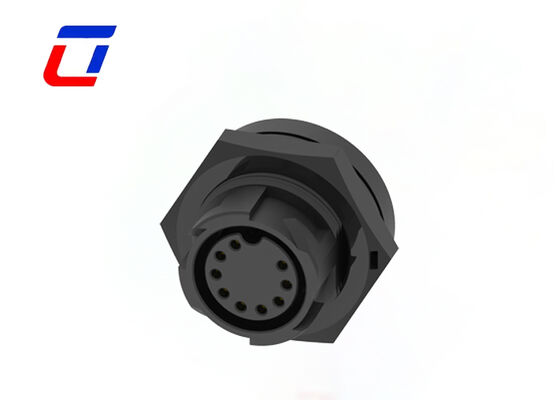

M19 9 Pin Male Cable Connector - Industrial Waterproof Aviation Connector
9 Pin Data Connector M19 IP67 Waterproof Connector
Main Features
- Push lock quick release system for easy connection
- Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power applications
- Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
- Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
- Field assembly version with wire to wire and wire to board options
- 5A current rating for continuous operation
- Cable assembly service supported with custom options available
- OEM/ODM services welcome
Application Industries
- Growth Lights
- Communications Equipment
- Product Coding Machines
- Inventory Product Coding Systems
- Inkjet Systems
- Solar Systems
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Heavy Machinery
Product Overview
The M19 9-Pin Male Cable Connector is a high-end signal transmission solution designed specifically for industrial environments. Engineered for stable performance in harsh conditions, this connector serves as a core component for industrial automation and outdoor electronic equipment. Built to M19 standard circular interface specifications with precision 9-pin layout, it ensures reliable signal transmission and seamless docking with corresponding female connectors.
Featuring IP67 waterproof and dustproof rating, the connector utilizes a fully enclosed sealing structure with dedicated waterproof rubber rings to withstand rain, dust, moisture, and other environmental challenges. The push-pull self-locking mechanism maintains secure connections even under vibration and impact, while enabling tool-free installation and maintenance.
Constructed from weather-resistant reinforced PA66 engineering plastic, the housing provides excellent UV resistance, anti-aging properties, and corrosion resistance. The connector maintains structural stability across a wide temperature range of -40℃ to +105℃. Gold-plated brass pins ensure low contact resistance (<10mΩ), stable conductivity, and exceptional oxidation and wear resistance through 500+ mating cycles.
Compliant with RoHS environmental standards and certified by CE and UL, this connector meets international industrial low-voltage electrical safety specifications. Applications include industrial automation control systems, PLC equipment, outdoor sensors, landscape lighting, security monitoring, and new energy equipment.
Electrical Parameters
| Number of Poles |
9Pin |
| Current Rating |
5A max |
| Voltage Rating |
60VAC max |
| Durability Voltage |
500VAC @ 60s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Sketch
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
Q: What payment methods do you accept?
A: We support mainstream international payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, our standard term is 30% down payment with 70% balance due before shipment.
Q: How can I get samples?
A: We are pleased to provide samples, with freight costs covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.
Q: How many materials can you provide?
A: We offer various materials for connectors and cables. Connectors typically use PVC or Nylon materials, while cables utilize PVC, Rubber, or Silicone materials. We can also source materials according to your specific requirements.
