M19 Water Tight Wire Connectors 18 Pin Push Lock Connector IP67 Signal Transmission
Product Overview

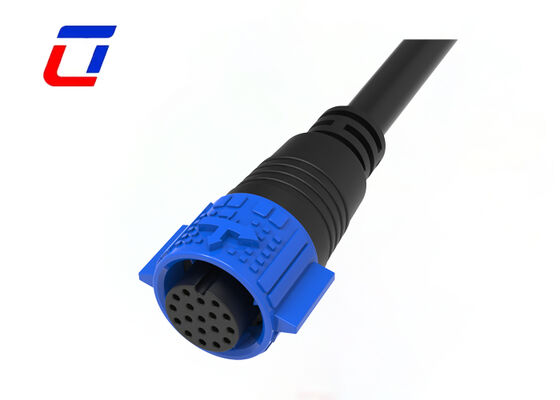

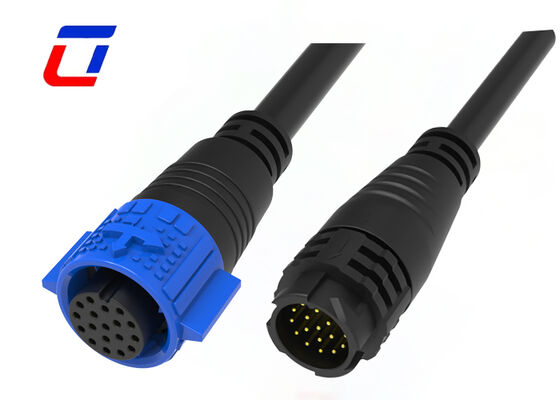

18 Pin M19 Wire To Wire Outdoor Quick Lock Connectors configured with an 18-pin full-pin precision layout, perfectly meeting the requirements of simultaneous multi-channel signal transmission in outdoor scenarios.
Core Specifications & Compatibility
Adopts an M19 standard circular interface with complete male and female plug-in parts, achieving precise insertion, tight fit and balanced impedance transmission. Compatible with various outdoor wire specifications for fast and stable docking with enhanced installation efficiency.
Outdoor-Grade Waterproof Protection
Meets IP67 high-level waterproof and dustproof standards with fully enclosed sealing structure and dedicated waterproof rubber ring. Resists harsh outdoor environments including rain, heavy wash, dew condensation and sand dust intrusion, ensuring all-weather stable operation.
Push-Type Lock Secure Connection
Features core push-lock mechanism that locks with a gentle push after insertion, maintaining firm connection without loosening. Resists external interferences such as wind disturbance, equipment vibration and accidental pulling. Simple unlocking operation for easy separation.
Weather-Resistant Construction
Housing made of weather-resistant reinforced engineering plastic with excellent UV resistance, withstands temperatures from -40℃ to 105℃, and features anti-aging and anti-corrosion properties. Pins use high-purity copper core tin-plating technology for superior conductivity, oxidation resistance and wear resistance.
Safety & Practical Features
Complies with outdoor electrical safety specifications with outstanding insulation performance. Male-female plug-in anti-misinsertion design prevents damage from reverse insertion. Compact, lightweight structure facilitates installation in narrow outdoor spaces with support for various mounting methods.
Main Features
- Push lock quick release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
- 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
- 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
- Field assembly version: both wire to wire and wire to board options
- Current rated 5A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application Industries
- Growth Lights
- Communications Application
- Product coding machines
- Inventory product coding
- Inkjet systems
- Solar System
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Communications equipment
- Heavy machinery
Electrical Parameters
| Number of Poles |
18Pin |
| Current Rating |
5A max. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max. Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Sketch
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: Can I pay after receiving the goods?
A: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
Q: What is rated voltage?
A: Rated voltage, also known as operating voltage, mainly depends on the connector insulation material used and the spacing between the size of contact. Some components or devices may not complete their functions when operating below rated voltage.
