M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Pin:	16Pin
Rated Voltage:	300V	Material:	Nylon
Operating Temperature:	-40℃-+105℃	Contact Material:	Brass Gold-Plated
Highlight:	M19 waterproof wire connector , 16 pin solder wire connector , IP67 wire to wire connector

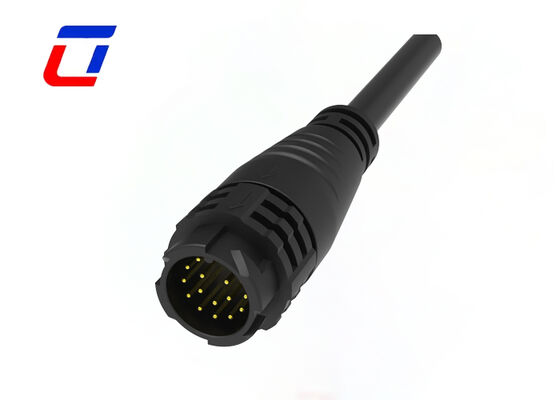

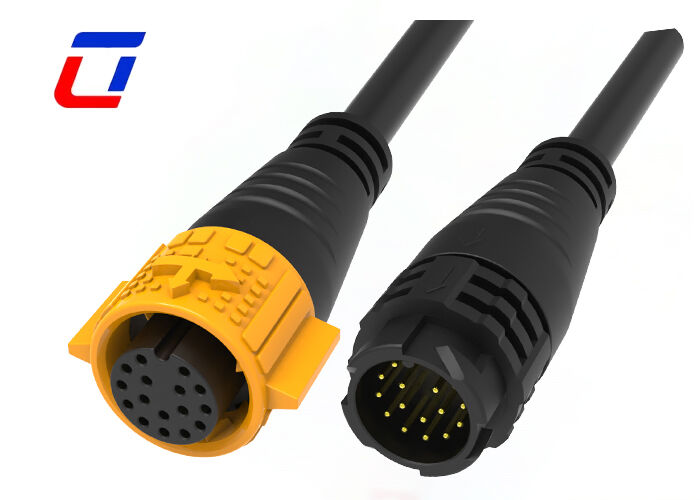

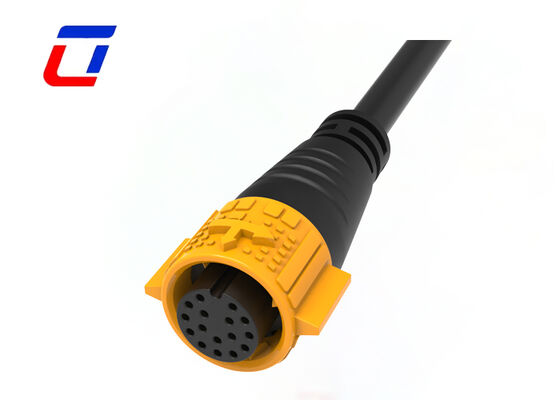

M19 Waterproof Solder Wire Connectors 16 Pin IP67 Wire To Wire Connector

Product Overview

M19 IP67 Wire Connectors Male To Female Industrial Connector featuring a 16-pin configuration with IP67 protection level. Designed specifically for wire-to-wire connections, these connectors ensure firm soldered connections with low contact impedance for stable power and signal transmission. Excellent waterproof, dustproof, and vibration-resistant performance makes them ideal for complex working conditions.

Construction & Applications

Manufactured from weather-resistant engineering materials with precision sealing structure, these connectors effectively resist rain, dust, and moisture. Suitable for outdoor, humid, and dusty environments. Widely used in industrial control, security monitoring, outdoor electronic equipment, and new energy auxiliary devices, providing long-term reliable wire-to-wire connections.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters

Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Q: Can I have custom label?

A: Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
