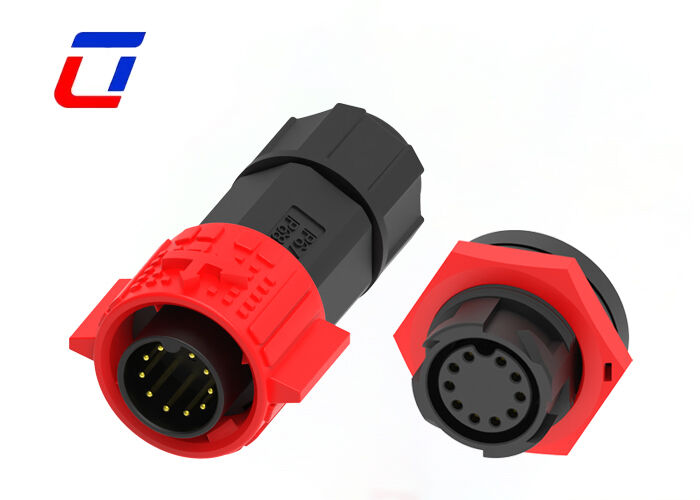

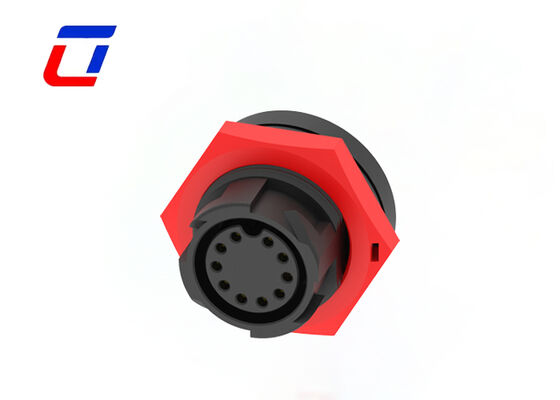

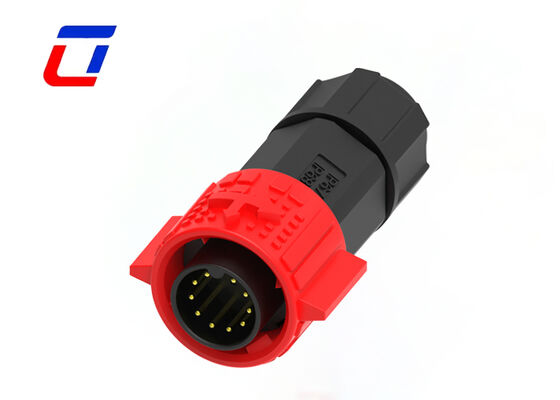

10 Pin Data Connector M19 Waterproof Quick Connect Wire To Board Connectors
Product Overview
M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors provide reliable connectivity solutions for industrial applications requiring robust performance in challenging environments.
Core Signal Specifications
M19 interface with 10Pin signal-specific cores optimized for low-power transmission. Features quick male-female docking with precise pin positioning to prevent misconnection, supporting multi-group parallel signal transmission requirements.
Outdoor Protection Design
Integrated waterproof sealing provides resistance against rain, dust, condensation, and UV exposure. Weather-resistant engineering plastic shell offers temperature resistance from -40℃ to 105℃ with excellent anti-aging properties, making it suitable for harsh outdoor climates.
Signal Transmission Performance
Optimized for low-power signals with gold-plated brass pin cores ensuring ultra-low contact resistance, minimal signal loss, and strong anti-interference capabilities to prevent signal distortion and ensure clear transmission.
Connection Advantages & Applications
Snap-on male-female connection system provides smooth plugging, secure locking, and excellent anti-vibration/drop performance. Widely used in outdoor sensors, security monitoring, lighting control, environmental monitors, and various industrial applications.
Electrical Parameters
| Number of Poles |
10Pin |
| Current Rating |
5A max. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
Application Industries
- Growth Lights
- Communications Application
- Product Coding Machines
- Inventory Product Coding
- Inkjet Systems
- Solar System
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Main Features
- Push lock quick release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
- 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
- 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
- Field assembly version: both wire to wire and wire to board options
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Operation Parameters
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max. Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Sketch
