Name: M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	14Pin	Current Rating:	5A
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Temperature:	-40~105℃	Contact Material:	Brass Gold-Plated
Highlight:	M19 waterproof bulkhead connector , 14 pin wire to board connector , 300V waterproof power connector

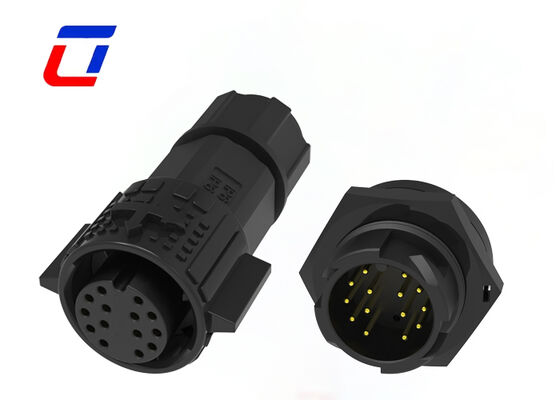

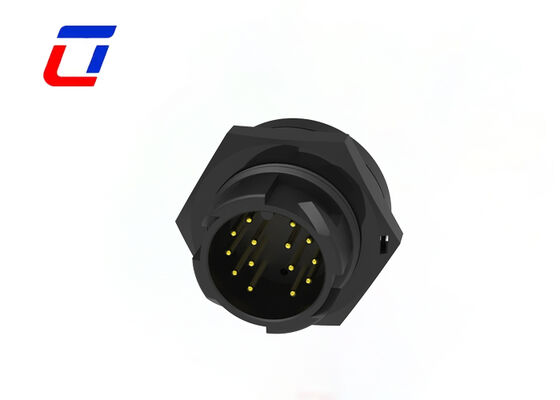

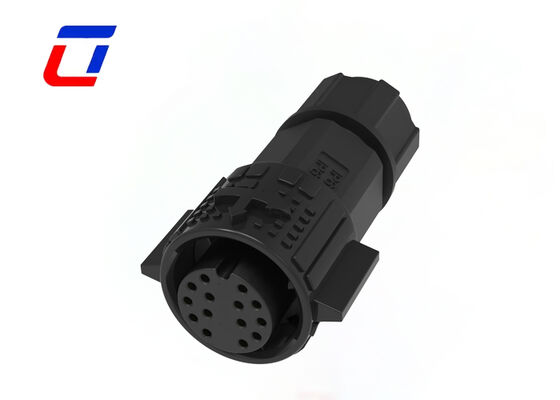

M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V

This M19 14-pin push locking waterproof connector features gold-plated pins and OEM customization capabilities, providing a high-quality solution for stable equipment connections. Combining push-locking convenience with gold-plated conductivity and M19 compatibility, it offers superior waterproof, dustproof, and corrosion-resistant performance for industrial control, outdoor communication, automotive electronics, and security monitoring applications.

Key Advantages

Push Locking Structure: Easy one-press docking and locking with key-unlocking mechanism, tool-free operation enhances installation efficiency and prevents accidental disconnection from vibration or pulling
14-Pin Gold-Plated Contacts: Multi-channel signal and power synchronous transmission with high-purity copper alloy pins featuring gold plating to reduce contact resistance, resist oxidation, and extend service life in harsh environments
Superior Waterproof Performance: Integrated sealing structure with high-quality rings provides IP67 protection, ensuring stable connections in rain, humid workshops, and other wet environments
Quick Connection Design: Tool-free manual docking and separation with clear buckle feedback confirms proper connection, reducing wiring time and facilitating maintenance

Main Features

Push lock quick release system
Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for power applications
Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal-only variants: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions with wire-to-wire and wire-to-board options
5A current rating for continuous operation
Cable assembly services available
OEM/ODM customization welcome

Electrical Parameters

Number of Poles	14Pin
Current Rating	5A max
Voltage Rating	300VAC max
Dielectric Strength	1500VAC @ 60s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Rating	IP67 (1m / 30min) when mated
Housing Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Minimum Wire OD	3.0mm ~ 6.0mm
Maximum Wire OD	8.0mm ~ 10.0mm
Maximum Cable Cross Section	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Design Images

Frequently Asked Questions

Are you a factory or trading company?

We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
