M19 Waterproof Solder Connectors 15A 300V 8 Pin Multi Pin Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	15A+5A	Rated Voltage:	300V
Pin:	3+5Pin	Material:	Nylon
Gender:	Male To Female	Temperature:	-40~105℃
Highlight:	M19 waterproof solder connector , 8 pin waterproof circular connector , 15A 300V waterproof connector

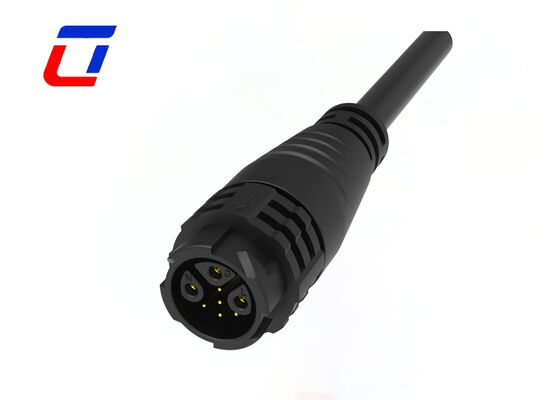

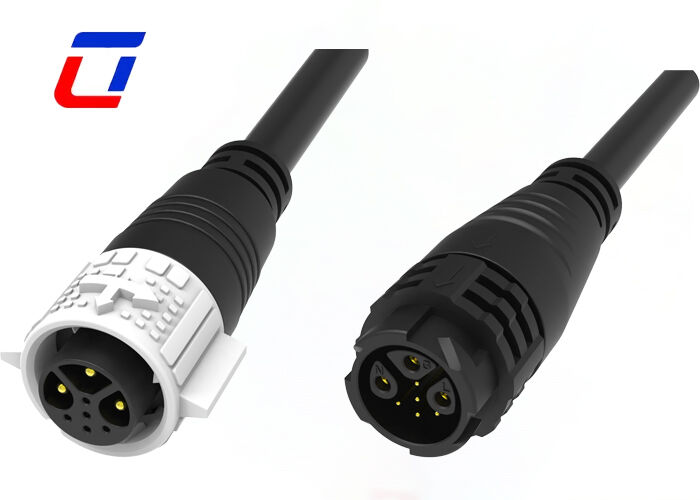

M19 Waterproof Solder Connectors 15A 300V 8 Pin Multi Pin Waterproof Connector

15A Waterproof Data Cable Connector 3+5 Pin M19 IP67 Connectors

Quick Overview

Model Specification: M19 Circular Waterproof Connector
Rated Parameters: Rated Current 15A, Rated Voltage 300V
Pin Configuration: 8 Pins, 3+5 Multi-Pin Grouping Design
Connection Method: Solder Connection, Push-Pull Self-Locking Structure
Protection Level: IP67 (Dustproof, Waterproof Immersion)
Material Characteristics: Shell is flame-retardant thermoplastic material, pin core is gold-plated brass, sealing ring is silicone
Environmental Adaptability: Operating Temperature -40℃~105℃, Salt Spray Resistant, Oil Stain Resistant, Vibration Resistant
Certification Standards: Compliant with RoHS and CE Standards, Meeting Environmental and Safety Requirements

Electrical Parameters

Number of Poles	3+5Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Product Design
