Name: M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof Cable Connector

M19 IP Rated Cable Connectors Of IP67 Waterproof Outdoor Male Female Connector 8 Pin

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	8Pin	Connector Type:	Quick Connector
Rated Voltage:	300V	Operating Temperature:	-40℃-+105℃
Flame-sesistant Rating:	UL 94-V0	Color:	Blue,White,Green
Highlight:	IP67 waterproof cable connector , 8 pin outdoor cable connector , M19 waterproof male female connector

M19 IP67 Waterproof Outdoor 8 Pin Male Female Cable Connectors

Product Overview

This M19 8-pin circular connector is specifically engineered for outdoor data transmission scenarios, featuring 300V voltage compatibility, IP67 protection, and a quick-release structure. The expanded 8-pin design supports multi-channel synchronous data transmission, while the male-female cable connection includes a one-click quick-release mechanism for easy installation and maintenance.

The high-strength plastic housing provides enhanced durability against complex outdoor environmental corrosion. Gold-plated copper pins optimize contact efficiency and reduce signal loss, while the IP67 rating ensures protection against dust, water, and environmental elements.

Main Features

Push lock quick release system
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly version with wire-to-wire and wire-to-board options
Current rated 5A for continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Technical Specifications

Electrical Parameters
Number of Poles	8Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 1.5mm²

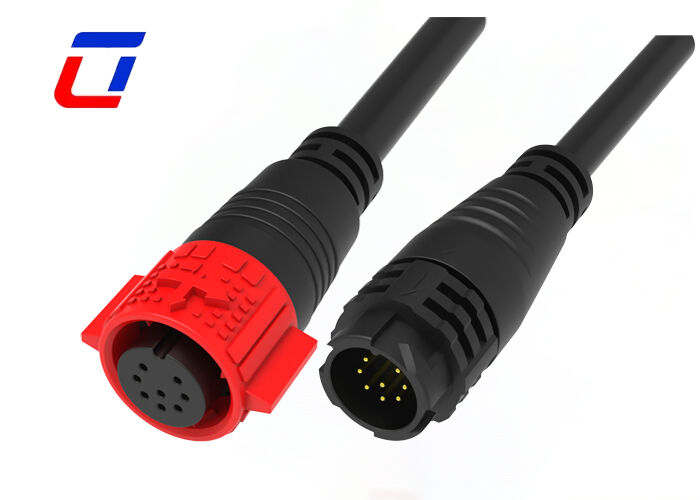

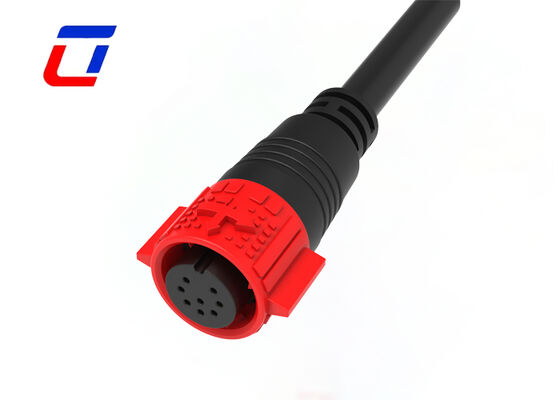

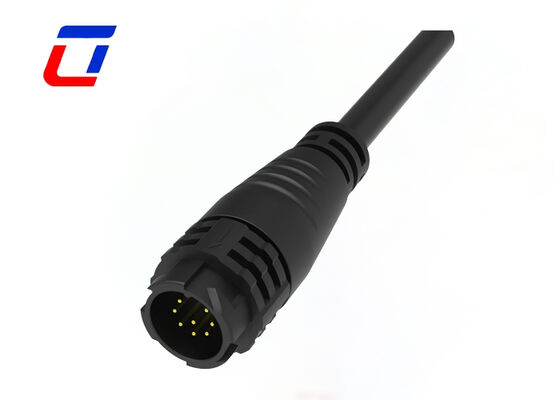

Product Images

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q: How can I get samples?

A: We are pleased to offer samples, and the freight should be paid by the customer. Please provide your courier account number and detailed address, and we will send the sample immediately.

Q: How many materials can you provide?

A: We offer various materials for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.
