Name: 11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

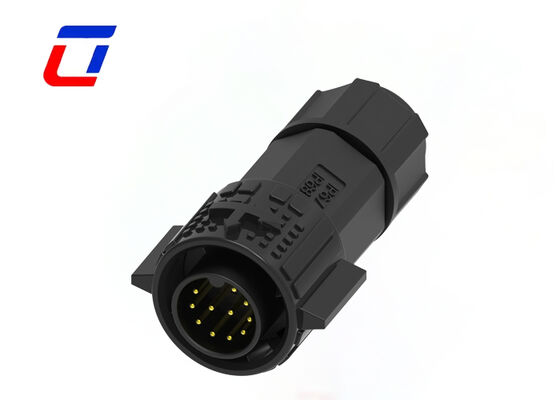

11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	11Pin	Current Rating:	5A
Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Highlight:	11 pin M19 circular connector , IP67 waterproof panel mount connector , automotive waterproof plug socket

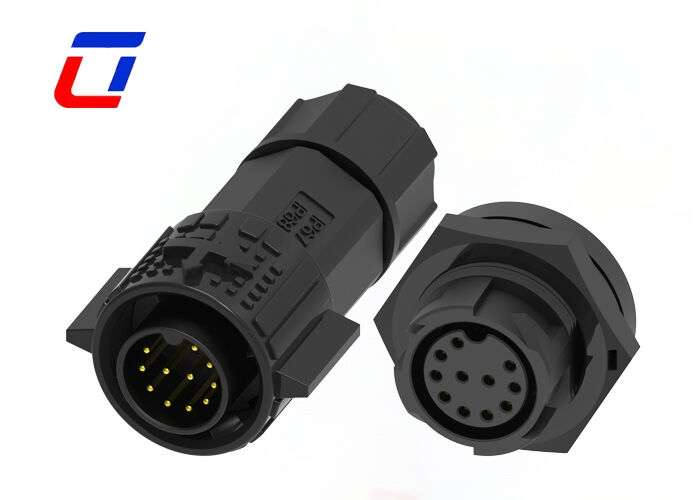

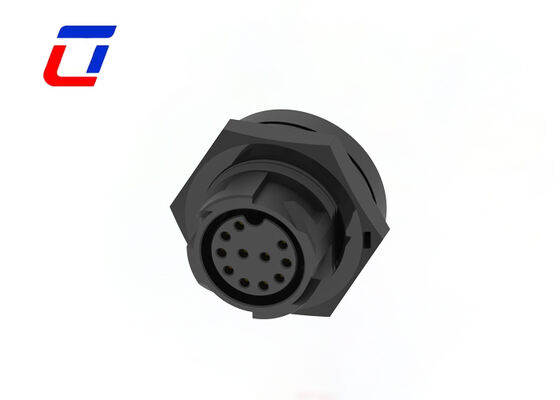

11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive

Product Overview

The M19 11-pin circular connector is engineered for wire-to-wire data transmission in demanding outdoor scenarios, featuring quick-lock convenience and high-protection stability. Designed for multi-channel data interconnection in industrial outdoor, communication monitoring, and environmental monitoring applications.

Key Features

Push lock quick release system for tool-free installation
Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions: wire-to-wire and wire-to-board options
5A current rating for continuous operation
Cable assembly services and custom solutions available
OEM/ODM services welcome

Technical Specifications

Parameter	Specification
Number of Poles	11Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60s
Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1m / 30min) when mated
Housing Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Minimum Wire Size OD	3.0mm - 6.0mm
Maximum Wire Size OD	8.0mm - 10.0mm
Maximum Cable Cross Section Area	0.5mm² - 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to buy your products?

A: You need to do as followings:
• Confirm Current Rating and Number of Contacts
• Confirm Assembly style
• Confirm Cable Wire gauge
• Confirm Cable Length and Material

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q: Is there a discount for large-quantity orders?

A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

D*k

United States Sep 10.2025

Helpful (2012)

The pre-sales team helped us confirm the voltage and interface size, avoiding wrong purchases. After-sales is also reliable, they sent replacement parts quickly when we needed a few extra. Great supplier, will cooperate long-term.

A*y

Brazil Jun 1.2025

Helpful (1800)

The pre-sales team was really helpful, they explained the specs clearly and helped us pick the right model. After delivery, they even followed up to ask about the usage, which made us feel very reliable. Will definitely reorder for our next batch of equipment.

L*n

Panama Feb 29.2024

Helpful (4329)

I really appreciate the after-sales support. We had a small question about wiring, and they responded quickly with clear instructions. The connectors are sturdy, waterproof, and perform exactly as described. Very reliable supplier.
