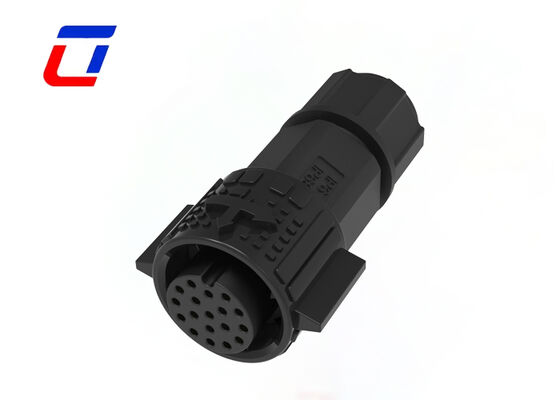

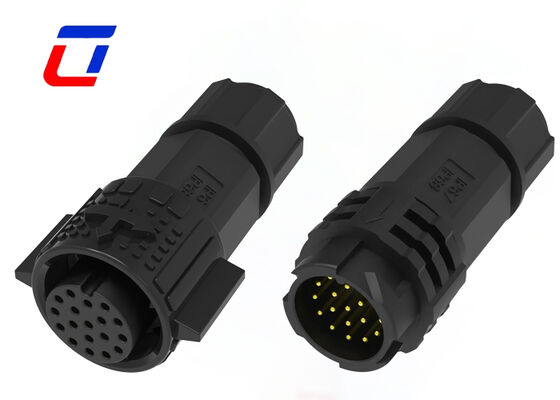

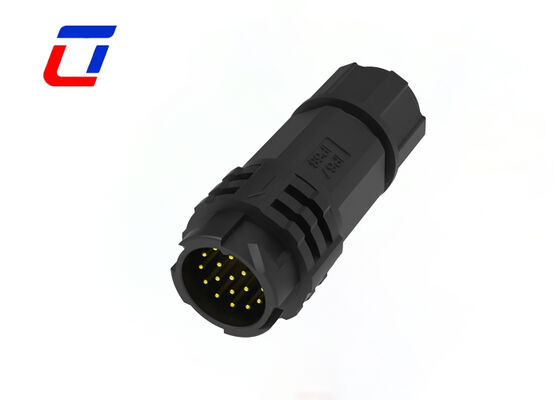

Name: M19 18 Pin Male Female Connector Nylon Push Locking Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

M19 18 Pin Male Female Connector Nylon Push Locking Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	18Pin	Current Rating:	5A
Connector Type:	Quick Connector	Material:	Nylon
Color:	Blue White Red Yellow	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof connector 18 pin , nylon push locking connector , waterproof data connector male female

M19 18 Pin Male Female Connector Nylon Push Locking Waterproof Connector

Product Overview

The M19 series 18-pin circular connector is engineered for reliable wire-to-wire data transmission in demanding outdoor environments. Featuring a quick-lock mechanism and high protection performance, this connector ensures stable data interconnection for outdoor electronic devices. With 18-pin full data channel configuration, it supports multiple simultaneous signal transmission tasks, making it ideal for applications requiring high data throughput and stability such as outdoor monitoring, communication equipment, and industrial sensors.

Key Features

Push-lock quick release system for tool-free installation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin for power applications
Power-signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, and 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, and 18Pin
Field assembly versions: wire-to-wire and wire-to-board options
5A current rating for continuous operation
Cable assembly services available with customization options
OEM/ODM services welcome

Environmental Protection

Designed for harsh outdoor conditions including humidity, dust, and UV exposure. Features dual-sealing design with high-elasticity silicone sealing ring and independent pin sealing sleeves, achieving IP67 protection rating. Resists rain immersion, sand dust invasion, and dew erosion to prevent data transmission interruptions.

Materials & Construction

Housing constructed from UV-resistant reinforced PA66 engineering plastic with flame retardancy and weather resistance. Maintains structural stability across extreme temperatures from -40℃ to 105℃. 18 pins feature high-conductivity copper alloy with gold plating to minimize signal attenuation and interference. Integrated stamping construction provides excellent bending resistance and corrosion resistance for long-term reliability.

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Technical Specifications

Parameter	Specification
Number of Poles	18Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How to buy your products?

A: You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material

Q: Can I pay after receiving the goods?

A: For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

B*t

United States Jul 2.2025

Helpful (2297)

After my friend strongly recommended them, I bought these waterproof connectors for my outdoor project. Fast shipping, good packaging, easy installation, stable connection, and no water leakage at all. The seller is nice and reliable. They work just as well as my friend said—totally trustworthy. I will buy again and recommend to more people.

E*n

Austria Oct 20.2024

Helpful (1665)

Solid construction, stable connection, and reliable waterproofing. I’ve used these in outdoor systems for a long time, and they still work like new. The service was top-notch—polite, efficient, and professional.

M*.

United States Aug 10.2024

Helpful (2367)

Shipping was faster than I expected, and the packaging was really secure—no damage at all. Once I started using these connectors, I was impressed right away. They fit perfectly, connect tightly, and are really easy to install even for someone who isn’t a professional. We use them in outdoor lighting and security systems, and they’ve been working flawlessly. The seller’s attitude was great from start to finish, very friendly and professional. I’ve already recommended this shop to a few of my contractor friends.
