Name: M19 300V Waterproof Cable Connector 12 Pin Self Locking Outdoor Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

M19 300V Waterproof Cable Connector 12 Pin Self Locking Outdoor Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	12Pin	Rated Voltage:	300V
Material:	Nylon	Color:	White Blue Red Black Yellow
Flame-resistant Rating:	UL94-V0	Industry Fields:	Smart Home
Highlight:	M19 300V waterproof cable connector , 12 pin self locking outdoor connector , waterproof plug socket with warranty

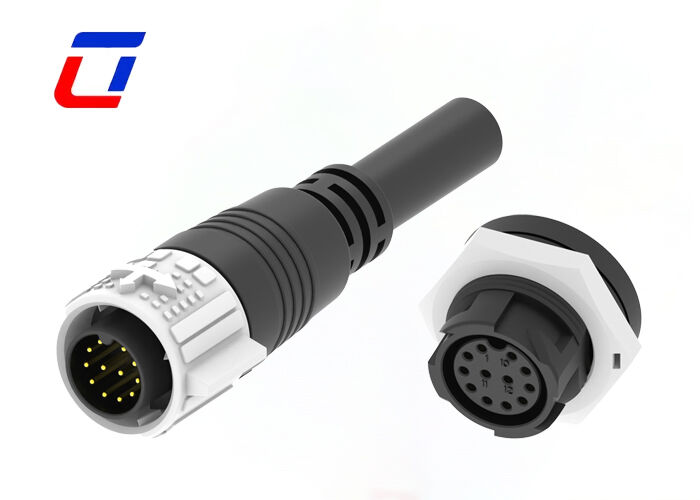

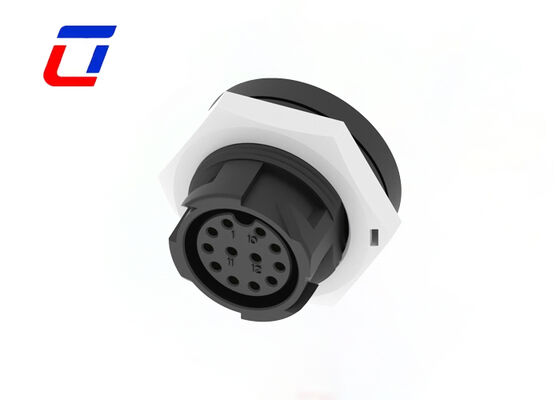

M19 300V Waterproof Cable Connector 12 Pin Self Locking Outdoor Connector

Product Overview

Engineered exclusively for high-reliability operation in wet, harsh environments, this circular connector series delivers uncompromised performance with its IP67 dust and water ingress protection rating. Equipped with a corrosion-resistant housing and a precise 12-pin configuration, it guarantees stable, uninterrupted transmission of both power and signal.

Key Advantages

Designed for tool-free, effortless mating, its rugged construction ensures long-lasting durability across industrial equipment, outdoor electronics, lighting systems, and marine devices. The intuitive push-lock mechanism enables automatic locking with simple one-second insertion, eliminating accidental disconnections in vibration-prone environments.

The integrated power-and-signal design addresses limitations of traditional separate connectors, offering compact, all-in-one connectivity ideal for space-constrained installations.

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	12 Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q: How many materials you can provide?

A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
