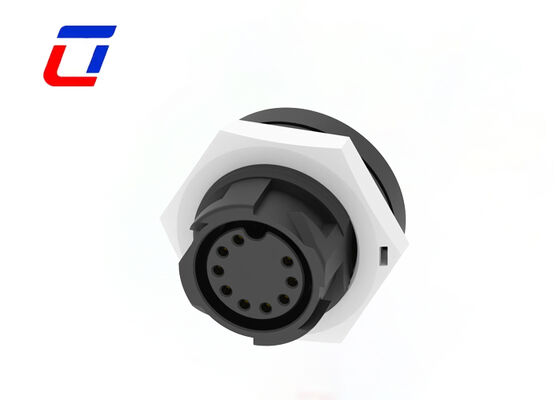

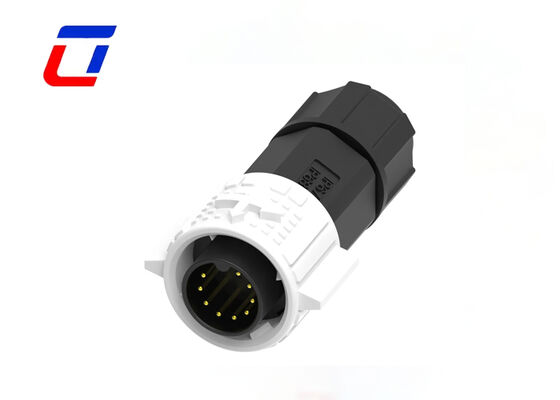

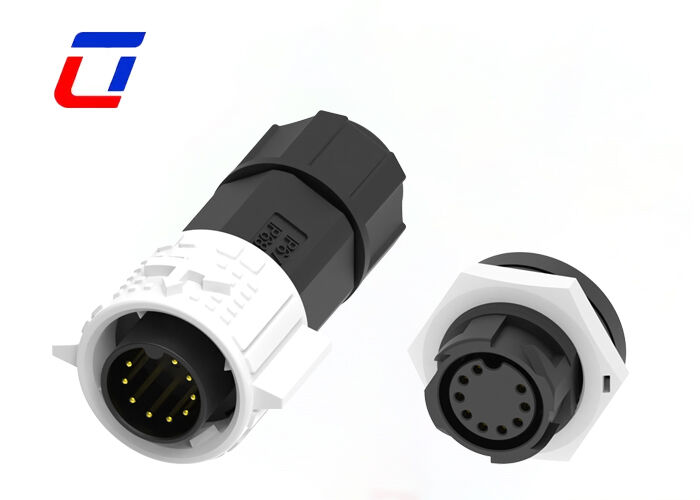

Name: M19 9 Pin Waterproof Cord Connector Panel Mount Low Current Wire To Board Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

M19 9 Pin Waterproof Cord Connector Panel Mount Low Current Wire To Board Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	9Pin	Current Rating:	5A
Gender:	Male To Female	Material:	Nylon
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof panel mount connector , 9 pin low current wire connector , waterproof wire to board connector

M19 9 Pin Waterproof Cord Connector Panel Mount Low Current Wire To Board Connector

Product Overview

The M19 9-pin waterproof cord connector is a dedicated low-current signal transmission solution engineered for harsh environments. Featuring a panel-mount design, it enables stable interconnection between cables and circuit boards. Boasting IP67 ingress protection and precision structural design, it serves as a reliable choice for signal transmission in industrial and outdoor equipment.

Key Features

Push lock quick release system
Multiple pin configurations: 2-18 pins for power and signal applications
Power and signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM customization available

Core Performance Highlights

Superior Waterproof & Dustproof Protection: IP67 rating with silicone sealing gasket and epoxy potting technology
Stable Low-Current Signal Transmission: 9 gold-plated copper alloy contacts for accurate signal transmission
Secure Connection & Stable Installation: Push-pull self-locking mechanism with excellent vibration resistance
Wide Temperature Adaptability: Operating range of -40℃ to +105℃ with UL94-V0 flame-retardant housing

Application Industries

Growth Lights, Communications Equipment, Product Coding Machines, Inventory Product Coding, Inkjet Systems, Solar Systems, Industrial Inkjet Equipment, Electric Power Equipment, Laboratory Forensic & Pathology Equipment, Communications Equipment, Heavy Machinery

Technical Specifications

Parameter	Specification
Number of Poles	9Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s
Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: Can I have custom label?

A: Yes, of course. You can create your own private label and packaging. If you need packaging design, we have professional designers to serve you.

Q: How can I get samples?

A: We are pleased to offer samples, with freight costs to be paid by the customer. Please provide your courier account number and detailed address for immediate shipment.

Q: Who is responsible for customs clearance? Do you provide necessary documents?

A: We provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

J*s

United Kingdom Jan 8.2026

Helpful (983)

I was looking for a reliable waterproof connector for outdoor LED lighting, and this one ticked all the boxes. The sealing is strong, the connection is stable, and it looks well-made. The pre-sale support helped me confirm voltage and size, which saved me a lot of time. After I received the goods, they worked perfectly straight away.

S*s

Australia Mar 24.2025

Helpful (770)

These connectors handle Aussie weather really well—sun, salt air, rain. No corrosion, no loose connections. Great quality, great service, repeat customer for life.

D*s

Argentina Jul 1.2023

Helpful (3663)

Very satisfied with my purchase. The connectors are durable and easy to handle. The seller cared about my experience and made sure everything was okay after delivery. Excellent product and amazing service.
