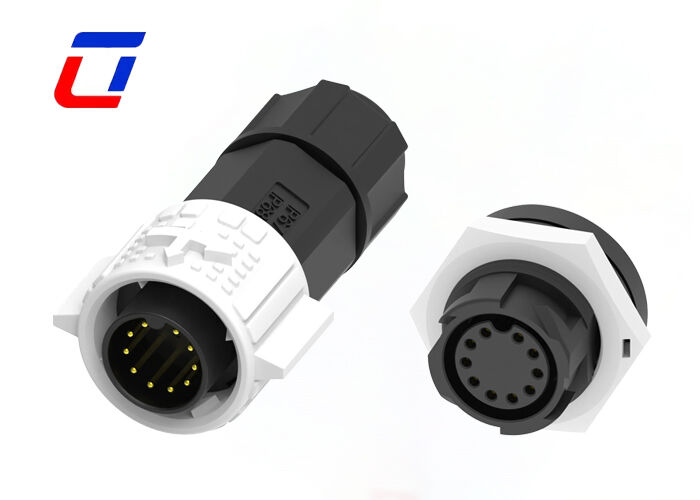

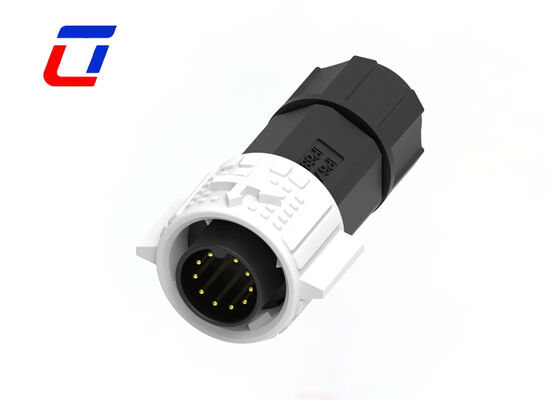

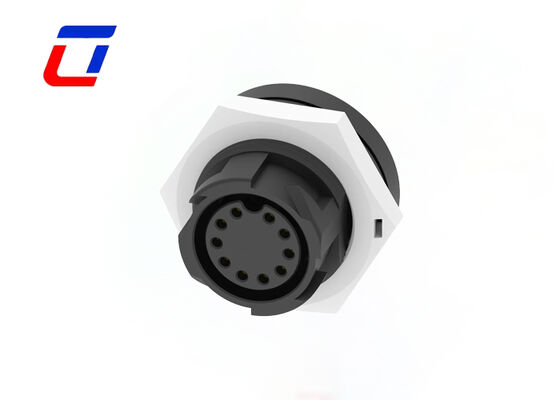

Name: 300V M19 10 Pin Wire To Board Power Connector Quick Lock Waterproof Plug Socket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Data Connector

300V M19 10 Pin Wire To Board Power Connector Quick Lock Waterproof Plug Socket

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	10Pin	Material:	Nylon
Current Rating:	5A	Gender:	Male To Female
Type:	Plug/Socket	Contact Material:	Brass Gold-Plated
Highlight:	300V waterproof power connector , M19 10 pin wire connector , quick lock waterproof plug socket

300V M19 10 Pin Wire To Board Power Connector Quick Lock Waterproof Plug Socket

Product Overview

M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors

Key Specifications

Electrical Specifications: Rated voltage 300V DC/AC, 10Pin configuration, single Pin rated current 5A (suitable for multi-circuit parallel power supply), supporting stable power transmission and meeting industrial medium and low voltage power supply standards
Structural Specifications: M19 standard circular structure, conforming to industrial universal interface dimensions, compatible with wire diameter range 18-26AWG, supporting Wire To Board connection mode, male-female pairing design, suitable for panel mounting and cable docking
Environment & Service Life: Operating temperature range -40℃~+105℃, resistant to extreme high and low temperature environments; mechanical mating life ≥1500 cycles, meeting long-term repeated operation and maintenance needs
Applications: Industrial automation control equipment, outdoor LED display power supply, new energy industrial facilities, marine electrical systems, heavy machinery control panels, outdoor sensor arrays, medical equipment (portable diagnostic instruments) and other Wire To Board power transmission scenarios requiring high reliability, waterproof and dustproof, and quick connection

Electrical Parameters

Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.

Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

T*r

Germany Jan 13.2025

Helpful (1662)

Wir haben diese Stecker unter rauen Außenbedingungen getestet – starker Regen, hohe Feuchtigkeit, Staub – sie halten hervorragend. Keine Korrosion, keine lockeren Verbindungen, kein Wassereintritt. Die technischen Daten stimmen exakt mit der Beschreibung überein. Vor- und After-Sales-Service sind hervorragend.

E*n

Austria Oct 20.2024

Helpful (1665)

Solid construction, stable connection, and reliable waterproofing. I’ve used these in outdoor systems for a long time, and they still work like new. The service was top-notch—polite, efficient, and professional.

E*n

Austria Feb 28.2023

Helpful (1w+)

After testing multiple brands of waterproof connectors, I finally found one that I can trust completely. The build quality is excellent, the materials feel strong and durable, and the waterproof sealing works exactly as described. I have used these in harsh outdoor environments with high humidity and frequent rain, and they have never leaked or failed. Equally impressive is the customer service: the seller responded quickly to all my inquiries, offered professional suggestions, and cared about my satisfaction throughout the whole process. Fast shipping, safe packaging, great product, great service—this is what a reliable supplier should be.
