Name: M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	14Pin	Gender:	Male To Female
Material:	Nylon	Protection Level:	IP67
Flame-resistant Rating:	UL94-V0	Contact Material:	Brass Gold-Plated
Highlight:	M19 waterproof wire connector , IP67 LED signal connector , 14 pin waterproof cable connector

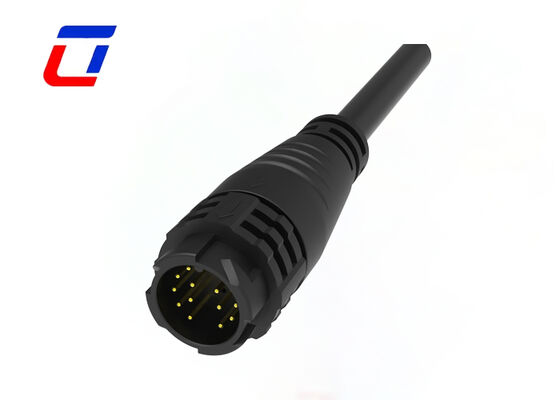

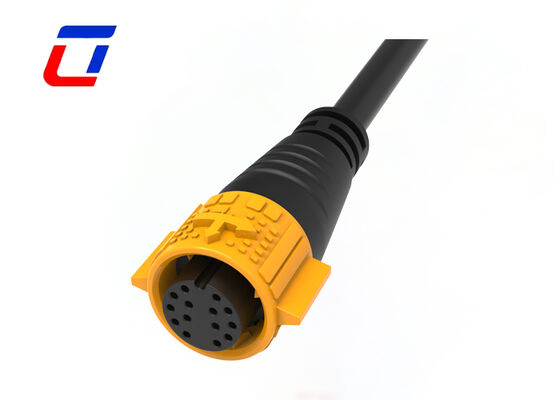

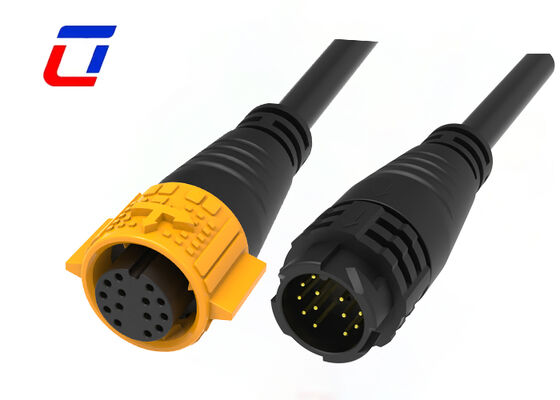

M19 14 Pin Waterproof Wire Connector IP67 Signal Waterproof LED Connector

Product Overview

This M19 14-Pin Push-Lock Waterproof Connector features gold-plated contacts and OEM customization capabilities. Designed for demanding industrial applications, it offers push-lock convenience, superior conductivity, and robust protection against water, dust, and corrosion.

Key Advantages

Push-lock design: Tool-free operation with secure locking mechanism resistant to external loosening
14 gold-plated pins: Low resistance, anti-oxidation/corrosion properties for harsh environments
IP67 waterproof rating: Integrated sealing blocks impurities, ensures stable operation in humid conditions
Quick-connect system: Manual operation with clear feedback prevents poor contact

Main Features

Push lock quick release system
Multiple pin configurations available: 2Pin-18Pin for power and signal applications
Field assembly versions: Wire-to-wire and wire-to-board options
Current rating: 5A continuous operation
Cable assembly service and OEM/ODM customization supported

Electrical Parameters

Number of Poles	14Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Wire Size OD Range	3.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.
