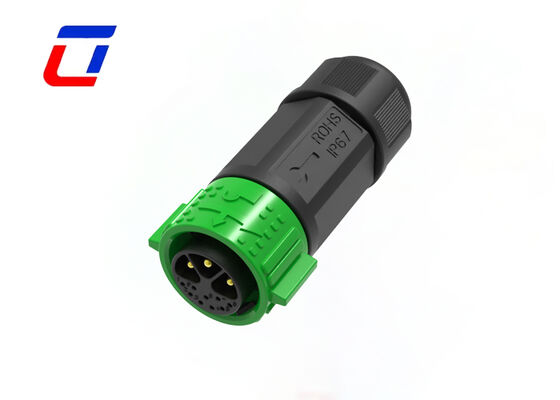

M25 3+13 Pin IP67 Waterproof Connector Quick Release Multi Pin Connectors For Solar

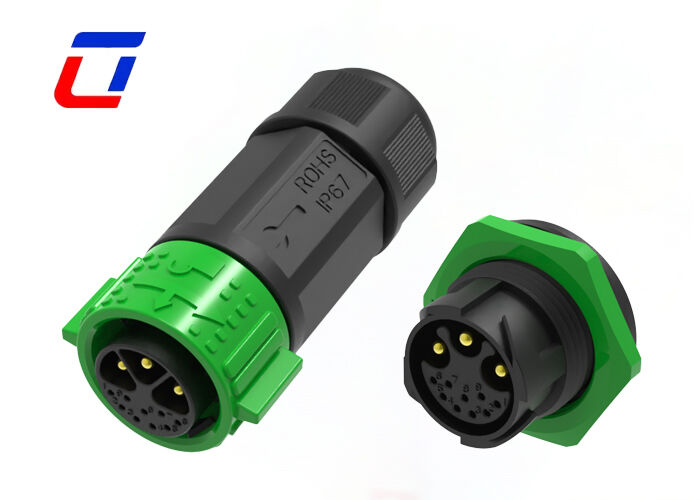

3+13 Pin Plug Socket Waterproof M25 Data And Power Connector IP67, Quick Locking
Main Features
- Push lock quick release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
- Field assembly version: both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Product Specifications
16-Pin 3+13 Split Core Design

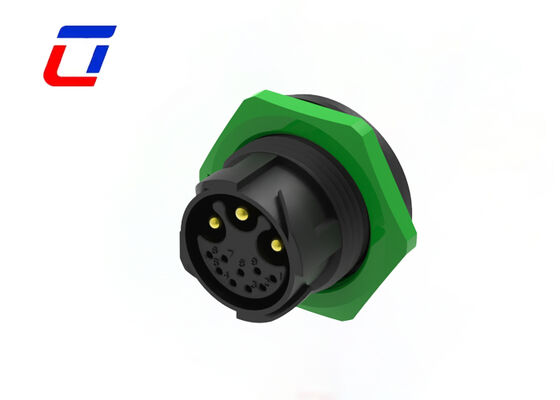

16-pin split layout (3 power + 13 signal pins) eliminates cross-interference, supports industrial power supply and multi-precision signal transmission. M25-compliant circular structure with panel-mount support, precise pin alignment for stable connections.
Waterproof & Durable Circular Structure
High-grade waterproof seal with custom rubber ring resists rain, sand, oil, and humidity. Circular design eases panel installation, offers strong impact/torsion resistance to handle device vibrations and reduce connection failures.
Panel-Mount Ready for Easy Integration
Standard mounting buckles and fixing holes enable fast panel integration. Tight, gap-free fit ensures connection stability and improves equipment aesthetics.
Custom ODM Solutions Available
Supports ODM customization (interface locks, terminal materials, waterproof upgrades, shell colors, etc.). All custom products meet industrial quality standards to fit diverse industry needs.
Application Industries
Communications Application, product coding machines, inventory product coding, inkjet systems, Solar System, industrial inkjet equipment, Electric power equipment, Laboratory forensic & pathology equipment, Communications equipment, Heavy machinery
Technical Specifications
| Connector System | Cable-to-Board |
| Sealable | Yes |
| Connector & Contact Terminates To | Wire & Cable |
| Circular Connector Type | Plug, Receptacle |
| Shell Type | Plastic Shell |
| Product Type | Connector Kit |
| Number of Positions | 3+13 |
| Number of Signal Positions | 13 |
| Contacts Preloaded | Yes |
| Operating Voltage (VAC) | 300V max. |
| Operating Voltage (VDC) | 300V max. |
| Shell Material | PA66 |
| Circular Connector Insulation Material Type | Low Fire Hazard Thermoplastic |
| Hermetically Sealed | Yes |
| Entry Style | Side |
| Environmental Protection Type | Elastomer Sealed, Hermetically Sealed |
| O-Ring Material | Elastomer Sealed, Hermetically Sealed |
| Environmental Protection | Yes |
| Contact Current Rating (Max) (A) | 15A max. |
| Circular Connector Contact Type | Pin-Socket |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Wire Size (AWG) | 20AWG, 18AWG, 16AWG, 14AWG |
| Operating Temperature Range (°C) | -40 ~105°C |
| IP Water Sealing Level | IP67 |
| IP Dust Sealing Level | 6 |
| UL Flammability Rating | UL 94V-0 |
