M25 Panel Mount Power Connector 3 Pin 50A Quick Lock Electrical Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE,TUV,UL,RoHS
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C,Western Union
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Current:	50A Max. For Power	Number Of Pins:	3 Pin
Waterproof Rating:	IP67	Operating Temperature:	-40℃-+105℃
Flame-resistant Rating:	UL94-V0	Housing Material:	PA66
Highlight:	M25 panel mount power connector 3 pin , 50A quick lock electrical connectors , waterproof plug socket with warranty

M25 Panel Mount Power Connector 3 Pin 50A Quick Lock Electrical Connectors

Product Overview

Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector designed for critical power connections in harsh environments. This robust solution delivers high-current transmission performance and superior environmental adaptability, making it essential for industrial automation, new energy applications, and outdoor machinery operations.

Key Features

Standardized M25 circular self-locking mechanism
3-pin configuration for three-phase or multi-circuit DC/AC power
Maximum rated current of 50A for mid-to-high-power equipment
IP67 waterproof and dustproof rating
Resistant to water splashes, short-term immersion, dust, and oil spills
Stable operation in challenging environments with humidity, dust, and vibration

Application Industries

Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Technical Specifications

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

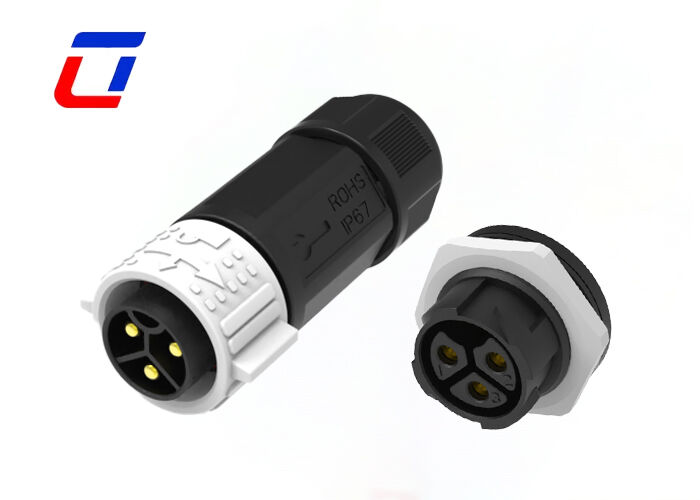

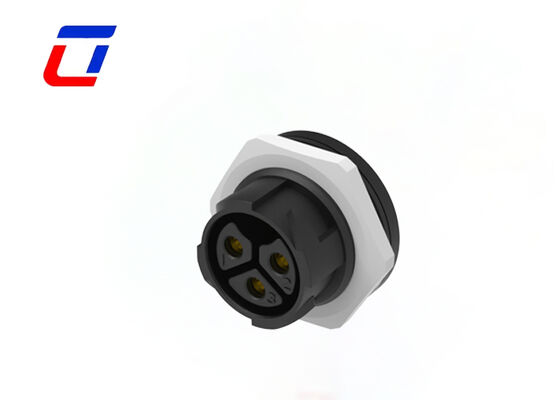

Product Images

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: Do you support product customization?

A: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q: How can I get samples?

A: We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate sample shipment.

Q: How do I place an order? What is the process?

A: The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.
