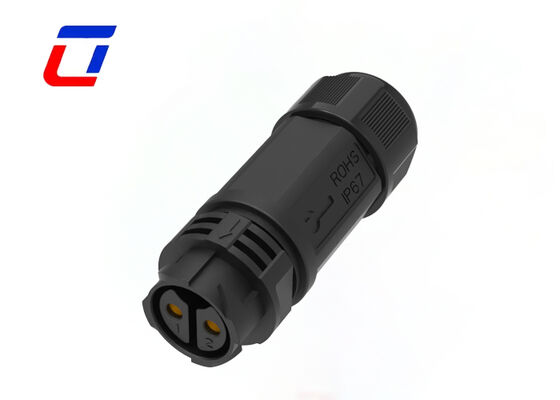

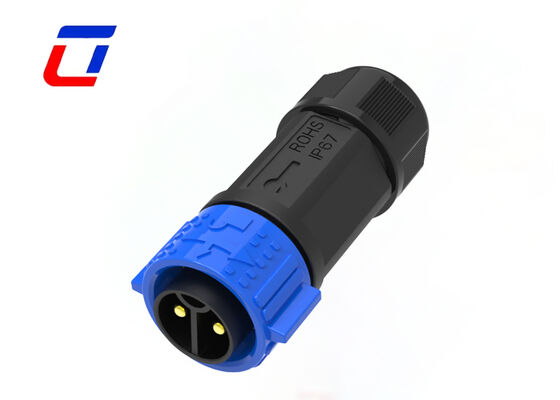

M25 2 Pin High Current Power Connector 600V Waterproof Cable To Cable Connector
Product Overview

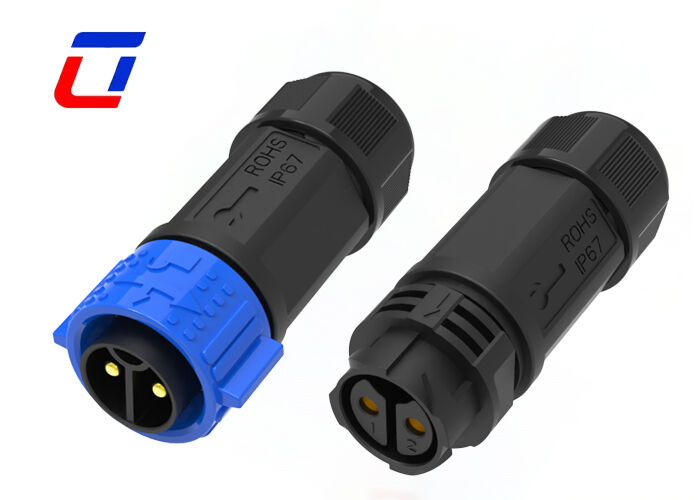

M25 2 Pin Waterproof DC Power Connector 50A Male To Female Connectors
Main Features
- Push lock quick release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
- Field assembly version: both wire to wire and wire to board options
- High current rated waterproof connector good choice up to 50A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application Industries
- Communications Application
- Product coding machines
- Inventory product coding
- Inkjet systems
- Solar System
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Communications equipment
- Heavy machinery
Product Description
The M25 2-Pin Male-to-Female Waterproof DC Power Connector (50A Rating) is a premium connectivity solution engineered exclusively for high-current DC power transmission applications. Tailored for DC power supply networks, it serves as a reliable core component for outdoor and harsh-environment equipment that demands uninterrupted power, thanks to its superior waterproof capability and consistent electrical conductivity.
Featuring the standardized M25 self-locking structure, this 2-pin connector ensures precise compatibility with matching circuit interfaces. Its male-female plug-and-play structure enables swift assembly while maintaining a secure, low-resistance connection. Boasting a maximum rated current of 50A, it perfectly caters to the power requirements of mid-to-high-power devices, including new energy vehicle charging piles, outdoor communication base stations, industrial automation machinery, marine vessels, and solar photovoltaic installations.
The connector's housing is crafted from high-grade PVC material, delivering exceptional resistance to aging and corrosion for long-term durability. Internally, the pin cores are manufactured from high-purity brass and finished with a gold-plated coating. This dual-material design minimizes contact resistance significantly, cuts down heat generation during power transmission, enhances oxidation resistance, and ultimately extends the product's service lifespan.
With an IP67 waterproof rating, paired with a self-locking mechanism, the connector effectively withstands the ingress of rain, dust, and oil. It guarantees stable performance in humid, dusty, or even temporary water-submersion conditions, offering comprehensive safety protection for the power supply of connected equipment.
Electrical Parameters
| Number of Poles |
2Pin waterproof connector |
| Current Rating |
50A max |
| Voltage Rating |
600VAC max |
| Durability Voltage |
2500VAC @ 60 s. |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
6.5mm ~ 10mm |
| Max Wire Size OD |
10.5mm ~ 18mm |
| Max. Cable Cross Section Area |
0.5mm² ~ 6.0mm² |
Production Dimension
More Technical Details
Frequently Asked Questions
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Can I have custom label?
Yes, of course, you can make your own private label and package. If you need to design the packaging, we also have professional designer to serve you.
What is your Minimum Order Quantity (MOQ)?
The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
