20A M25 5 Pin Electrical Cable Connectors PA66 Connectors Waterproof

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	5Pin	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Application:	Solar Panel
Color:	Red/Black/Green	Sealing Material:	Waterproof O-Ring
Highlight:	50A high current waterproof cable connector , M25 5 pin electrical connector , PA66 waterproof cable connector

20A High Current M25 5 Pin Electrical Cable Connectors PA66 Connectors Waterproof

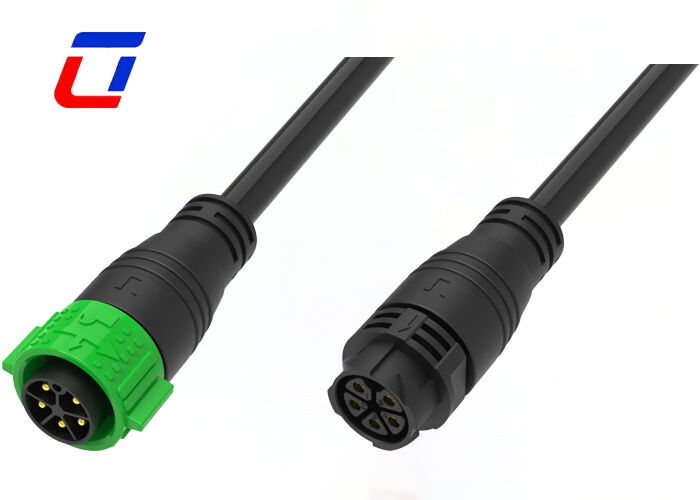

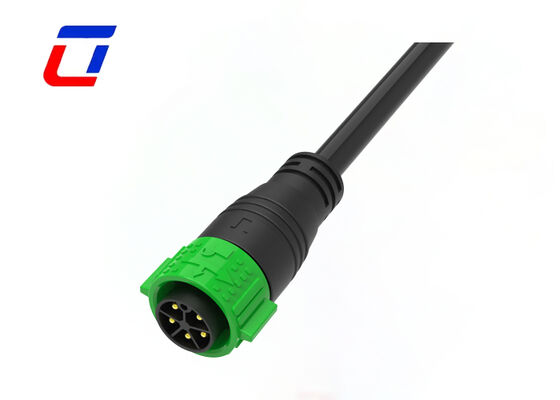

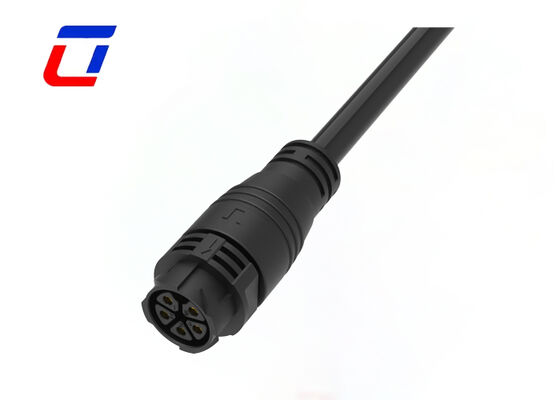

The 20A M25 5 Pin Electrical Cable Connector is a high-performance waterproof connector engineered with PA66 material, designed to deliver reliable electrical connections in harsh environments. It integrates excellent mechanical strength, weather resistance, and sealing performance, making it an ideal choice for various industrial, automotive, and outdoor electrical applications.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin and 2+20Pin available
Field assembly version: both wire to wire and wire to board options
High current rated waterproof connector good choice up to 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Overview

High Current Capacity: Rated for 20A current, the connector ensures stable power transmission for medium-power electrical devices, avoiding overheating and ensuring long-term operational safety.

Standard M25 Specification: Adopts push locking, compatible with common M25 cables and installation interfaces, facilitating quick assembly and replacement, and improving construction efficiency.

5-Pin Design: Equipped with 5 precision pins, it supports power transmission, meeting the needs of complex electrical systems with clear pin definition and low contact resistance.

PA66 Material Construction: Made of high-quality PA66 (polyamide 66) plastic, the connector boasts exceptional mechanical toughness, wear resistance, and resistance to high and low temperatures (-40℃ to 105℃). It is also resistant to chemicals, UV radiation, and aging, ensuring durability in harsh outdoor or industrial conditions.

Excellent Waterproof Performance: Features a professional waterproof sealing structure IP67, effectively preventing water, dust, and moisture from entering the connector. It maintains stable performance even in rainy, humid, or dusty environments, protecting the internal electrical components from damage.

Electrical Parameters

Number of Poles	5Pin waterproof connector
Current Rating	20A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	20A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details

Frequently Asked Questions

Q1: What is rated voltage?

Rated voltage, also known as operating voltage, depends mainly on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

Q2: Is there a discount for large-quantity orders?

Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

Q3: How many materials you can provide?

There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
