Name: PA66 M25 4 Pin Male To Female Connector 500V Push Lock Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Circular Connector

PA66 M25 4 Pin Male To Female Connector 500V Push Lock Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	4Pin	Current:	50A
Rated Voltage:	500V	Material:	Nylon
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	PA66 M25 waterproof power connector , 4 pin male to female push lock connector , 500V circular connector with push lock

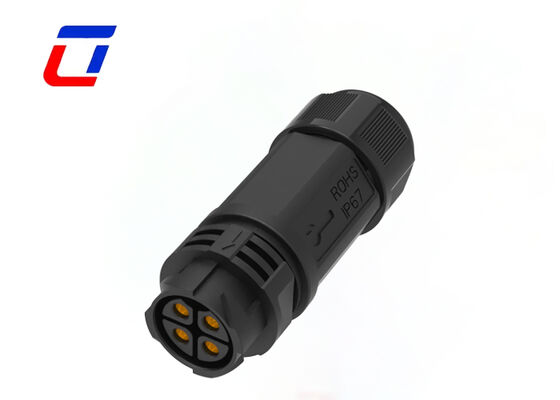

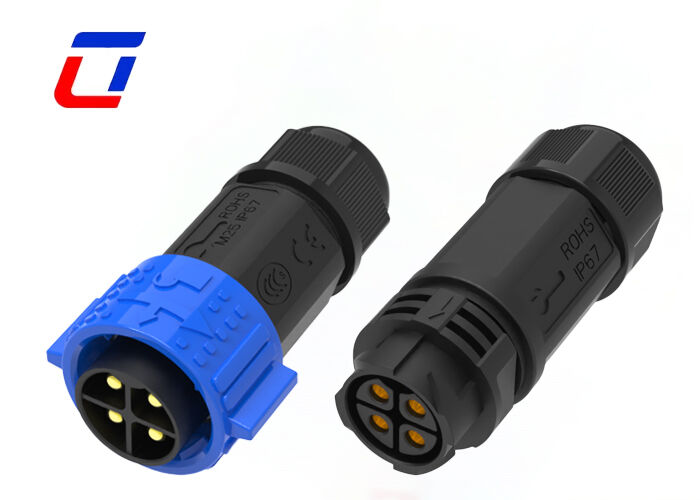

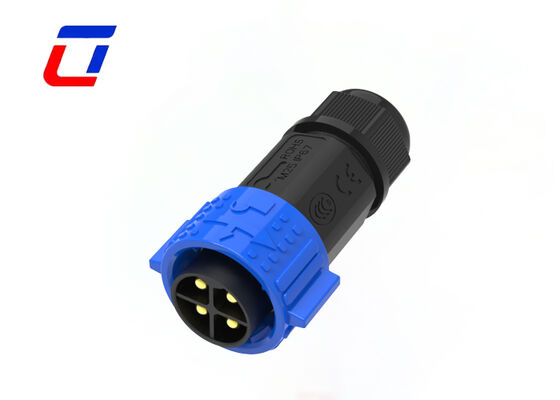

Waterproof Electrical 500V M25 4 Pin Waterproof Push Lock Connectors

Quick Details of IP67 Waterproof connector

1. M25 Standard Specification, Push-Lock Tool-Free Design, Doubled Installation & Maintenance Efficiency

Adopting a push-lock structure complying with M25 installation standards, it subverts the traditional tool-dependent installation mode. No wrenches or other auxiliary tools are required; it automatically locks and positions after insertion. The single plug-in operation time is ≤1 second, greatly reducing the time cost of equipment assembly and later maintenance. Equipped with an enhanced anti-loosening buckle, the connection stability can be improved by 60% in high-frequency vibration environments, fundamentally eliminating the risk of accidental disconnection caused by vibration and ensuring the continuous and stable operation of the equipment.

2. 500V High-Voltage Bearing Capacity, Full-Link Safety Protection, Meeting Industrial Standards

The rated working voltage is as high as 500V, designed specifically for medium and high-voltage electrical equipment scenarios. The insulating shell has passed rigorous high-voltage withstand tests with a breakdown voltage of ≥1500V, which can effectively isolate potential safety hazards such as electric leakage and electric arcs, building a full-link safety barrier for the equipment's circuit system. All safety indicators of the product comply with industrial electrical safety specifications, and it can be safely applied to various connection scenarios of medium and high-voltage electrical equipment.

3. IP67 Waterproof & Dustproof, All-Weather Adaptability to Harsh Environments

Innovatively adopting an integrated sealing structure of double-layer silicone sealing rings and M25 specification tight shell, it has successfully achieved IP67 protection rating. It can maintain normal working status when immersed in 1m water depth for 30 minutes, and at the same time, it can effectively resist the erosion of dust, oil stains and moisture. It is easily adaptable to harsh working conditions such as outdoor, humid and dusty workshops, realizing all-weather stable operation.

4. 4-Pin Independent Integration, Simultaneous Power & Signal Transmission, Saving Interface Space

The 4 pin cores adopt an independent layout design, supporting simultaneous transmission of power and signals. No additional special signal connectors are needed, which greatly saves the equipment interface space. This design is especially suitable for modern electrical equipment with miniaturization and integration trends, helping to streamline and optimize the overall structure of the equipment while ensuring functional diversity.

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin,5+2Pin and 2+20Pin available
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 50A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin waterproof connector
Current Rating	50A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Operation Parameters
Voltage Rating	600VAC max
Current Rating	30A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Production Dimension

More Technical Details
