Name: M25 Male Female Panel Mount Connector Gold Plated 3+9 Pin Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Home Products Waterproof Plug Socket

M25 Male Female Panel Mount Connector Gold Plated 3+9 Pin Waterproof Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5~8 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Pins:	3+9 PIN	Waterproof Rating:	IP67
Temperature Range:	-40℃~+105℃	Material:	Nylon
Connecting Mode:	Push Lock	Insulation Material:	PVC
Highlight:	M25 waterproof panel mount connector , gold plated 3+9 pin connector , male female waterproof plug socket

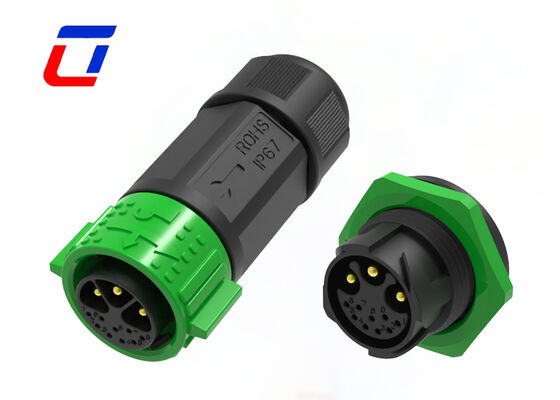

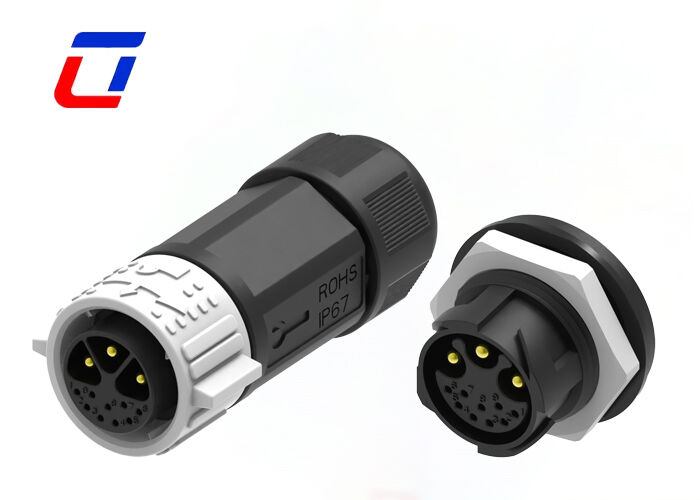

Multi Pin Connector Types Of 3+9 Pin M25 Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin,3+2Pin,3+3Pin,3+9Pin,3+13Pin and 2+20Pin
Field assembly version:both wire to wire and wire to board options
Current rated 30A+5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Quick Details of 6Pin Connector Male female

1. Key Specifications

Core Craftsmanship: Gold-plated terminal design enhances electrical conductivity and anti-oxidation performance, prolonging the product's service life
Interface Details: M25 dimension with 3+9 Pin multi-pin configuration, enabling Male-Female mating and compatible with Panel Mount applications
Electrical Ratings: 30A+5A rated current , ideally suited for power supply and signal transmission requirements of medium-power devices
Protective Performance: Waterproof construction ensures reliable operation in harsh outdoor environments, effectively resisting humidity and dust

2. Core Product Advantages

Gold-Plated Terminal Benefits: Minimal contact resistance ensures efficient and stable electrical transmission, with outstanding anti-oxidation and corrosion resistance
Easy Installation & Docking: Supports Panel Mount, featuring Male-Female mating structure for precise positioning and hassle-free assembly/disassembly
Integrated Multi-Pin Function: 3+9 Pin independent circuits enable simultaneous power supply and multi-channel signal transmission, achieving high functional integration
Outdoor Durability: Sealed waterproof design effectively withstands rain, moisture and dust, making it suitable for long-term outdoor service

3. Application Scenarios

Widely used in outdoor monitoring equipment, outdoor lighting systems and other scenarios requiring outdoor waterproof power supply
Suitable for industrial automation production lines, outdoor testing instruments and other equipment that need to transmit power and multi-channel signals at the same time
Applicable to various medium-power outdoor electrical equipment connection needs requiring Panel Mount and Male Female docking

4. Custom Services

Provides customization services for M25 3+9 Pin multi-pin connectors, which can be adapted according to actual installation dimensions and cable specifications (wire diameter/length)
For customization, detailed usage scenarios and technical parameters need to be provided, and a professional team will provide exclusive Panel Mount adaptation solution

Product Type Features
Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Configuration Features
Number of Positions	3+9
Number of Signal Positions	9
Contacts Preloaded	Yes
Electrical Characteristics
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Features
Contact Current Rating (Max) (A) .	30A+5A max.
Circular Connector Contact Type	Pin-Socket
Mechanical Attachment
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Dimensions
Wire Size (AWG)	20AWG,18AWG,16AWG,14AWG,
Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Industry Standards
UL Flammability Rating	UL 94V-0

Production Dimension
