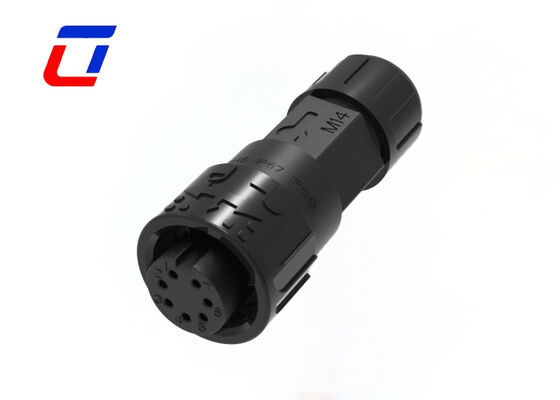

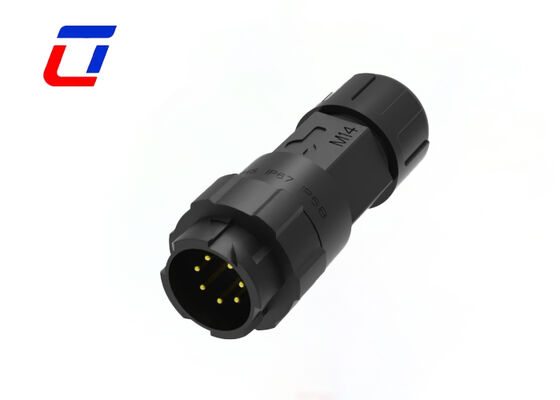

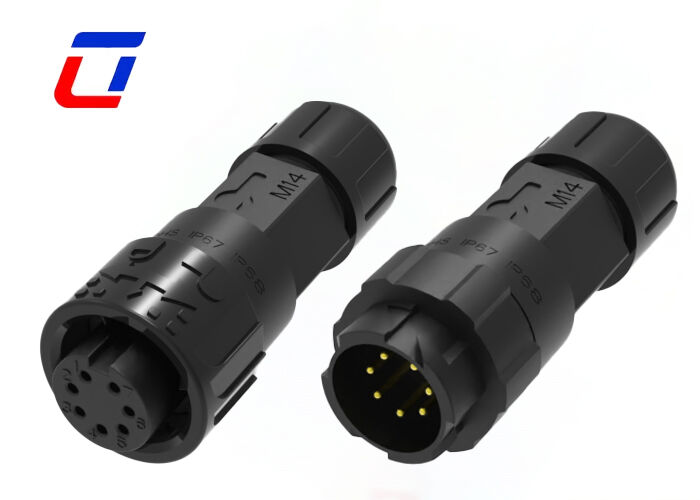

Name: M16 Waterproof 7 Pin Connector Low Voltage Automotive Brass Gold-Plated Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Circular Connector

M16 Waterproof 7 Pin Connector Low Voltage Automotive Brass Gold-Plated Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	7Pin	Connector Type:	Male To Female
Current Rating:	5A	Rated Voltage:	60V
Material:	Nylon	Protection Level:	IP67
Highlight:	M16 waterproof 7 pin connector , low voltage automotive brass connector , gold-plated waterproof circular connector

M16 Male Female 7 Pin Waterproof Automotive Connectors For Low Power Signal

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin ,7Pin,8Pin,2+4Pin
Field assembly version:wire to wire / wire to board
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

Core Parameters & Certification: This connector features an M16 form factor with a 7-pin configuration and a housing made of PA66 engineering plastic. CE-certified, it fully complies with low-voltage equipment safety standards, boasting a rated operating voltage of 60V and a rated current of 5A, specifically engineered as a dedicated connection component for low-voltage data cables
Core Data Transmission Performance: The 7-pin contacts are constructed from high-purity copper alloy with a gold-plated finish, which significantly reduces data transmission loss. It can stably transmit various low-voltage data signals (such as sensor data and control command data), effectively preventing packet loss or delay and ensuring complete signal transmission
Protection & Structural Advantages: It achieves IP67 waterproof and dustproof rating, completely isolating rainwater, moist water vapor and environmental dust through the dual protection of a professional sealing rubber ring and push locking structure. The male-female quick-plug design meets the efficient needs of wiring and maintenance, while it also has excellent anti-electromagnetic interference capability, which can resist radiation interference from surrounding electrical appliances and avoid data crosstalk
Application Scenarios: Its core advantages focus on data transmission stability and low-voltage safety, making it suitable for complex environments such as outdoor and humid areas. Widely used in various low-voltage data transmission scenarios, it provides reliable connection guarantee for data communication systems and perfectly matches the transmission needs of low-voltage data cables

Electrical Parameters
Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm²~ 2.5mm²

Design Sketch

M16 Waterproof 7 Pin Connector Low Voltage Automotive Brass Gold-Plated Connectors 1
