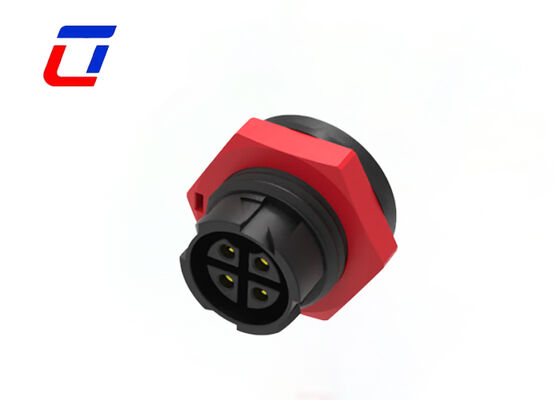

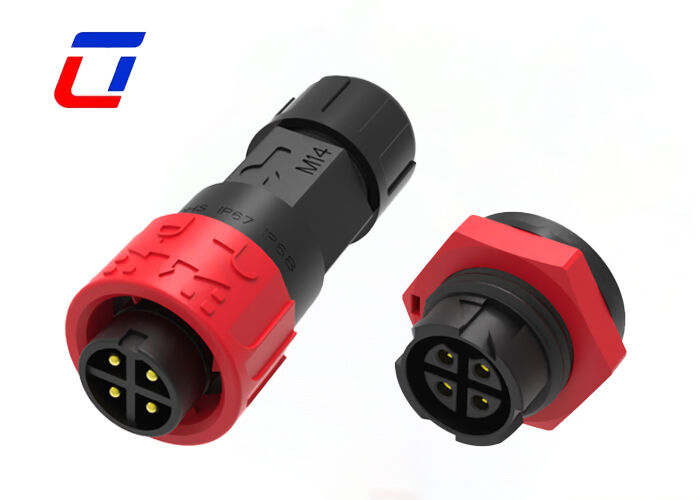

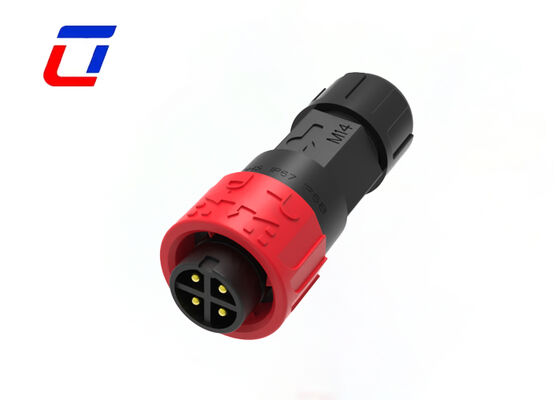

Name: M16 Male Female Connector 10A 4 Pin TUV Plug Socket Connectors For Power
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Home Products Waterproof Plug Socket

M16 Male Female Connector 10A 4 Pin TUV Plug Socket Connectors For Power

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs
Model Number:	M16

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	High Quality export carton
Delivery Time:	3~6 working days
Payment Terms:	T/T,D/A,D/P,MoneyGram,L/C
Supply Ability:	100000 pairs each month

Contact Now

Detailed Product Description

Number Of Contacts:	4 Pin	Current:	Max 10A
Voltage Rating:	300 V	Waterproof Level:	IP67
Material Of Copper Needles:	Copper Alloy	Flame-resistant Rating:	UL94-V0
Highlight:	M16 4 pin power connector , 10A waterproof plug socket , TUV certified M16 connector

4 Pin LED Waterproof Connector , M16 10A PA66 Push Locking Wire To Wire Connectors

Description of Industrial Waterproof Circular Connector

Core Parameters: Adopts M16 standard interface, 4-pin configuration, rated current 10A, suitable for power transmission scenarios; TUV certified, complying with relevant safety standards for safe use
Protection Performance: Equipped with reliable waterproof and dustproof capabilities, effectively resisting dust intrusion and slight water stain erosion, suitable for power connection needs under various complex working conditions
Structural Advantages: Male and female plugs feature precise and smooth insertion/extraction, firm and tight connection, excellent anti-vibration and anti-fall performance, ensuring stable and continuous power transmission
Application Scenarios: Widely used in industrial control power supplies, automation equipment power supply, instrument power connection and other scenarios, providing reliable connection support for stable power supply of various equipment

Main Feature

Push lock quick release system,hassle-free operation.
Multic-core are available for selection: 2Pin,3Pin,4Pin,5Pin,2+4Pin,7Pin,8Pin.
Field assembly version:wire to wire / wire to board
High current rated waterproof connector good choice up to 10A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

M16 Male Female Connector 10A 4 Pin TUV Plug Socket Connectors For Power 0

More Technical Details

M16 Male Female Connector 10A 4 Pin TUV Plug Socket Connectors For Power 1

FAQ

Q1:How many materials you can provide?

A1:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

Q2:Do you support product customization?

A2: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q3:What is your Minimum Order Quantity (MOQ)?

A3: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long - term cooperation.
