Name: 300V 16 Pin Male To Female Cable Connector M19 Data Transfer Circular Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Cable Connector

300V 16 Pin Male To Female Cable Connector M19 Data Transfer Circular Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Pin:	16Pin
Rated Voltage:	300V	Material:	Nylon
Operating Temperature:	-40℃-+105℃	Flame-resistant Rating:	UL94-V0
Highlight:	300V waterproof cable connector , 16 pin M19 circular connector , male to female data transfer connector

M19 IP67 Circular Connectors 500V Male To Female Industrial Connector

Quick Description

1. 16-Pin Multi-Channel Design, Suitable for 300V High-Voltage Data Transmission

Featuring a precision 16-pin arrangement, this connector is exclusively designed for male-to-female cable direct connection scenarios, supporting 300V voltage rating output and high-speed synchronous data transmission. The 16 pins are accurately aligned to enable independent transmission of multi-channel signals, effectively avoiding signal crosstalk. It can not only meet the high-voltage power supply needs of industrial equipment but also ensure the accuracy and stability of data transmission. The compact M19 circular structure is perfectly suitable for various industrial scenarios requiring high-voltage power supply + data interaction, such as automated production lines, outdoor testing equipment, and high-voltage electrical terminals.

2. Fully Sealed Protection Structure for Stable Operation in Harsh Environments

Adopting an integrated circular sealing design with high-precision waterproof gaskets, it has excellent dustproof and waterproof performance, which can effectively resist rain washing, dust accumulation, moisture condensation and slight corrosive medium erosion. The product is suitable for harsh environments such as outdoors, humid workshops, and open-air projects. Even under working conditions with drastic temperature fluctuations (-40℃~105℃), it can still maintain stable electrical connection, ensuring uninterrupted 300V high-voltage power supply and data transmission.

3. Male-to-Female Quick Docking for Efficient Installation and Maintenance

Optimized male-to-female precise positioning structure, combined with convenient plug-and-play design, enables quick docking without professional tools. Built-in anti-loosening buckle mechanism, which automatically locks after docking, can effectively resist falling off caused by vibration, impact and accidental pulling, ensuring connection safety. Compared with traditional threaded connections, the installation efficiency is improve, which can greatly save labor and time costs whether it is batch deployment or later maintenance.

4. Industrial-Grade Material Selection for Long-Term Reliable Operation

The pins are made of high-conductivity copper alloy with silver plating on the surface, which not only reduces contact resistance and improves conductivity efficiency but also enhances oxidation resistance and corrosion resistance, suitable for long-term stable power supply of 300V high voltage. The shell is made of high-strength engineering plastic, which has excellent impact resistance, wear resistance and UV resistance, can withstand frequent plugging and environmental loss in industrial sites, and extend the service life of the product to more than 5000 plugging cycles.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	16Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

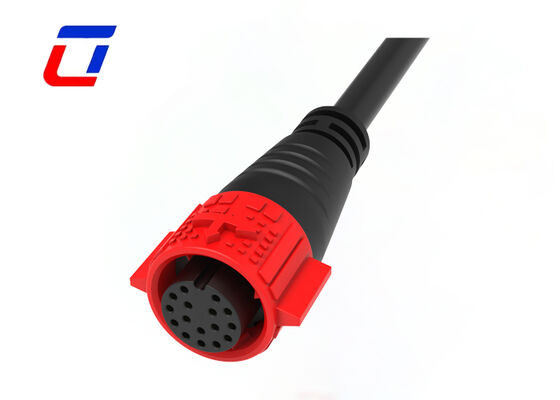

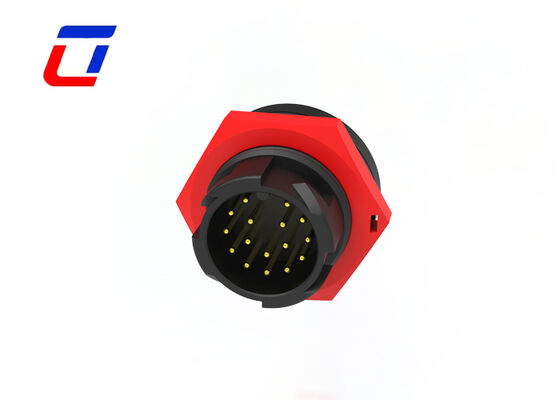

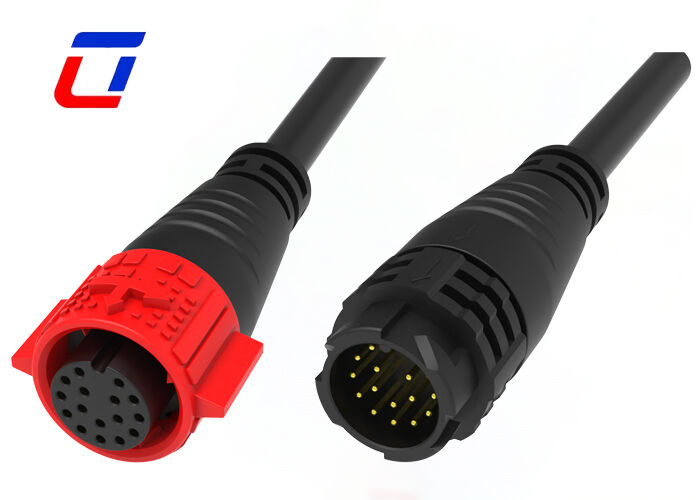

300V 16 Pin Male To Female Cable Connector M19 Data Transfer Circular Connectors 1

300V 16 Pin Male To Female Cable Connector M19 Data Transfer Circular Connectors 2

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
