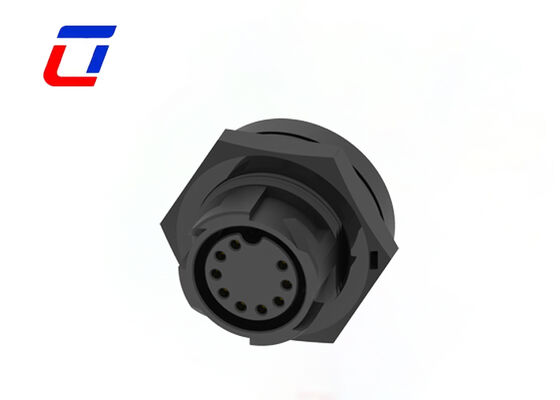

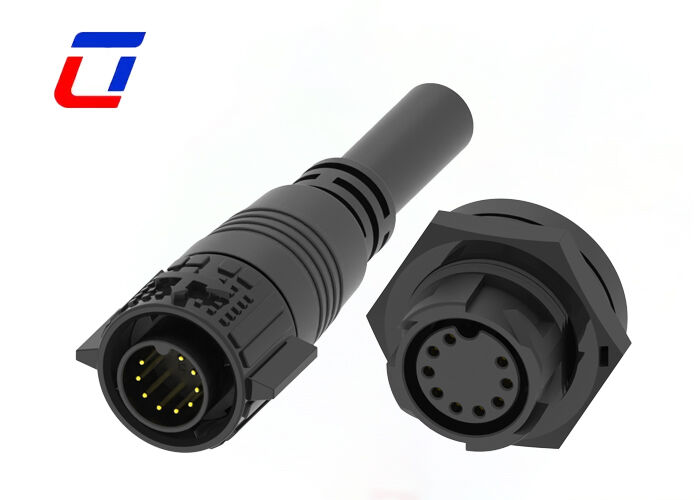

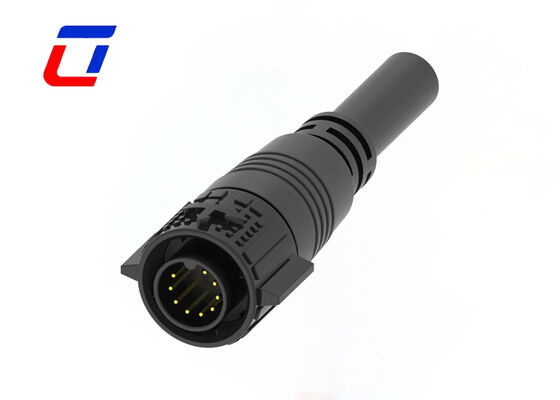

9 Pin Data Connector M19 IP67 Waterproof Connector
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 5A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Quick Description
Featuring a precision 9-pin configuration, this connector is exclusively engineered for wire-to-board signal transmission scenarios. With pin spacing strictly compliant with industrial standards, it ensures accurate alignment with circuit boards and supports synchronous transmission of multi-channel low-interference signals. The compact M19 form factor perfectly fits the limited installation space inside equipment, enabling efficient signal interaction between cables and circuit boards without additional adapters. It is widely suitable for signal connection needs of outdoor sensors, monitoring devices, and industrial control terminals.
Adopting a molded one-piece forming process, it seamlessly integrates cables with the connector body. Combined with a high-precision sealing structure, it effectively prevents moisture and dust from invading through cable connection points. The product achieves a high protection level required for outdoor applications, withstanding rain wash, dust accumulation, UV radiation, and severe temperature fluctuations. It maintains stable signal transmission performance in harsh environments such as outdoor base stations, municipal lighting, and field detection equipment.
Integrated with a one-click quick-lock structure, it supports tool-free, one-handed operation. Simply align the male connector with the female header on the circuit board and press to achieve a secure lock, with an audible-click feedback design confirming proper connection. This mechanism not only eliminates the cumbersome operation of traditional threaded connections, significantly reducing installation time in outdoor high-altitude and confined spaces, but also effectively prevents signal interruption caused by vibration, wind, or accidental contact.
The signal pins are made of gold-plated copper alloy, featuring extremely low contact resistance and excellent anti-oxidation performance. Even for long-term use in high-humidity outdoor environments, it ensures the accuracy and stability of signal transmission. The connector housing is made of high-strength engineering plastic, which combines impact resistance, wear resistance, and corrosion resistance, providing reliable protection for the internal signal transmission structure and extending the overall service life of the product.
| Electrical Parameters |
| Number of Poles |
9Pin |
| Current Rating |
5 Amax. |
| Voltage Rating |
60VAC max |
| Durability Voltage |
500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 2.5mm2 |
Design Sketch
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to track my shipment?
A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
4. Q: What is your Minimum Order Quantity (MOQ)?
A: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long - term cooperation.
