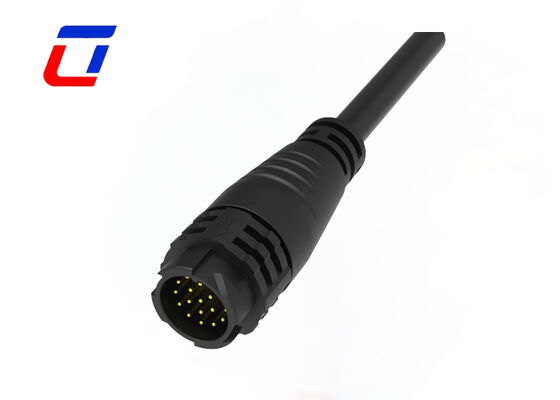

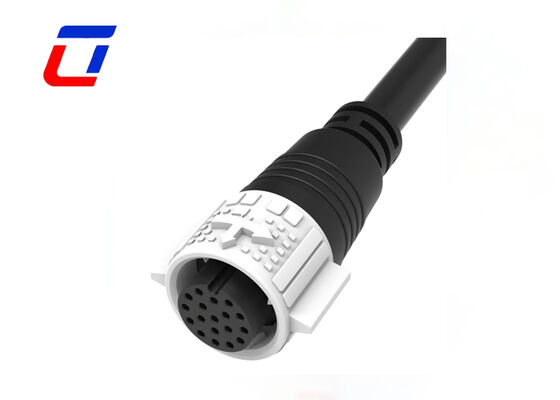

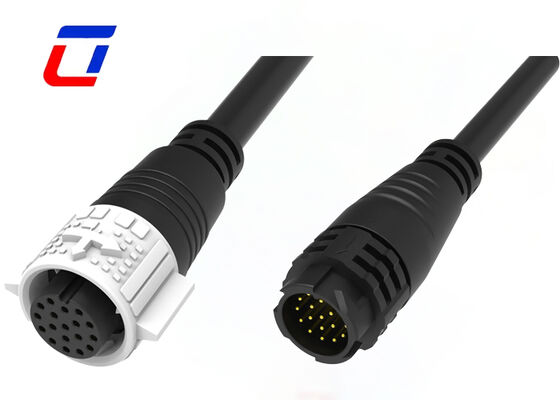

Name: 18 Pin Wire To Wire Plug Connectors CE M19 Waterproof Brass Gold-Plated Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof LED Connector

18 Pin Wire To Wire Plug Connectors CE M19 Waterproof Brass Gold-Plated Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Rated Voltage:	300V
Material:	Nylon	Color:	Blue White Red Yellow
Flame-resistant Rating:	UL94-V0	Function:	Waterproof/Dustproof/Sand-Proof
Highlight:	18 pin waterproof wire connector , M19 brass gold-plated connector , CE waterproof LED plug

18 Pin Circular Connector M19 Wire To Wire Outdoor Quick Lock Electrical Connectors

Quick Description

18-Pin High-Density Connectivity

Equipped with 18 precision-machined, alignment-optimized pins, this connector delivers concurrent transmission of multi-channel power and signal circuits within a compact M19 footprint. Its high-density architecture negates the requirement for multiple separate connectors, drastically reducing installation space and streamlining wiring complexity in intricate outdoor electrical configurations.

Outdoor-Rated Environmental Sealing

Crafted with a hermetically sealed housing and premium weather-resistant materials, the connector attains an IP67 ingress protection grade. It provides robust defense against rain, snow, dust accumulation, UV degradation, and extreme temperature variations, ensuring unwavering performance in harsh outdoor settings including landscape gardens, construction zones, and roadside infrastructure.

Tool-Free Quick-Lock Mating System

Integrated with a one-step quick-lock mechanism, the connector enables tool-free mating and unmating operations. A simple push-and-latch action establishes a secure lock between male and female halves, effectively preventing accidental disconnections induced by wind, vibration, or human error. This design also cuts installation time by up to 50% when compared to conventional threaded connectors.

Reliable Wire-To-Wire Termination

Optimized for wire-to-wire applications, the connector offers flexible termination options of crimp or solder (user-selectable), ensuring robust electrical contact and superior conductivity. The contact pins are constructed from gold-plated copper alloy, which minimizes contact resistance and inhibits oxidation—even in the high-humidity conditions typical of outdoor deployments.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	18Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How many materials you can provide?

A:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
