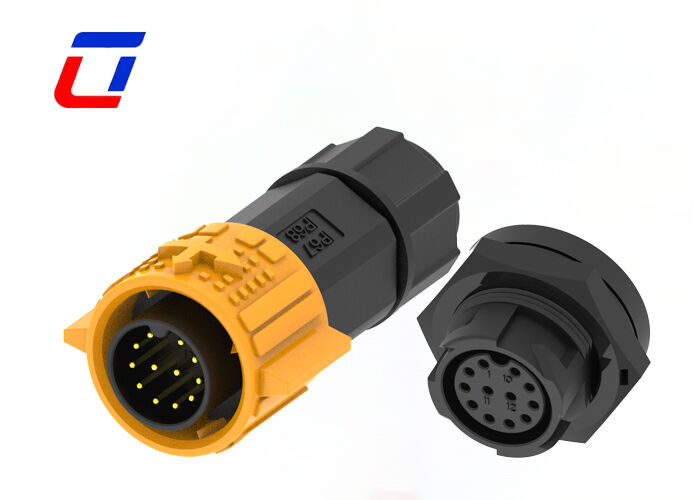

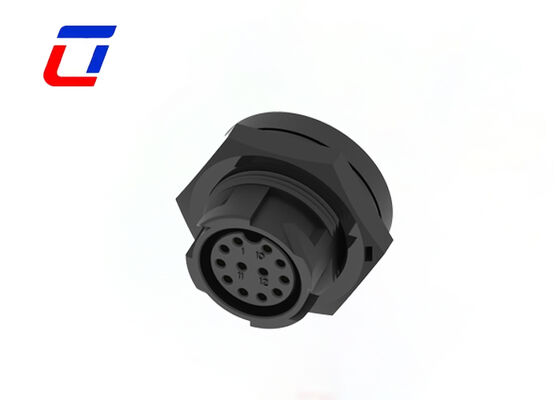

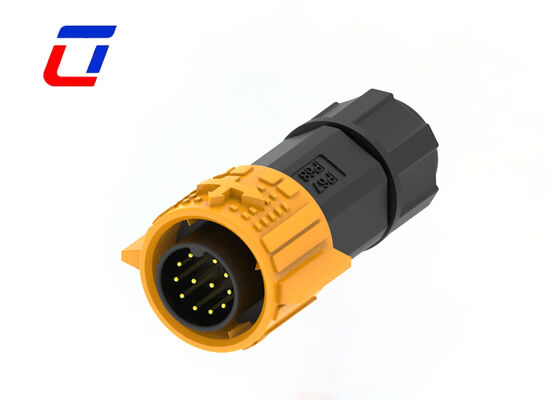

Waterproof Plug And Socket 12 Pin IP67 M19 Circular Connectors
Quick Description
Engineered exclusively for high-reliability operation in wet, harsh environments, this circular connector series delivers uncompromised performance with its IP67 dust and water ingress protection rating. Featuring a corrosion-resistant housing and secure 12-pin configuration, it guarantees stable, uninterrupted transmission of both power and signal. Designed for effortless mating and tool-free installation, its rugged construction ensures long-lasting durability across industrial equipment, outdoor electronics, lighting systems, and marine devices—making it the definitive choice for demanding applications requiring robust, moisture-sealed electrical connections.
What sets this model apart is its specialization in diverse power applications, paired with an intuitive push-lock mechanism. A simple one-second insertion triggers automatic locking, streamlining operation and eliminating accidental disconnections.
Another key advantage is its integrated power-and-signal design, a rapidly growing preference among device manufacturers. This innovative solution perfectly addresses the limitations of separate power and signal connectors, particularly ideal for space-constrained installations where compact, all-in-one connectivity is essential.
Ulinkcon further offers custom cable assembly services for all multi-pin connectors in this series. Simply provide detailed specifications of your cable requirements, and our dedicated team will deliver tailored solutions to meet your exact needs.
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Electrical Parameters |
| Number of Poles |
12 Pin |
| Current Rating |
5A max. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Operation Parameters |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 2.5mm2 |
Design Sketch
