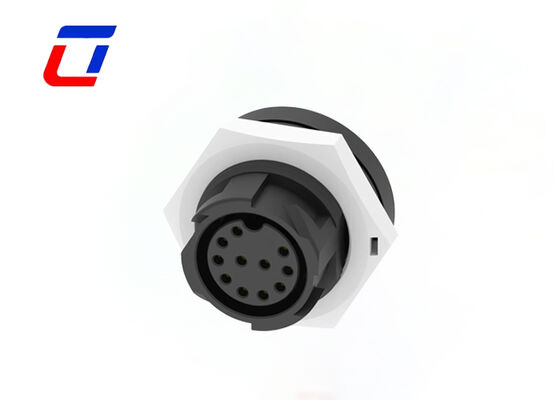

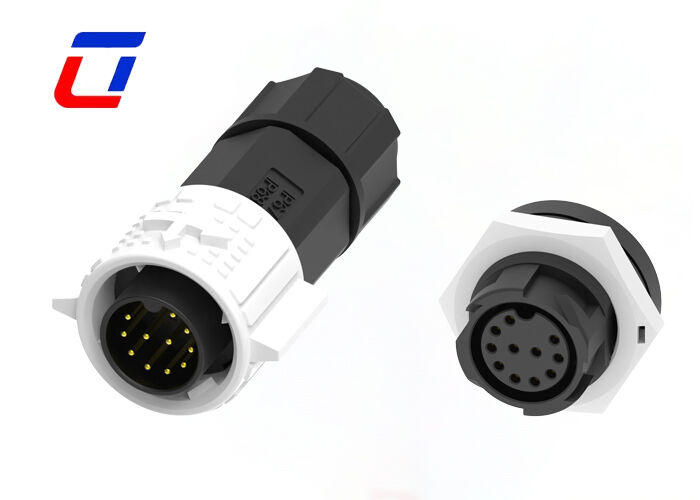

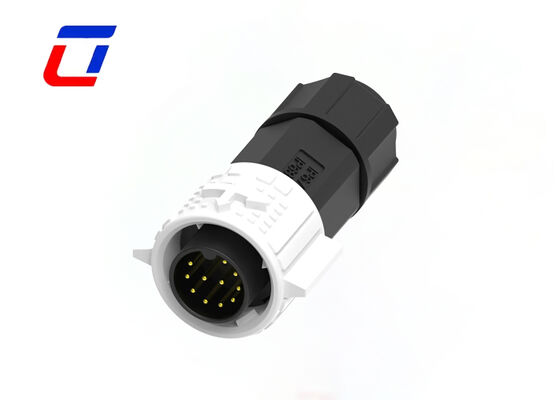

11 Pin Wire To Board Connector Types M19 IP67 Waterproof Connector Made In China

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Gender:	Male To Female	Pin:	11Pin
Current Rating:	5A	Material:	Nylon
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	11 pin waterproof wire connector , M19 IP67 waterproof plug socket , China made waterproof board connector

Landscape Lighting Wire M19 11 Pin Connectors LED Connectors For Electrical

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

Core Specification: Standard M19 circular structure, 11-pin configuration, specialized in wire-to-board connection. Supports stable transmission of mixed signals and power, compatible with 18-24AWG wires, suitable for medium and low voltage industrial application scenarios.
IP67 Waterproof Performance: Adopts integrated sealing design with high-quality fluorine rubber sealing rings, achieving IP67 ingress protection rating. Effectively resists rain, dust, oil stains and short-term immersion, ensuring reliable operation of wire-to-board connections in harsh outdoor or industrial humid environments.
Manufacturing & Quality Advantages: Made in China with strict quality control standards. The shell is made of high-strength PA66 engineering plastic, featuring excellent impact resistance, anti-aging and corrosion resistance; the pins are made of high-conductivity copper alloy, ensuring low contact resistance and stable signal/power transmission.
Application Scenarios: Widely used in industrial control equipment, outdoor electronic displays, automotive electronic systems, security monitoring devices, smart home appliances and other fields that require waterproof and reliable wire-to-board connections.

This model connectors is specialized for various Power Signal applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.

In This model connector, Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.

Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

Electrical Parameters
Number of Poles	11Pin
Current Rating	5 Amax.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
