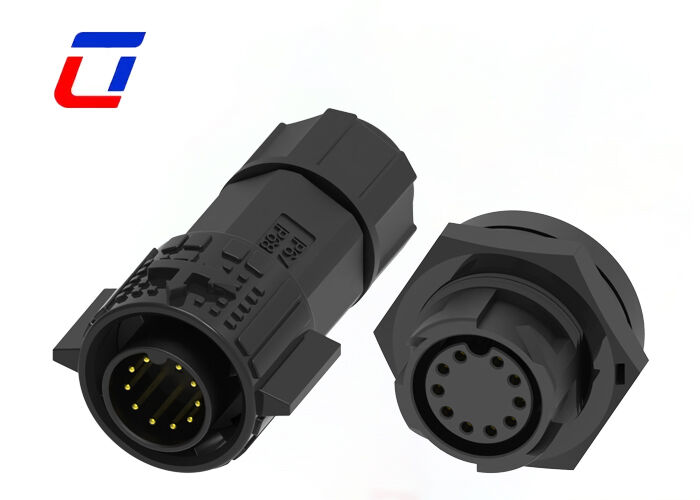

Quick Lock 10 Pin Waterproof Connector M19 Plug And Socket Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Connector Type:	Quick Connector	Pin:	10Pin
Material:	Nylon	Current Rating:	5A
Rated Voltage:	300V	Application Scenarios:	Outdoor LED Displays/Smart Building Control Systems
Highlight:	10 pin waterproof connector , M19 plug and socket , Quick Lock waterproof connector

M19 10 Pin Waterproof Quick Disconnect Wire Connectors ODM IP67 Circular Connectors

Quick Description

Core Specification: Standard M19 circular structure, 10-pin configuration, designed for plug-and-socket mating. Supports multi-channel signal and power synchronous transmission, compatible with 18-24AWG wires, suitable for medium and low voltage working scenarios.
Quick Lock Advantage: Adopts one-click quick locking mechanism, enabling fast and precise mating of plug and socket without auxiliary tools. The locking is firm and anti-loosening, effectively preventing accidental disconnection caused by vibration or external pulling, greatly improving installation and maintenance efficiency.
Waterproof & Durable Performance: Equipped with integrated sealing structure and high-quality silicone sealing ring, achieving IP67 waterproof and dustproof rating. It can resist rain, dust, oil stains and other harsh environmental erosion; the shell is made of high-strength engineering plastic, with anti-aging, corrosion-resistant and temperature-resistant (-40℃ to 105℃) properties, ensuring long-term stable use.
Application Scenarios: Widely used in industrial control systems, outdoor electronic equipment, automotive accessories, security monitoring devices, smart home systems and other fields that require reliable and efficient connection of multi-channel signals .

Electrical Parameters
Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

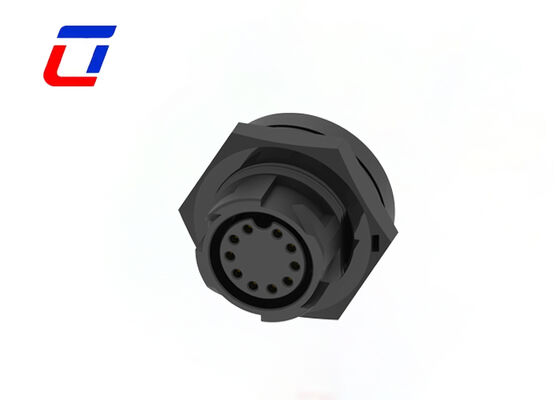

Quick Lock 10 Pin Waterproof Connector M19 Plug And Socket Connectors 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3. Q:How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.

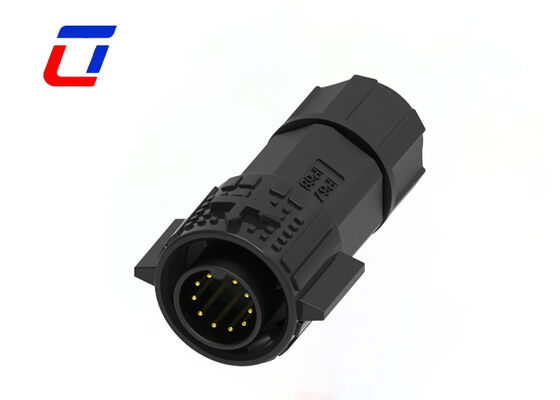

Quick Lock 10 Pin Waterproof Connector M19 Plug And Socket Connectors 2
