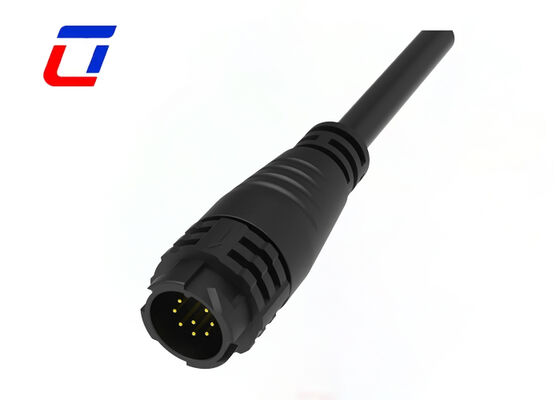

Name: M19 Led Quick Connector 8 Pin ODM Small Waterproof Wire Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Price: Negotiable USD
Availability: InStock

Home Products Waterproof LED Connector

M19 Led Quick Connector 8 Pin ODM Small Waterproof Wire Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,Western Union
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	8Pin	Connector Type:	Quick Connector
Material:	Nylon	Rated Voltage:	300V
Operating Temperature:	-40℃-+105℃	Flame-sesistant Rating:	UL 94-V0
Highlight:	M19 LED waterproof connector , 8 pin quick wire connector , small waterproof LED connector

M19 Led Quick Connector 8 Pin ODM Small Waterproof Wire Connectors

Product Overview

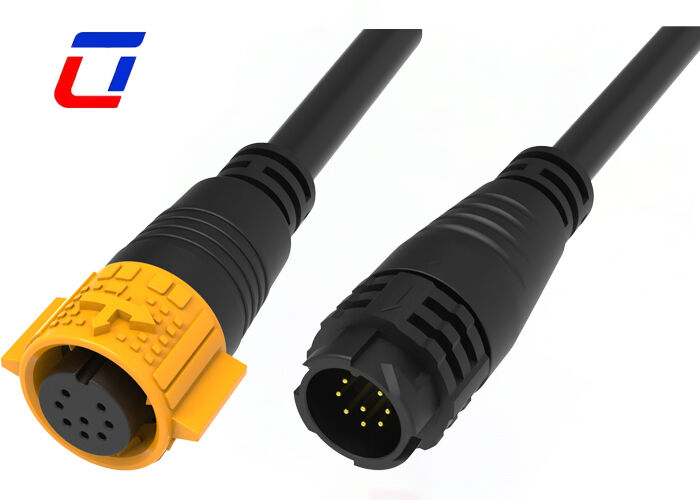

Tailored exclusively for outdoor data transmission, this M19 8-pin connector boasts three core strengths: 300V voltage tolerance, IP67 protection, and a tool-free quick-release mechanism. Its 8-pin layout enables multi-channel synchronous data transfer, while the male-female cable pairing with one-click quick-release simplifies installation and maintenance. Crafted with a high-strength plastic enclosure, it resists harsh outdoor erosion effectively.

Key Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Technical Specifications

Electrical Parameters
Number of Poles	8Pin
Current Rating	10A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.
Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 1.5mm²

Design Sketch

Frequently Asked Questions

Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q: How can I get samples?

A: We are pleased to offer samples, and the freight should be paid by the customer. Please provide your courier account number and detailed address, and we can send you samples immediately.

Q: What is rated voltage?

A: Rated voltage, also known as operating voltage, mainly depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.
