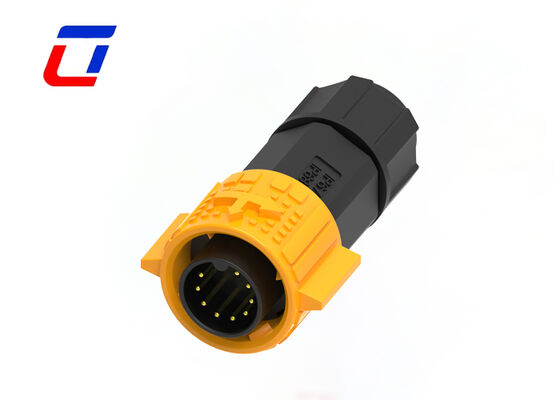

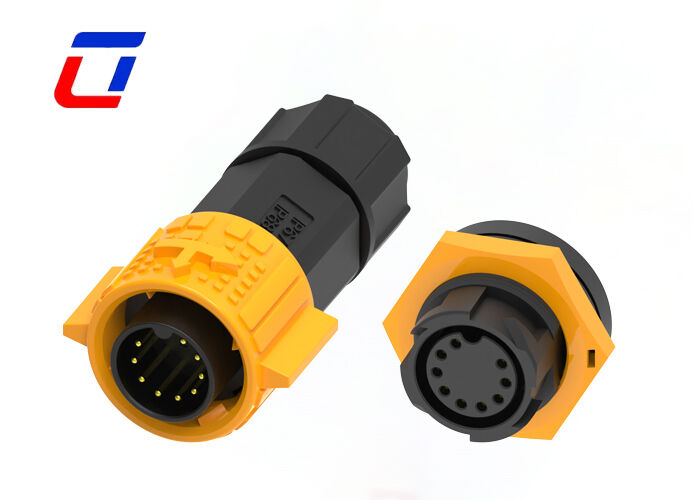

Name: 9 Pin Plug And Socket Connectors M19 Outdoor PA66 Data Brass Gold-Plated Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Plug Socket

9 Pin Plug And Socket Connectors M19 Outdoor PA66 Data Brass Gold-Plated Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	9Pin	Current Rating:	5A
Gender:	Male To Female	Material:	PA66
Protection Level:	IP67	Flame-resistant Rating:	UL94-V0
Highlight:	M19 waterproof plug connector , 9 pin brass gold-plated socket , PA66 outdoor data connector

9 Pin Plug And Socket Connectors M19 Outdoor PA66 Data Brass Gold-Plated Connector

9 Pin Data Connector M19 IP67 Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Overview

Core Parameters: M19 specification 9-pin male-female plug & socket, PA66 housing, brass gold-plated pins, designed specifically for outdoor data transmission.

PA66 Outdoor Adaptation: Weather-resistant, anti-aging and corrosion-resistant, accurately matching complex outdoor working conditions to ensure long-term stable use.

Data Transmission Advantages: Brass gold-plated pins have low contact resistance and strong anti-interference, ensuring clear and stable data transmission.

Applicable Scenarios: Suitable for outdoor data connection scenarios such as outdoor monitoring, intelligent lighting, environmental monitoring, with convenient male-female docking.

Technical Specifications

Electrical Parameters

Parameter	Specification
Number of Poles	9Pin
Current Rating	5A max
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s

Technical Parameters

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

Q: How can I get samples?

A: It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
