Name: Round Waterproof Connector M19 Multi Pin 2+20 Pin IP67 Gold Plated Wire Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Home Products Waterproof Circular Connector

Round Waterproof Connector M19 Multi Pin 2+20 Pin IP67 Gold Plated Wire Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Flame-resistant Rating:	UL94-V0	Material:	PA66&Copper Alloy
Protection Level:	IP67	Rated Voltage:	300V
Connector Type:	Self-locking Male To Female	Color:	White Blue Red Black Yellow
Highlight:	M19 waterproof circular connector , IP67 gold plated wire connector , 2+20 pin waterproof connector

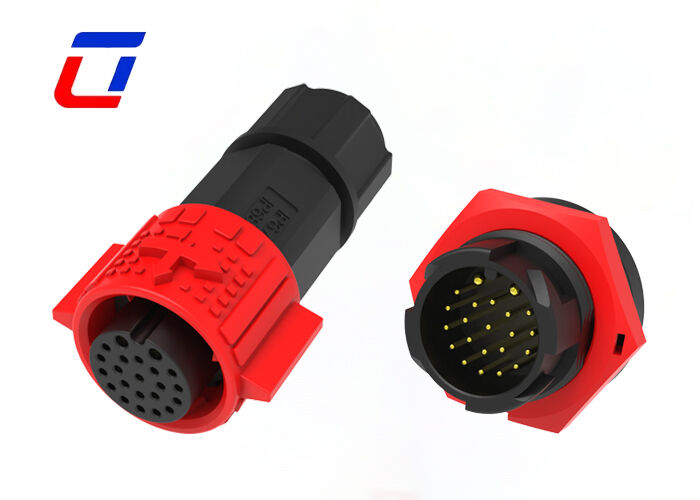

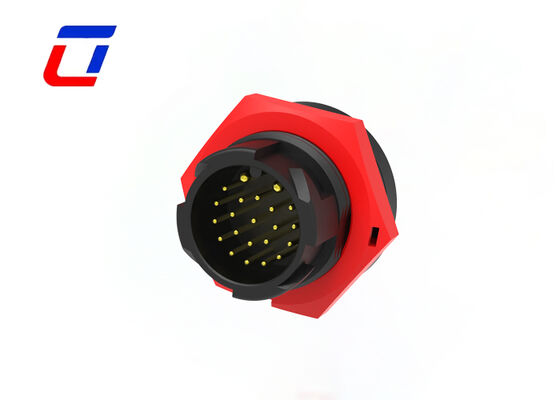

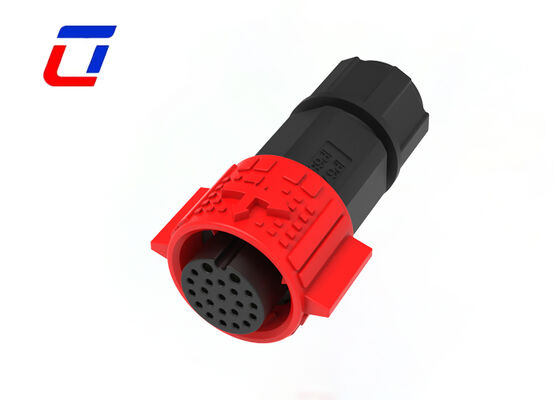

Round Waterproof Connector M19 Multi Pin 2+20 Pin IP67 Gold Plated Wire Connectors

Product Overview

Waterproof Multi 2 Pin For Power Connectors M19 300V Push Locking 20 Pin Data Connector

Key Features

Dual-Function Pin Arrangement: Dedicated 2-pin power zone for 300V power supply and 20-pin data zone for high-speed signal transmission, preventing cross-interference between circuits
IP67 Waterproof & Dustproof: Precision sealing gaskets and robust M19 housing provide complete protection against rain, splashing water, and dust accumulation
Push-Lock Mating System: Tool-free one-handed operation with audible click confirmation, reducing installation time by 40% compared to threaded connectors
Industrial-Grade Construction: High-conductivity copper alloy with silver plating for power pins and gold-plated copper alloy for data pins to minimize contact resistance

Application Industries

Growth Lights Communications Equipment Product Coding Machines Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Equipment Heavy Machinery

Electrical Specifications

Number of Poles	22-pin waterproof connector
Current Rating	20A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC maximum
Current Rating	20A maximum
Minimum Wire Size OD	3.0mm - 6.0mm
Maximum Wire Size OD	8.0mm - 10.0mm
Maximum Cable Cross Section Area	0.5mm² - 2.5mm²

Product Design
