M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Current Rating:	5A	Pin:	12Pin
Rated Voltage:	300V	Material:	Nylon
Color:	White Blue Red Black Yellow	Operating Temperature:	-40℃-+105℃
Highlight:	M19 waterproof panel mount connector , 12 pin quick disconnect connector , wire to board waterproof connector

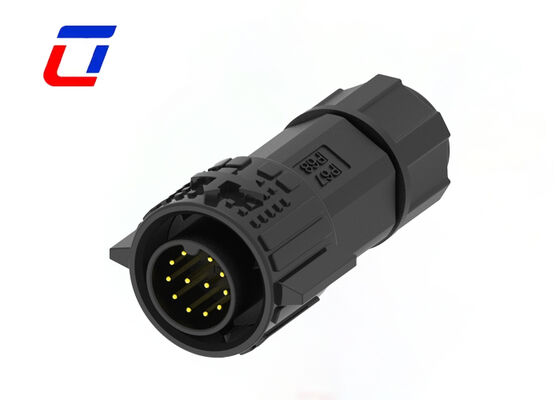

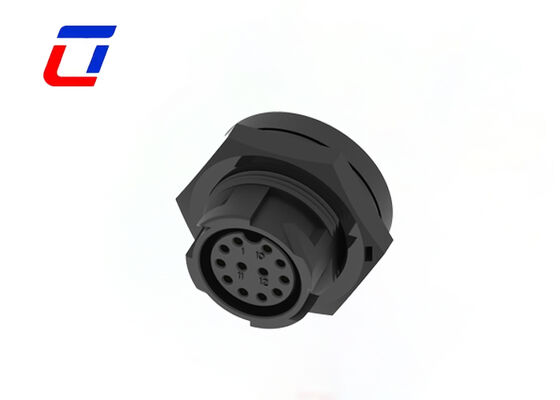

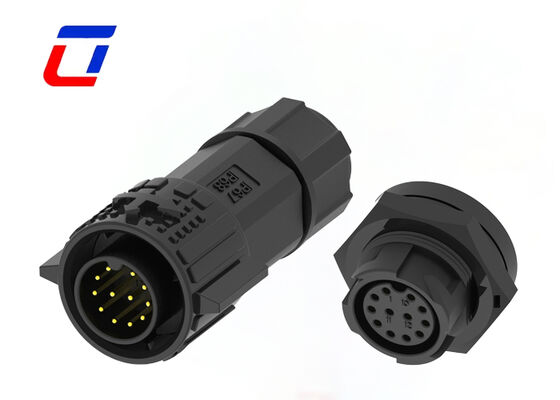

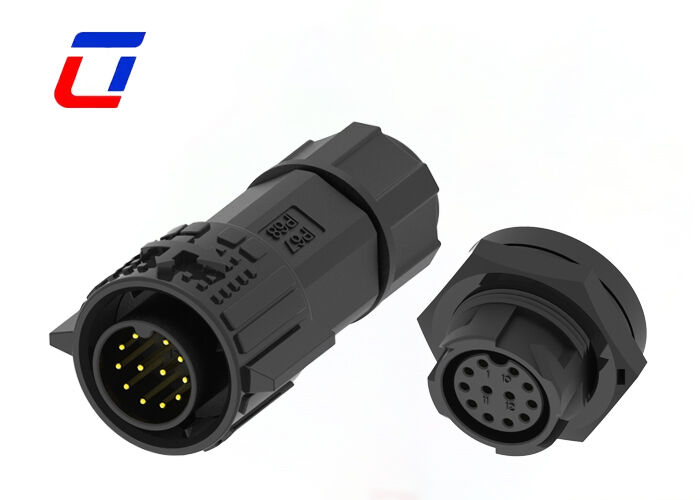

M19 12 Pin Panel Mount Connector Waterproof Quick Disconnect Wire To Board Connectors

Product Overview

Waterproof Plug And Socket 12 Pin IP67 M19 Circular Connectors specifically developed for reliable operation in wet environments. Features an IP67 dust and waterproof rating, corrosion-resistant housing, and secure 12-pin connectivity to guarantee stable signal and power transmission.

This connector enables easy mating and installation with excellent durability for long-term service in industrial equipment, outdoor electronics, lighting systems, and marine devices. Ideal for demanding environments that require robust, moisture-proof electrical connections.

Specialized for various power applications, the connector adopts a user-friendly push-locking system that automatically locks in one second, simplifying operation procedures. The integrated design of power and signal in one set is increasingly popular in space-constrained applications.

Key Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Specifications

Number of Poles	12 Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Specifications

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Do you accept other payment currencies besides USD?

A: Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q: What payment methods do you accept?

A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
