PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Pin:	10Pin	Material:	Nylon
Current Rating:	5A	Rated Voltage:	300V
Gender:	Male To Female	Contact Material:	Brass Gold-Plated
Highlight:	PA66 M19 waterproof cable connector , 10 pin IP67 rated plug , push pull socket connector

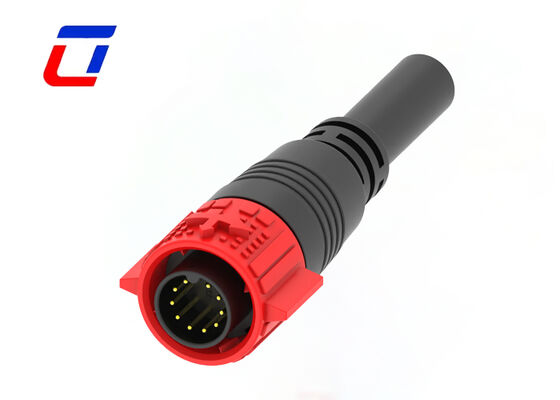

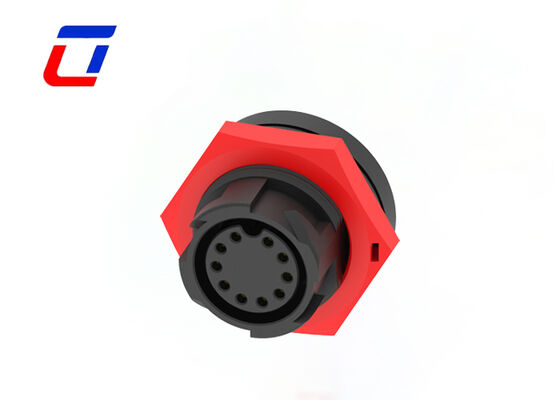

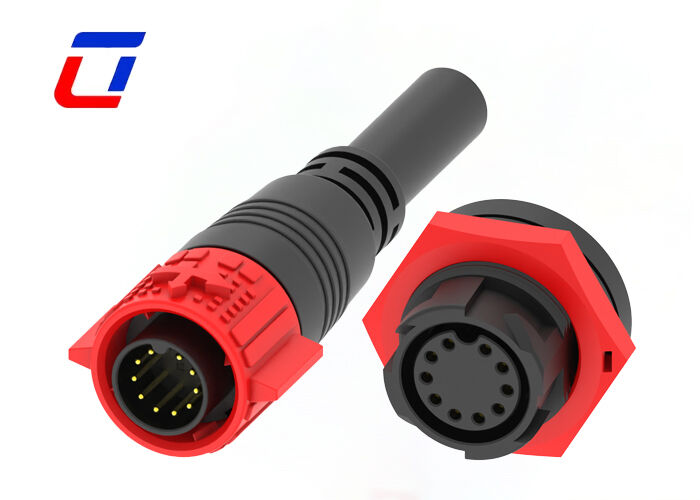

PA66 M19 Push Pull Cable Connectors 10 Pin IP67 Rated Plug And Socket Connector

Product Overview

IP67 M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors designed for reliable signal transmission in demanding outdoor environments.

Key Features

M19 circular structure with male-female plug design for outdoor low-power signal transmission
10Pin multi-channel layout for parallel transmission of multiple signal groups
Precise positioning to prevent signal misconnection
Integrated waterproof sealing with IP67 rating when mated
Weather-resistant PA66 engineering plastic shell
Wide temperature tolerance: -40℃ to +105℃
UV-resistant and anti-aging construction
Brass gold-plated pin cores for low contact resistance
Snap-on male-female connection with firm locking mechanism
Vibration and drop resistant design

Electrical Parameters

Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Configuration Options

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions: both wire to wire and wire to board options
Cable assembly service supported with custom options available
OEM/ODM services welcome

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Specifications

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: How can I get samples?

A: We are pleased to offer samples, with freight costs to be covered by the customer. Please provide your courier account number and detailed address for immediate shipment.

Q: Are your products certified? What certifications do you have?

A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
