IP67 Waterproof Power Cable Connector M19 2Pin Yellow Molded Push Lock Connectors
M19 2Pin 20A Push Lock Power Waterproof Circular Connectors
Main Features
- Push lock quick easy release system
- Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
- 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
- 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
- Field assembly version: both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
Technical Specifications
Core Parameters
Designed with M19 specification, 2-pin configuration accurately adapted to low-power power transmission scenarios; rated voltage 300V, combined with molding process and push-lock structure, ensuring tight connection without loosening and stable power output.
IP67 Waterproof Protection
Integrated injection molding sealing design with IP67 protection level, which can effectively resist water immersion, heavy rain, moisture and dust intrusion. Suitable for outdoor open-air, humid low-lying and other harsh working conditions, ensuring safe and reliable power transmission.
Power Scenario Adaptation
Tailor-made for power cable docking, widely used in low-power power transmission scenarios such as outdoor small power supply equipment, portable electrical power supply, security equipment power supply, garden irrigation equipment, and small motor control lines.
Molded Quality Assurance
The shell is made of high-strength nylon by injection molding, with firm structure, impact resistance and strong weather resistance; the pins adopt gold-plated copper core process, with excellent electrical conductivity, oxidation resistance and corrosion resistance; the overall sealing performance is good, which can effectively extend the outdoor service life.
Push Lock + Molding Integration
The injection molding process firmly integrates the cable with the connector, reducing the risk of loosening; the push-lock quick-locking design allows docking and fixing without professional tools, with efficient and convenient installation. At the same time, it improves vibration resistance and adapts to the needs of mobile power equipment.
| Product Type Features |
Connector System: Cable-to-Cable
Sealable: Yes
Connector & Contact Terminates To: Wire & Cable
Circular Connector Type: Plug, socket
Shell Type: Plastic Shell
Product Type: Connector Kit
|
| Electrical Characteristics |
Number of Poles: 2
Current Rating: 20A max
Voltage Rating: 600VAC max
Durability Voltage: 2500VAC @ 60 s
|
| Body Features |
Shell Material: PA66
Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic
Hermetically Sealed: Yes
Entry Style: Side
Environmental Protection Type: Elastomer Sealed, Hermetically Sealed
O-Ring Material: Elastomer Sealed, Hermetically Sealed
Environmental Protection: Yes
|
| Usage Conditions |
Operating Temperature Range: -40°C to 105°C
IP Water Sealing Level: IP67
IP Dust Sealing Level: 6
Durability Rating (Cycles): 250, 251
UL Flammability Rating: UL 94V-0
|
Application Industries
- Communications Application
- Product coding machines
- Inventory product coding
- Inkjet systems
- Solar System
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Communications equipment
- Heavy machinery

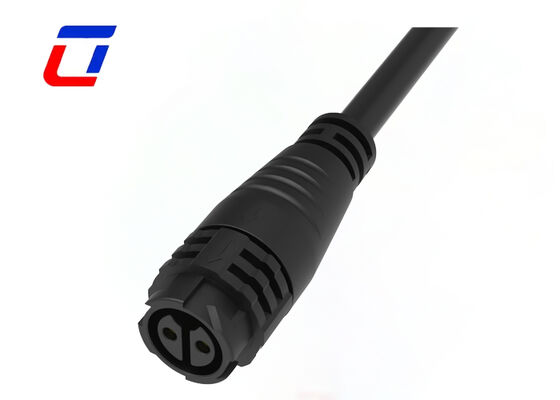

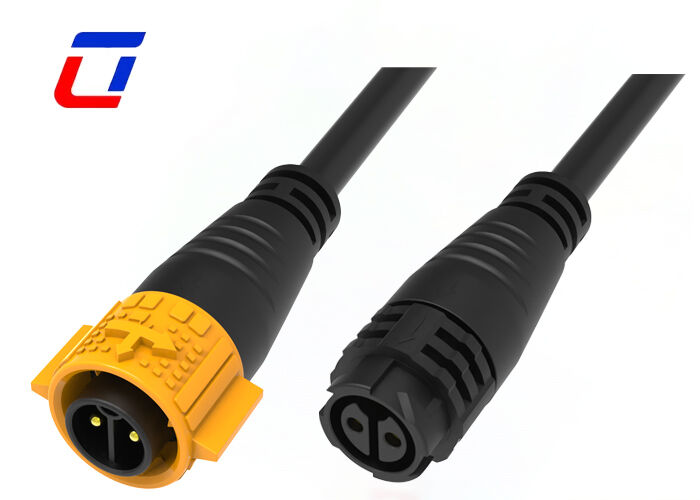

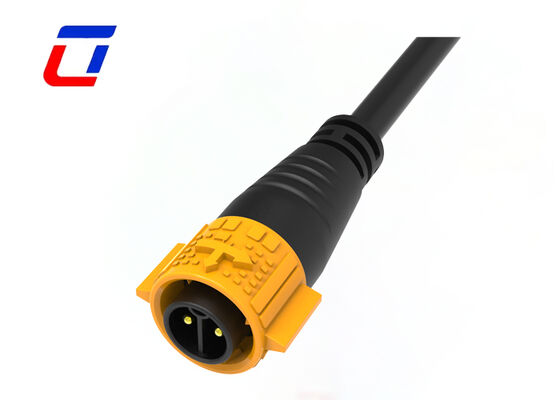

Product Images
Frequently Asked Questions
How can I get samples?
It's my honor to offer you samples, and the freight should be paid by yourself. You can let me know your courier number and your detail address, then I can send you sample at once.
Are your products certified? What certifications do you have?
All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
What shipping methods do you offer? How long is the delivery time?
We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
