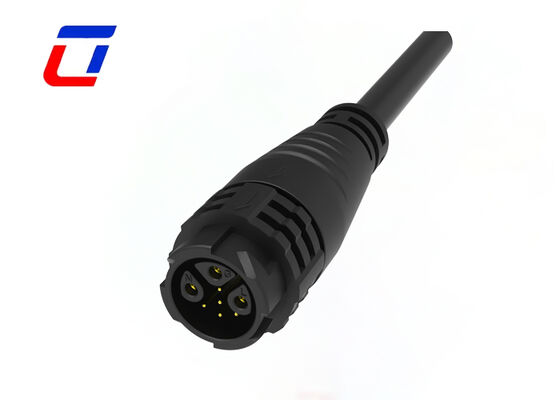

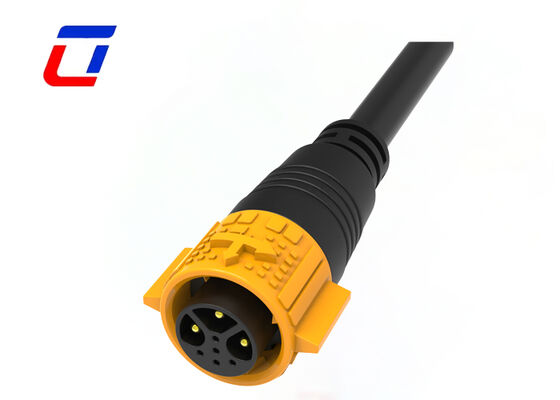

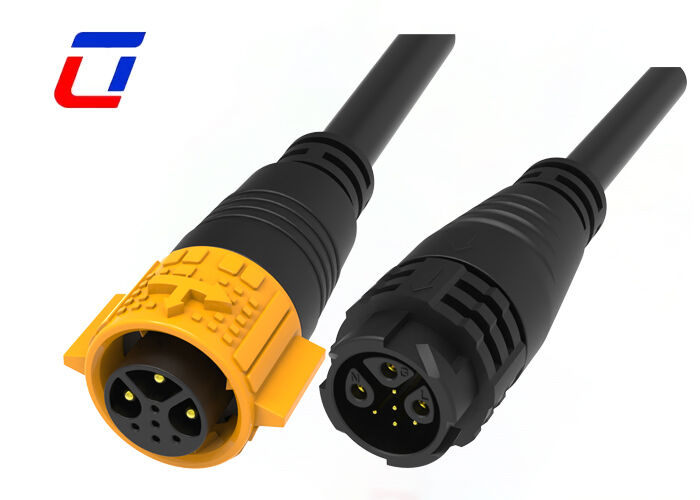

M19 3+5 Pin Male Female Connectors Quick Release Circular Multi Pin Connectors

Product Overview

The M19 3+5 Pin 15A IP67 Waterproof Circular Data Cable Connector is an industrial-grade product designed for synchronous transmission of data and power. Adopting a zoned structure of 3-pin main power + 5-pin data signal, it features 15A high current carrying capacity and IP67 all-round protection.

Key Advantages

Composite pin independent channel design prevents interference between power and multi-channel data transmission
Quick-release + automatic locking dual structure for operational convenience and connection firmness
Anti-vibration and anti-accidental disconnection design
High-quality weather-resistant engineering plastic housing
High-conductivity copper alloy contacts with gold plating
Male-female quick docking design for easy installation

Electrical Specifications

Parameter	Specification
Number of Poles	3+5 Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Specifications

Parameter	Specification
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Configuration Options

Power-only options: 2Pin, 3Pin, 4Pin, 5Pin
Power + Signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
Field assembly versions: wire-to-wire and wire-to-board options
Cable assembly service supported with customization available
OEM/ODM services welcome
