20A M19 Waterproof Outdoor Electrical Connectors Industrial 3 Pin Male To Female

Product Details:

Place of Origin:	China
Brand Name:	Ulinkcon
Certification:	CE/Rohs/TUV/UL
Model Number:	M19

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time:	3~6working days
Payment Terms:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Supply Ability:	100000 pairs Montly

Contact Now

Detailed Product Description

Gender:	Male To Female	Material:	PA66 And Brass Gold Plated
Current Rating:	20A	Rated Voltage:	300V
Flame-resistant Rating:	UL94-V0	Protection Level:	IP67
Highlight:	20A waterproof power connector , industrial 3 pin electrical connector , male to female waterproof connector

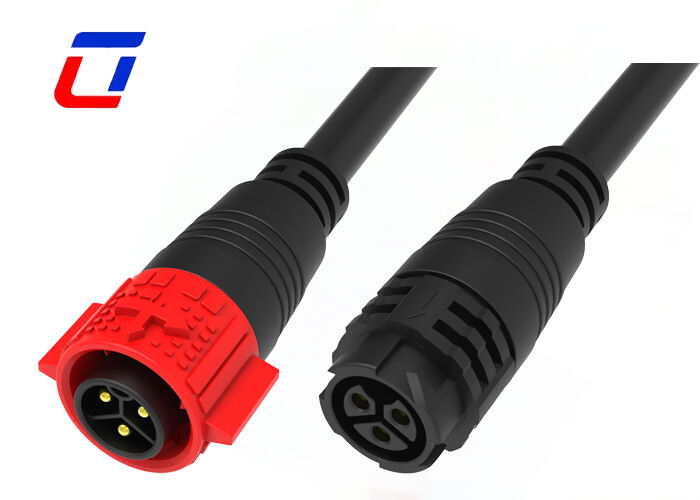

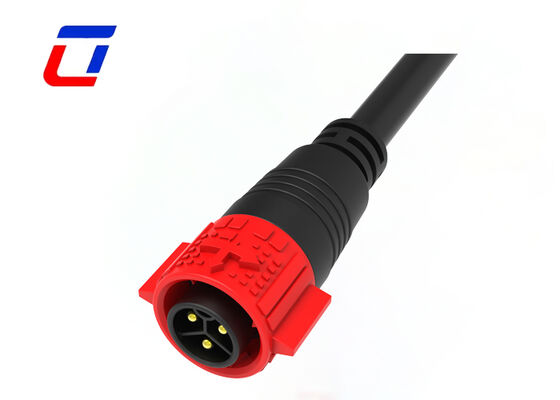

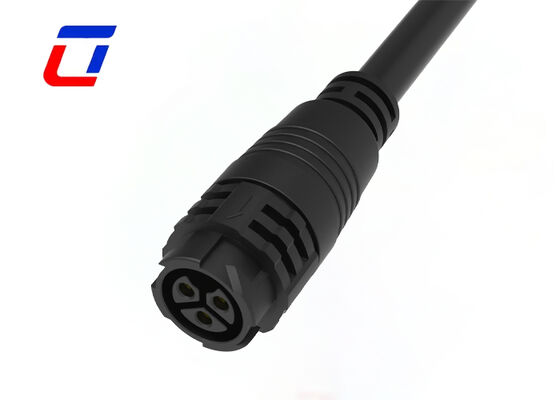

20A M19 Waterproof Outdoor Electrical Connectors Industrial 3 Pin Male To Female

Product Overview

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Industrial Production

Key Features

Item Name: M19 Waterproof Cable Connector
Specifications: Straight male-female mating, elbow male-female mating, front-mounted wire-to-board, rear-mounted wire-to-board, integrated injection molding
Coupling Way: Self-locking
Pins Number: 2-22 pins
Plug: Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof Grade: IP67/IP68
Connector Type: Assembly lock screw; Assembly welding; Injection molding with cable
Wire Gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring Range Assembled: 6.0mm~16mm; Molding 6.0mm~16.5mm
Durability: 3000 times
Applicable Temperature: -40℃~105℃

Technical Specifications

Electrical Parameters	Value
Number of Poles	3 pin waterproof wire connector
Current Rating	20A max.
Voltage Rating	300VAC max.
Durability Voltage	1500VAC @ 60 s.
Technical Parameters	Value
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone
Operation Parameters	Value
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²
